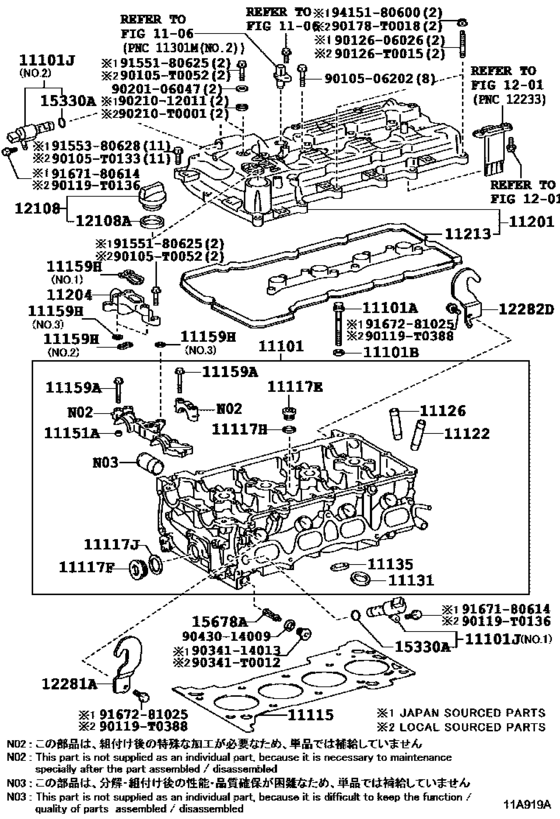

Cylinder Head ([11.2015 - ] (1511- )1TRFE,2TRFE) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-0C080
Head Sub-Assy, Cylinder
[11.2015 -] 1TRFE..TGN140..PHL,TH,VN |
11101-0C080 |
— | ||
|
11101A
|
11101A
90910-02187 Bolt(For Cylinder Head Set)[11.2015 -] 1TRFE,2TRFE..TGN14# |
90910-02187 |
from US $4.30 |
||
|
11101B
|
11101B
90560-T0015
Washer, Plate(For Cylinder Head Set)
[11.2015 -] 1TRFE,2TRFE..TGN14# |
90560-T0015 |
— | ||
|
11101J
|
11101J
15330-0C010 Valve Assy, Camshaft Timing Oil Control[11.2015 -] 1TRFE,2TRFE..TGN14# NO.1:REFER ILLUST. |
15330-0C010 |
US $68.54 |
||
|
11101J
|
11101J
15330-0C020 Valve Assy, Camshaft Timing Oil Control[11.2015 -] 1TRFE,2TRFE..TGN14# NO.2:REFER ILLUST. |
15330-0C020 |
US $194.55 |
||
| replacement | |||||
|
11101J
|
11101J
15330-75040 Valve Assy, Camshaft Timing Oil Control[11.2015 -] 1TRFE,2TRFE..TGN14# NO.2:REFER ILLUST. |
15330-75040 |
from US $59.83 |
||
|
11115
|
11115
11115-0C030 Gasket, Cylinder Head[11.2015 -] 1TRFE..TGN140 (L) |
11115-0C030 |
US $42.82 |
||
|
11115
|
11115
11115-75070 Gasket, Cylinder Head[11.2015 -] 1TRFE..TGN140 (J) |
11115-75070 |
from US $45.96 |
||
|
11117E
|
11117E
90341-20002 Plug, W/head Taper Screw, No.1[11.2015 -] 1TRFE,2TRFE..TGN14# |
90341-20002 |
from US $3.02 |
||
|
11117F
|
11117F
90341-T0009
Plug, W/head Straight Screw, No.2
[11.2015 -] 1TRFE,2TRFE..TGN14# |
90341-T0009 |
— | ||
|
11117H
|
11117H
90430-T0010
Gasket(For Water Hole)
[11.2015 -] 1TRFE,2TRFE..TGN14# |
90430-T0010 |
— | ||
|
11117J
|
11117J
90430-32004 Gasket(For Cylinder Head Screw Plug)[11.2015 -] 1TRFE,2TRFE..TGN14# |
90430-32004 |
US $1.51 |
||
|
11122
|
11122
11122-75020 Bush, Intake Valve Guide[11.2015 -] 1TRFE,2TRFE..TGN14# STD |
11122-75020 |
from US $8.33 |
||
|
11122
|
11122
11123-75020 Bush, Intake Valve Guide[11.2015 -] 1TRFE,2TRFE..TGN14# O/S 0.05 |
11123-75020 |
from US $7.43 |
||
|
11126
|
11126
11122-75020 Bush, Intake Valve Guide[11.2015 -] 1TRFE,2TRFE..TGN14# STD |
11122-75020 |
from US $8.33 |
||
|
11126
|
11126
11123-75020 Bush, Intake Valve Guide[11.2015 -] 1TRFE,2TRFE..TGN14# O/S 0.05 |
11123-75020 |
from US $7.43 |
||
|
11131
|
11131
11131-0C040
Seat, Intake Valve
[11.2015 -] 1TRFE..TGN140 STD |
11131-0C040 |
— | ||
|
11131
|
11131
11132-75150 Seat, Intake Valve[11.2015 -] 1TRFE..TGN140 O/S 0.03 |
11132-75150 |
US $9.46 |
||
|
11135
|
11135
11135-0C010
Seat, Exhaust Valve
[11.2015 -] 1TRFE..TGN140 STD |
11135-0C010 |
— | ||
|
11135
|
11135
11136-75080 Seat, Exhaust Valve[11.2015 -] 1TRFE..TGN140 O/S 0.03 |
11136-75080 |
US $10.77 |
||
|
11151A
|
11151A
90253-T0004
Pin, Ring(For Camshaft Bearing Cap Setting)
[11.2015 -] 1TRFE,2TRFE..TGN14# L=7,OD=10 |
90253-T0004 |
— | ||
|
11159A
|
11159A
90119-T0268
Bolt(For Head To Camshaft Bearing Cap)
[11.2015 -] 1TRFE,2TRFE..TGN14# |
90119-T0268 |
— | ||
|
11159H
|
11159H
11159-0C010
Gasket, Camshaft Bearing Cap Oil Hole
[11.2015 -] 1TRFE,2TRFE..TGN14# (L),NO.1 |
11159-0C010 |
— | ||
|
11159H
|
11159H
11159-75010 Gasket, Camshaft Bearing Cap Oil Hole[11.2015 -] 1TRFE,2TRFE..TGN14# (J),NO.1 |
11159-75010 |
from US $3.18 |
||
|
11159H
|
11159H
1115A-0C010
Gasket, Camshaft Bearing Cap Oil Hole
[11.2015 -] 1TRFE,2TRFE..TGN14# (L),NO.2 |
1115A-0C010 |
— | ||
|
11159H
|
11159H
1115A-75010 Gasket, Camshaft Bearing Cap Oil Hole[11.2015 -] 1TRFE,2TRFE..TGN14# (J),NO.2 |
1115A-75010 |
from US $3.14 |
||
|
11159H
|
11159H
1115B-0C010
Gasket, Camshaft Bearing Cap Oil Hole
[11.2015 -] 1TRFE,2TRFE..TGN14# (L),NO.3 |
1115B-0C010 |
— | ||
|
11159H
|
11159H
1115B-75010 Gasket, Camshaft Bearing Cap Oil Hole[11.2015 -] 1TRFE,2TRFE..TGN14# (J),NO.3 |
1115B-75010 |
from US $3.22 |
||
|
11201
|
11201
11201-0C050
Cover Sub-Assy, Cylinder Head
[11.2015 -] 1TRFE,2TRFE..TGN14# (L) |
11201-0C050 |
— | ||
|
11201
|
11201
11201-75080 Cover Sub-Assy, Cylinder Head[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
11201-75080 |
from US $118.80 |
||
|
11204
|
11204
11204-0C010
Connector Sub-Assy, Cylinder Head Cover
[11.2015 -] 1TRFE,2TRFE..TGN14# (L) |
11204-0C010 |
— | ||
|
11204
|
11204
11204-75010 Connector Sub-Assy, Cylinder Head Cover[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
11204-75010 |
US $33.20 |
||
|
11213
|
11213
11213-0C020
Gasket, Cylinder Head Cover
[11.2015 -] 1TRFE,2TRFE..TGN14# (L) |
11213-0C020 |
— | ||
|
11213
|
11213
11213-75050 Gasket, Cylinder Head Cover[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
11213-75050 |
from US $15.76 |
||
|
12108
|
12108
12180-0H020 Cap Sub-Assy, Oil Filler[11.2015 -] 1TRFE,2TRFE..TGN14# (L); 2GDFTV..GUN142;1GDFTV..GUN143..TH;1GDFTV..GUN143..INDP,PHLP |
12180-0H020 |
US $9.24 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
12180-38010 |
from US $11.47 |
||
|
12108A
|
12108A
90080-43027 Gasket(For Oil Filler Cap)[11.2015 -] 1TRFE,2TRFE..TGN14# (L); 2GDFTV..GUN142;1GDFTV..GUN143..TH;1GDFTV..GUN143..INDP,PHLP |
90080-43027 |
US $1.56 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
90430-35001 |
from US $1.17 |
||
|
12281A
|
12281A
12281-0C050
Hanger, Engine, No.1
[11.2015 -] 1TRFE,2TRFE..TGN14# |
12281-0C050 |
— | ||
|
12282D
|
12282D
12281-0C050
Hanger, Engine, No.1
[11.2015 -] 1TRFE,2TRFE..TGN14# |
12281-0C050 |
— | ||
|
15330A
|
15330A
90068-14041 Ring, O(For Cam Timing Oil Control Valve)[11.2015 -] 1TRFE,2TRFE..TGN14# |
90068-14041 |
US $3.05 |
||
|
15678A
|
15678A
15678-0C010
Filter, Oil Control Valve
[11.2015 -] 1TRFE,2TRFE..TGN14# (L) |
15678-0C010 |
— | ||
|
15678A
|
15678A
15678-21010 Filter, Oil Control Valve[11.2015 -] 1TRFE,2TRFE..TGN14# (J) |
15678-21010 |
from US $5.15 |
||
|
90105T0052
|
90105T0052
90105-T0052
New Genuine Part
|
90105-T0052 |
— | ||
|
90105T0133
|
90105T0133
90105-T0133
New Genuine Part
|
90105-T0133 |
— | ||
|
90119T0136
|
90119T0136
90119-T0136
New Genuine Part
|
90119-T0136 |
— | ||
|
90119T0388
|
90119T0388
90119-T0388
Bolt, Washer
|
90119-T0388 |
— | ||
|
90126T0015
|
90126T0015
90126-T0015
Bolt, Stud(Manifold To Throttle Body)
|
90126-T0015 |
— | ||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.76 |
||
|
90210T0001
|
90210T0001
90210-T0001
Washer, Seal(For Cylinder Head Cover)
|
90210-T0001 |
— | ||
|
90341T0012
|
90341T0012
90341-T0012
Plug, W/head Taper Screw, No.2
|
90341-T0012 |
— | ||
|
9010506202
|
9010506202
90105-06202 Bolt(For Cylinder Head Cover) |
90105-06202 |
from US $0.84 |
||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.64 |
||
|
9020106047
|
9020106047
90201-06047 New Genuine Part |
90201-06047 |
US $1.43 |
||
|
9021012011
|
9021012011
90210-12011 Washer, Seal(For Cylinder Head Cover)SEAL(FOR CYLINDER HEAD COVER) |
90210-12011 |
US $1.43 |
||
|
9034114013
|
9034114013
90341-14013 Plug, W/head Taper Screw, No.1 |
90341-14013 |
US $2.15 |
||
|
9043014009
|
9043014009
90430-14009 Gasket(For Cylinder Head Screw Plug) |
90430-14009 |
from US $0.84 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.64 |
||
|
9155380628
|
9155380628
91553-80628 BOLT FLANGE |
91553-80628 |
from US $0.76 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.64 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.13 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
