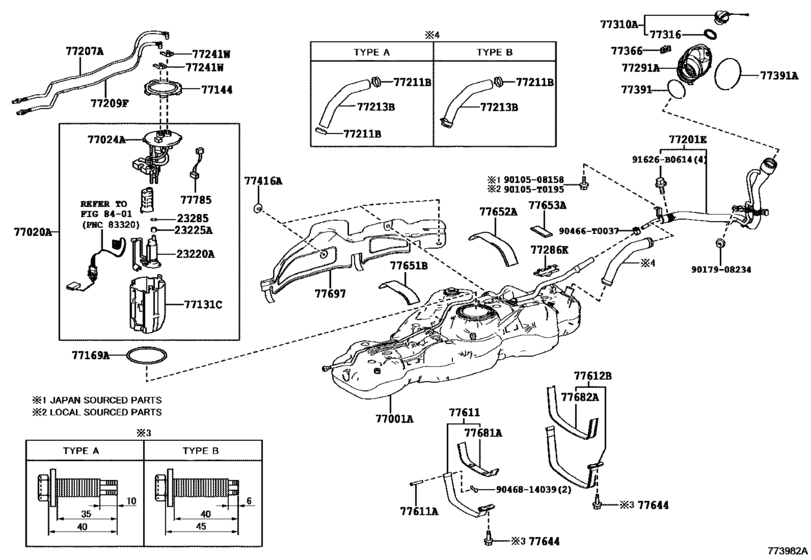

Fuel Tank & Tube ([11.2015 - ] FUEL TANK (1511- )20V..VN ; (1511- )20E,20G..MA,VN ; (1511- )TGN140..IDNP,PHLP) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23220A
|
23220A
23220-0C180
Pump Assy, Fuel W/filter
[11.2015 - 01.2016] 1TRFE,2TRFE..TGN14# |
23220-0C180 |
— | ||
| replacement | |||||
|
23220A
|
23220A
23220-0C181 Pump Assy, Fuel W/filter[11.2015 - 01.2016] 1TRFE,2TRFE..TGN14# |
23220-0C181 |
US $247.26 |
||
|
23220A
|
23220A
23220-0C181 Pump Assy, Fuel W/filter[02.2016 -] 1TRFE,2TRFE..TGN14#..IDNP,INDP |
23220-0C181 |
US $247.26 |
||
|
23225A
|
23225A
23225-0V030
Spacer, Fuel Pump
[11.2015 -] 1TRFE..TGN140..20V..VN;1TRFE..TGN140..(20E,20G)..(MA,VN);1TRFE,2TRFE..TGN14#..IDNP ,INDP,PHLP |
23225-0V030 |
— | ||
|
23285
|
23285
90301-T0064
Ring, O(For Fuel Pump)
[11.2015 -] 1TRFE,2TRFE..TGN14#..IDNP,INDP;1GDFTV..GUN143..IDNP..(PHL,TH);2GDFTV..GUN142..(24, 24G,24Q,24V)..(GCC,IDN,SA) |
90301-T0064 |
— | ||
|
77001A
|
77001A
77001-0K340
Tank Sub-Assy, Fuel
[11.2015 -] TGN140..IDNP |
77001-0K340 |
— | ||
|
77020A
|
77020A
77020-0K040
Tube Assy, Fuel Suction W/pump & Gage
[11.2015 -] TGN140..IDNP |
77020-0K040 |
— | ||
|
77024A
|
77024A
77024-0K130 Plate Sub-Assy, Fuel Suction[11.2015 -] TGN14#..IDNP,INDP |
77024-0K130 |
US $39.04 |
||
|
77131C
|
77131C
77131-0K160 Sub-Tank, Fuel, No.1[11.2015 -] TGN14#..IDNP,INDP |
77131-0K160 |
US $17.84 |
||
|
77144
|
77144
77144-0K040 Retainer, Fuel Pump Gauge[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77144-0K040 |
US $18 |
||
|
77169A
|
77169A
77169-0K030
Gasket, Fuel Suction Tube Set
[11.2015 -] TGN140..20V..VN;TGN14#..IDNP,INDP,PHLP;TGN140..(20E,20G)..(MA,VN) |
77169-0K030 |
— | ||
|
77201E
|
77201E
77201-KK020
Pipe Sub-Assy, Fuel Tank Filler
[11.2015 -] TGN140..(20E,20G)..MA;TGN140..(IDNP,PHLP,VNP)..(20E,20G,20Q,20V,N) |
77201-KK020 |
— | ||
|
77207A
|
77207A
77204-0K090
Tube Sub-Assy, Fuel Return
[11.2015 -] TGN140..20V..VN;TGN14#..IDNP,INDP,PHLP;TGN140..(20E,20G)..(MA,VN) |
77204-0K090 |
— | ||
|
77209F
|
77209F
77209-0K150
Tube Sub-Assy, Fuel Tank Main
[11.2015 -] TGN140..20V..VN;TGN14#..IDNP,INDP,PHLP;TGN140..(20E,20G)..(MA,VN) |
77209-0K150 |
— | ||
|
77211B
|
77211B
90460-46005 Clamp (For Fuel Filler Pipe)[11.2015 -] TGN14#..GCC,GEN,LA TYPE B:REFER ILLUST.; TGN140..(20E,20G)..MA;GUN142..(5F,6FC)..(24,24G,24Q,24V,24Z,G,N)..(GCC,IDN,IND,SA) ;GUN143,TGN140..(20E,20G,20Q,20V,28E,28G,28V,28Z,N)..(IDN,IND,PHL,TH,VN) |
90460-46005 |
from US $2.69 |
||
|
77213B
|
77213B
77213-KK020
Hose, Fuel Tank To Filler Pipe
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) TYPE A:REFER ILLUST. |
77213-KK020 |
— | ||
|
77213B
|
77213B
77213-KK051
Hose, Fuel Tank To Filler Pipe
[11.2015 -] TGN140..20V..VN;TGN14#..(20E,20G,27,27G,27SR,27SRV)..(GCC,LA,MA,VN);GUN142..(5F,6F C)..(24,24G,24Q,24V,24Z,G,N)..(GCC,IDN,IND,SA);GUN143,TGN140..(20,20E,20G,20Q,20V, 28E,28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH) TYPE B:REFER ILLUST. |
77213-KK051 |
— | ||
|
77241W
|
77241W
77241-0K010
Clip, Tube Joint
[11.2015 -] TGN140..20V..VN;TGN14#..IDNP,INDP,PHLP;TGN140..(20E,20G)..(MA,VN) |
77241-0K010 |
— | ||
|
77286K
|
77286K
77286-0K180
Clamp, Fuel Tube, No.2
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77286-0K180 |
— | ||
|
77291A
|
77291A
77291-0K050
Shield, Fuel Tank Filler Pipe
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
77291-0K050 |
— | ||
|
77310A
|
77310A
77300-0K010 Cap Assy, Fuel Tank[11.2015 -] TGN140..20V..VN;TGN14#..IDNP,INDP,PHLP;TGN140..(20E,20G)..(MA,VN) |
77300-0K010 |
US $31.80 |
||
|
77316
|
77316
77316-0K020
Gasket, Fuel Tank Cap
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77316-0K020 |
— | ||
|
77366
|
77366
77360-30080 Spring Assy, Fuel Filler Opening Lid[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77360-30080 |
from US $3.45 |
||
|
77391
|
77391
77391-0K010 Ring, Fuel Inlet BoxFUEL INLET BOX [11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77391-0K010 |
US $2.48 |
||
|
77391A
|
77391A
77391-0K170
Ring, Fuel Inlet Box
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77391-0K170 |
— | ||
|
77416A
|
77416A
77512-0K010 Bracket, Fuel Tank[11.2015 -] TGN140..20V..VN;GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA);TGN14#..(20E,20G,27,27G,27S R,27SRV,27V,27Z)..(GCC,IND,LA,MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28 V,N)..(GEN,IDN,PHL,TH) |
77512-0K010 |
US $0.84 |
||
|
77611
|
77611
77601-KK020
Band, Fuel Tank
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77601-KK020 |
— | ||
|
77611A
|
77611A
77653-0K041 Pin (For Fuel Tank Band)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142..(5F,6FC)..(IDN,IND);GUN143,TGN1 4#..(20,20E,20G,20Q,20V,27G,27V,27Z,28E,28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH) |
77653-0K041 |
US $13.08 |
||
|
77612B
|
77612B
77602-KK010
Band, Fuel Tank, No.2
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77602-KK010 |
— | ||
|
77644
|
77644
77644-35030 Bolt, Fuel Tank[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142..(5F,6FC)..(IDN,IND);GUN143,TGN1 4#..(20,20E,20G,20Q,20V,27G,27V,27Z,28E,28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH) TYPE A:REFER ILLUST. |
77644-35030 |
from US $1.44 |
||
|
77644
|
77644
90119-10983
Bolt, Fuel Tank
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142..(5F,6FC)..(IDN,IND);GUN143,TGN1 4#..(20,20E,20G,20Q,20V,27G,27V,27Z,28E,28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH) (J),TYPE B:REF ILL. |
90119-10983 |
— | ||
|
77644
|
77644
90119-A0249
Bolt, Fuel Tank
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142..(5F,6FC)..(IDN,IND);GUN143,TGN1 4#..(20,20E,20G,20Q,20V,27G,27V,27Z,28E,28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH) (L),TYPE B:REF ILL. |
90119-A0249 |
— | ||
|
77651B
|
77651B
77651-0K050
Cushion, Fuel Tank
[11.2015 -] TGN140..20V..VN;GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA);TGN14#..(20E,20G,27,27G,27S R,27SRV,27V,27Z)..(GCC,IND,LA,MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28 V,N)..(GEN,IDN,PHL,TH) |
77651-0K050 |
— | ||
|
77652A
|
77652A
77654-0K060
Cushion, Fuel Tank, No.2
[11.2015 -] TGN140..20V..VN;GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA);TGN14#..(20E,20G,27,27G,27S R,27SRV,27V,27Z)..(GCC,IND,LA,MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28 V,N)..(GEN,IDN,PHL,TH) |
77654-0K060 |
— | ||
|
77653A
|
77653A
77653-0K060
Cushion, Fuel Tank, No.3
[11.2015 -] TGN140..20V..VN;GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA);TGN14#..(20E,20G,27,27G,27S R,27SRV,27V,27Z)..(GCC,IND,LA,MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28 V,N)..(GEN,IDN,PHL,TH) |
77653-0K060 |
— | ||
|
77681A
|
77681A
77681-KK010
Seat, Fuel Tank Band
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77681-KK010 |
— | ||
|
77682A
|
77682A
77682-KK010
Seat, Fuel Tank Band, No.2
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
77682-KK010 |
— | ||
|
77697
|
77697
77697-0K060
Insulator, Fuel Tank Heat, No.1
[11.2015 -] TGN140..20V..VN;GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA);TGN14#..(20E,20G,27,27G,27S R,27SRV,27V,27Z)..(GCC,IND,LA,MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28 V,N)..(GEN,IDN,PHL,TH) |
77697-0K060 |
— | ||
|
77785
|
77785
77785-0K050
Harness, Fuel Pump
[11.2015 -] TGN14#..IDNP,INDP |
77785-0K050 |
— | ||
|
90105T0195
|
90105T0195
90105-T0195
New Genuine Part
|
90105-T0195 |
— | ||
|
90466T0037
|
90466T0037
90466-T0037
CLIP HOSE
|
90466-T0037 |
— | ||
|
91626B0614
|
91626B0614
91626-B0614 BOLT, W/WASHER |
91626-B0614 |
US $1.08 |
||
|
9010508158
|
9010508158
90105-08158 Plug(For Fuel Sub-Tank) |
90105-08158 |
from US $1.05 |
||
|
9017908234
|
9017908234
90179-08234 NUT |
90179-08234 |
from US $0.82 |
||
|
9046814039
|
9046814039
90468-14039 CLIP |
90468-14039 |
US $1.43 |
||
