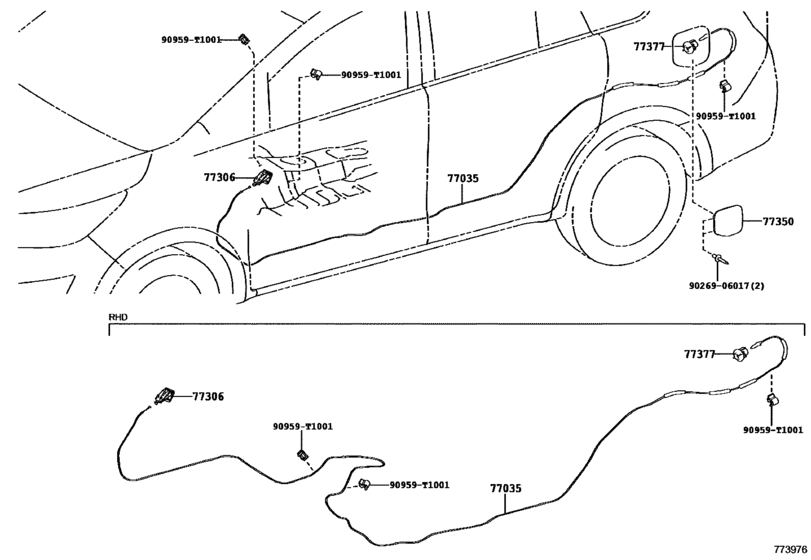

Fuel Tank & Tube ([11.2015 - ] FUEL LID OPENER (1511-1707)GUN142..TH ; (1511- )20V..VN ; (15 11- )20E,20G..MA,VN ; (1511- )GUN143,TGN140..I DNP,INDP,PHLP) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77035
|
77035
77035-0K370
Cable Sub-Assy, Fuel Lid Lock Control
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..(IDNP,MAP) |
77035-0K370 |
— | ||
|
77306
|
77306
77306-0K090
Lever Sub-Assy, Fuel Lid Lock Open
[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
77306-0K090 |
— | ||
|
77350
|
77350
77350-0K060
Lid Assy, Fuel Filler Opening
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
77350-0K060 |
— | ||
|
77377
|
77377
77377-0K010 Retainer, Fuel Filler Opening Lid LockFUEL FILLER OPENING LID LOCK [11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
77377-0K010 |
from US $2.07 |
||
|
90959T1001
|
90959T1001
90959-T1001 CLAMP |
90959-T1001 |
US $1.44 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.17 |
