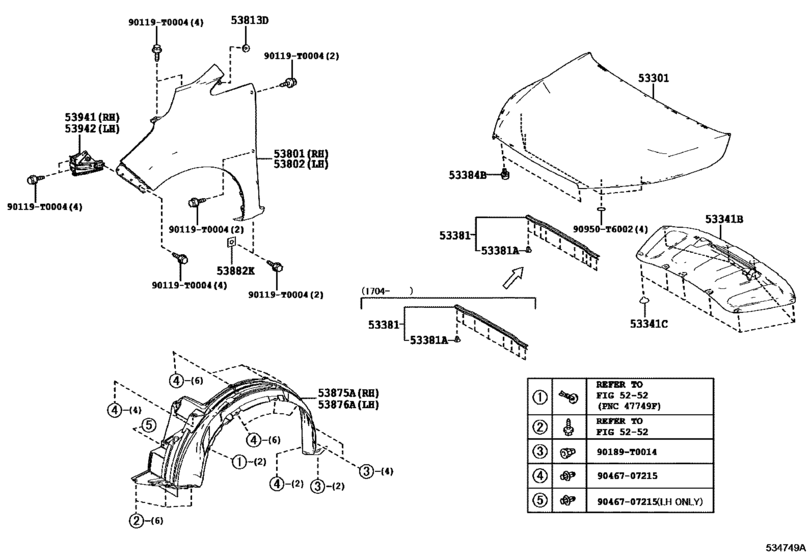

Hood & Front Fender ([11.2015 - ] (1511- )20E,27..GCC,MA,TH,VN) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-0K150 Hood Sub-Assy[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
53301-0K150 |
US $351.43 |
||
|
53341B
|
53341B
53341-0K130 Insulator, Hood[11.2015 -] GUN143..PHL,TH;TGN140..20V..VN;TGN140..(20E,20G)..(MA,TH,VN);GUN142,TGN141..(24,24 G,24Q,24V,27,27G)..(GCC,IDN,SA) |
53341-0K130 |
US $208.90 |
||
|
53341C
|
53341C
90467-T0014 Clip(For Hood Insulator)[11.2015 -] TGN140..20V..VN;GUN143..IND,PHL,TH;TGN140..(20E,20G)..(MA,TH,VN);GUN142,TGN141..(5 F,6FC)..(24,24G,24Q,24V,24Z,27,27G,27V,27Z,G,N)..(GCC,IDN,IND,SA) |
90467-T0014 |
US $0.90 |
||
|
53381
|
53381
53381-0K060 Seal, Hood To Radiator Support[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
53381-0K060 |
US $16.42 |
||
|
53381A
|
53381A
90467-T0013 Clip(For Headlamp Cover Seal)[04.2017 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
90467-T0013 |
US $0.90 |
||
|
53384B
|
53384B
53384-0K040 Cushion, Radiator Support[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
53384-0K040 |
from US $1.79 |
||
|
53801
|
53801
53801-0K080 Fender Sub-Assy, Front Rh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
53801-0K080 |
US $267.66 |
||
|
53802
|
53802
53802-0K080 Fender Sub-Assy, Front Lh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
53802-0K080 |
US $258.04 |
||
|
53813D
|
53813D
53813-47041
Extension, Front Fender
[11.2015 - 02.2016] GUN142,TGN14# |
53813-47041 |
— | ||
|
53813D
|
53813D
53813-71010 Extension, Front Fender[03.2016 -] TGN140..20V..VN;GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA);TGN14#..(20E,20G,27,27G,27S R,27SRV,27V,27Z)..(GCC,IND,LA,MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28 V,N)..(GEN,IDN,PHL,TH) |
53813-71010 |
US $2.87 |
||
|
53875A
|
53875A
53875-0K470
Liner, Front Fender, Rh
[11.2015 -] TGN140..RHD..5F..20E |
53875-0K470 |
— | ||
|
53876A
|
53876A
53876-0K440
Liner, Front Fender, Lh
[11.2015 -] TGN140..RHD..5F..20E |
53876-0K440 |
— | ||
|
53882K
|
53882K
53882-0K020
Seal, Front Fender
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
53882-0K020 |
— | ||
|
53941
|
53941
53941-0K060 Extension, Front End Panel, No.1 Rh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
53941-0K060 |
US $27.59 |
||
|
53942
|
53942
53942-0K050 Extension, Front End Panel, No.1 Lh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
53942-0K050 |
US $28.33 |
||
|
90119T0004
|
90119T0004
90119-T0004 BOLTWWSH |
90119-T0004 |
US $0.21 |
||
|
90189T0014
|
90189T0014
90189-T0014 GROMMET, SCREW |
90189-T0014 |
US $0.66 |
||
|
90950T6002
|
90950T6002
90950-T6002
Plug, Hole(For Hood)
|
90950-T6002 |
— | ||
|
9046707215
|
9046707215
90467-07215 Clip |
90467-07215 |
from US $0.80 |
