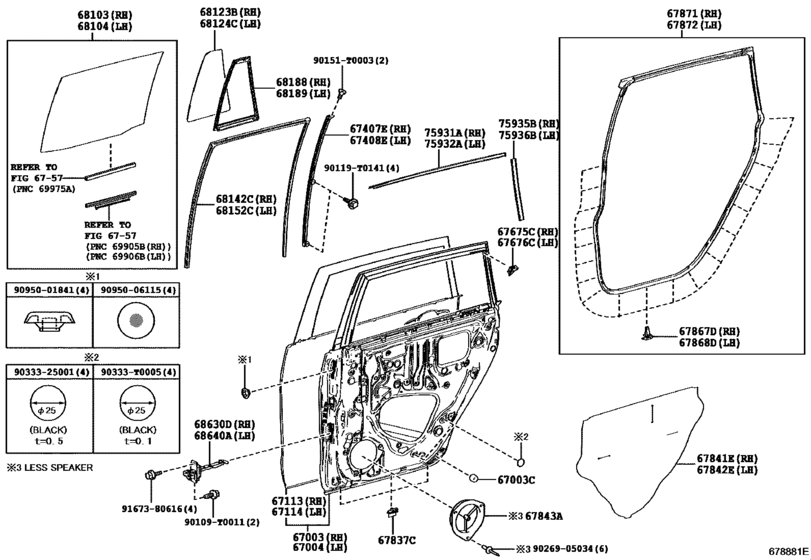

Rear Door Panel & Glass ([11.2015 - 07.2017] DOOR PANEL (1511-1707)GUN142,TGN141..GCC,IDN,LA,SA ; (1511- 1707)GUN143,TGN140..IDNP,PHLP,VNP ; (1511- )GUN14 2..IND,TH ; (1511- )GUN143,TGN14#..IND,MA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-0K130 Panel Sub-Assy, Rear Door, Rh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67003-0K130 |
US $606.33 |
||
|
67003C
|
67003C
90541-09131 Cushion, Front Door Panel[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
90541-09131 |
from US $1.79 |
||
|
67004
|
67004
67004-0K140 Panel Sub-Assy, Rear Door, Lh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67004-0K140 |
US $596.35 |
||
|
67113
|
67113
67113-0K060
Panel, Rear Door, Outer Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67113-0K060 |
— | ||
|
67114
|
67114
67114-0K060
Panel, Rear Door, Outer Lh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67114-0K060 |
— | ||
|
67407E
|
67407E
67407-0K040
Bar Sub-Assy, Rear Door Window Division, Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67407-0K040 |
— | ||
|
67408E
|
67408E
67408-0K040
Bar Sub-Assy, Rear Door Window Division, Lh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67408-0K040 |
— | ||
|
67675C
|
67675C
67675-0K020 Garnish, Rear Door Frame, No.2 RhREAR DOOR FRAME, NO.2 RH [11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
67675-0K020 |
US $2.18 |
||
|
67676C
|
67676C
67676-0K010 Garnish, Rear Door Frame, No.2 LhREAR DOOR FRAME, NO.2 LH [11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
67676-0K010 |
US $2.18 |
||
|
67837C
|
67837C
67837-0K110
Seal, Front Door Dust Proof
[11.2015 - 08.2016] GUN14#,TGN14#..IDNP,PHLP,VNP |
67837-0K110 |
— | ||
|
67837C
|
67837C
67837-0K111
Seal, Front Door Dust Proof
[09.2016 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
67837-0K111 |
— | ||
|
67841E
|
67841E
67841-0K110
Cover, Rear Door Service Hole, Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67841-0K110 |
— | ||
|
67842E
|
67842E
67842-0K130
Cover, Rear Door Service Hole, Lh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67842-0K130 |
— | ||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
67867-12150 |
from US $1.79 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
67867-12150 |
from US $1.79 |
||
|
67871
|
67871
67871-0K060
Weatherstrip, Rear Door, Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67871-0K060 |
— | ||
|
67872
|
67872
67872-0K060
Weatherstrip, Rear Door, Lh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67872-0K060 |
— | ||
|
68103
|
68103
68103-0K190
Glass Sub-Assy, Rear Door, Rh
[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
68103-0K190 |
— | ||
|
68104
|
68104
68104-0K190
Glass Sub-Assy, Rear Door, Lh
[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
68104-0K190 |
— | ||
|
68123B
|
68123B
68123-0K130
Glass, Rear Door Quarter Window, Rh
[11.2015 - 07.2017] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..IDNP..(24,24G,24Q,24V,27,27G,27SR,27SRV); GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
68123-0K130 |
— | ||
|
68124C
|
68124C
68124-0K130
Glass, Rear Door Quarter Window, Lh
[11.2015 - 07.2017] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..IDNP..(24,24G,24Q,24V,27,27G,27SR,27SRV); GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
68124-0K130 |
— | ||
|
68142C
|
68142C
68142-0K060
Run, Rear Door Glass, Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
68142-0K060 |
— | ||
|
68152C
|
68152C
68152-0K060
Run, Rear Door Glass, Lh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
68152-0K060 |
— | ||
|
68188
|
68188
68188-0K040
Weatherstrip, Rear Door Quarter Window, Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
68188-0K040 |
— | ||
|
68189
|
68189
68189-0K040 Weatherstrip, Rear Door Quarter Window, Lh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
68189-0K040 |
US $28.18 |
||
|
68630D
|
68630D
68630-0K070 Check Assy, Rear Door, Rh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
68630-0K070 |
US $61.13 |
||
|
68640A
|
68640A
68630-0K070 Check Assy, Rear Door, Rh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
68630-0K070 |
US $61.13 |
||
|
75931A
|
75931A
75931-0K020
Tape, Black Out, Outer Upper Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
75931-0K020 |
— | ||
|
75932A
|
75932A
75932-0K020 Tape, Black Out, Outer Upper Lh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
75932-0K020 |
US $13.86 |
||
|
75935B
|
75935B
75935-0K020
Tape, Black Out, Outer Rear Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
75935-0K020 |
— | ||
|
75936B
|
75936B
75936-0K020 Tape, Black Out, Outer Rear Lh[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
75936-0K020 |
US $10.04 |
||
|
90109T0011
|
90109T0011
90109-T0011
BOLT
|
90109-T0011 |
— | ||
|
90119T0141
|
90119T0141
90119-T0141
New Genuine Part
|
90119-T0141 |
— | ||
|
90151T0003
|
90151T0003
90151-T0003
New Genuine Part
|
90151-T0003 |
— | ||
|
90333T0005
|
90333T0005
90333-T0005 New Genuine Part |
90333-T0005 |
US $2.33 |
||
|
9026905034
|
9026905034
90269-05034 RIVET |
90269-05034 |
from US $1.21 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.29 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.97 |
||
|
9095006115
|
9095006115
90950-06115 COVER HOLE |
90950-06115 |
from US $0.68 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
