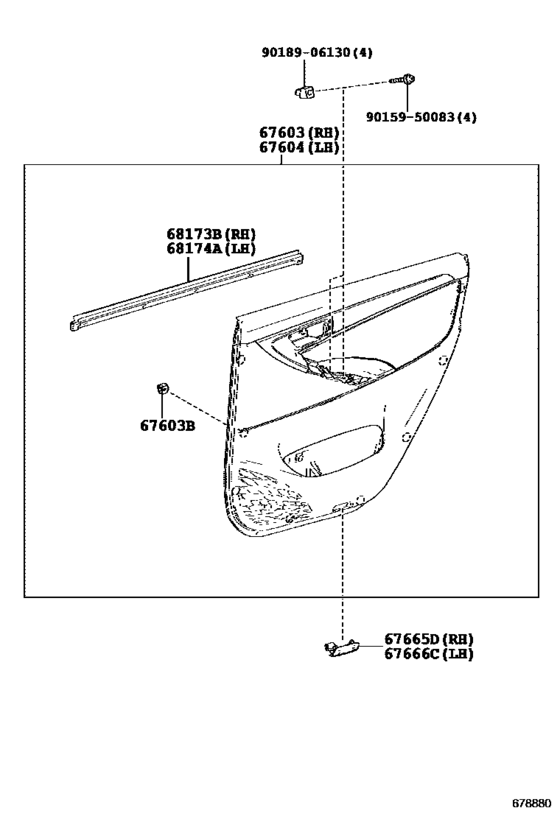

Rear Door Panel & Glass ([11.2015 - ] DOOR TRIM (1511- )20V..VN ; (1511- )20E,20G..MA,VN ; (1511- )GUN143,TGN140..IDNP,IND P,PHLP ; (1511- )GUN142,TGN141) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603
|
67603
67630-0KB10-C3
Board Sub-Assy, Rear Door Trim, Rh
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..IDNP..(20E,24,27,2 8E,N)..(GCC,LA,PHL) BLACK,TRIM2# |
67630-0KB10-C3 |
— | ||
|
67603
|
67603
67630-0KB10-C4
Board Sub-Assy, Rear Door Trim, Rh
[11.2015 -] GUN142..24G..IDN;GUN142,TGN14#..(20,20E,20G,24,27)..(GCC,GEN,IDN,LA,TH) BLACK / HAZEL BROWN,TRIM4# |
67630-0KB10-C4 |
— | ||
|
67603B
|
67603B
90467-T0019 Clip(For Door Trim)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
90467-T0019 |
US $0.90 |
||
|
67604
|
67604
67640-0KB10-C3
Board Sub-Assy, Rear Door Trim, Lh
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..IDNP..(20E,24,27,2 8E,N)..(GCC,LA,PHL) BLACK,TRIM2# |
67640-0KB10-C3 |
— | ||
|
67604
|
67604
67640-0KB10-C4
Board Sub-Assy, Rear Door Trim, Lh
[11.2015 -] GUN142..24G..IDN;GUN142,TGN14#..(20,20E,20G,24,27)..(GCC,GEN,IDN,LA,TH) BLACK / HAZEL BROWN,TRIM4# |
67640-0KB10-C4 |
— | ||
|
67665D
|
67665D
67665-0K020
Reflector, Front Door Trim, Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67665-0K020 |
— | ||
|
67666C
|
67666C
67665-0K020
Reflector, Front Door Trim, Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
67665-0K020 |
— | ||
|
68173B
|
68173B
68173-0K040
Weatherstrip, Rear Door Glass, Inner Rh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
68173-0K040 |
— | ||
|
68174A
|
68174A
68174-0K180
Weatherstrip, Rear Door Glass, Inner Lh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
68174-0K180 |
— | ||
|
9015950083
|
9015950083
90159-50083 SCREW |
90159-50083 |
from US $0.72 |
||
|
9018906130
|
9018906130
90189-06130 GROMMET SCREW |
90189-06130 |
US $1.97 |
