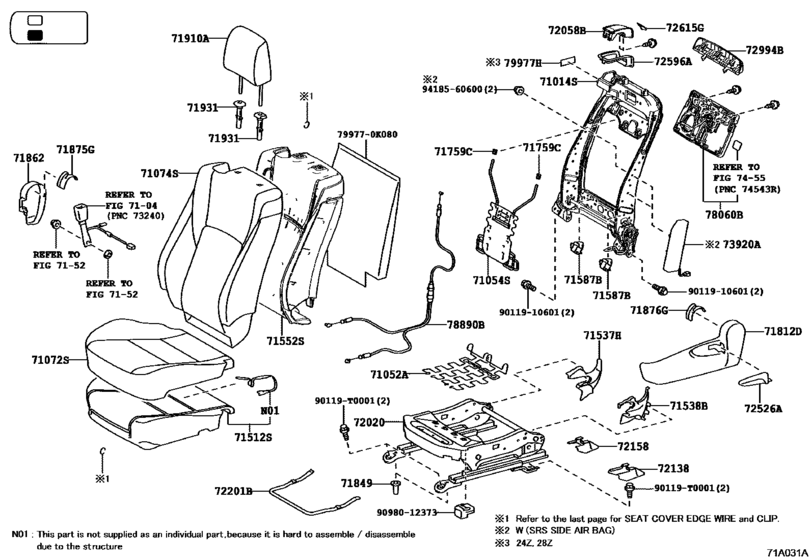

Seat & Seat Track ([11.2015 - ] PASSENGER, W(WALK-IN SEAT & TABLE) (1511- )GUN142,TGN140..RHD..IDNP ; (1604- )RHD..24Z,27Z,28V,28Z) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71014S
|
71014S
71014-0K120
Frame Sub-Assy, Front Seat Back, Lh
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..IDNP..(20E,24,27,2 8E,N)..(GCC,LA,PHL) |
71014-0K120 |
— | ||
|
71052A
|
71052A
71051-0K050
Spring Sub-Assy, Front Seat Cushion, Rh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71051-0K050 |
— | ||
|
71054S
|
71054S
71053-0K010
Spring Sub-Assy, Front Seat Back, Rh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71053-0K010 |
— | ||
|
71072S
|
71072S
71072-0KD90-C1
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.2015 -] TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN140..IDNP..(24G,N)..(IDN,PHL) BLACK,TRIM2# |
71072-0KD90-C1 |
— | ||
|
71072S
|
71072S
71072-0KD90-E1
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G) HAZEL BROWN,TRIM4# |
71072-0KD90-E1 |
— | ||
|
71072S
|
71072S
71072-0KT90-C1
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.2015 -] TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN140..IDNP..(24G,N)..(IDN,PHL) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLACK,TRIM2# |
71072-0KT90-C1 |
— | ||
|
71072S
|
71072S
71072-0KT90-E1
Cover, Front Seat Cushion, Lh(For Separate Type)
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),HAZEL BROWN,TRIM4# |
71072-0KT90-E1 |
— | ||
|
71074S
|
71074S
71074-0KJ40-C2
Cover, Front Seat Back, Lh(For Separate Type)
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..IDNP..(20E,24,27,2 8E,N)..(GCC,LA,PHL) BLACK,TRIM2# |
71074-0KJ40-C2 |
— | ||
|
71074S
|
71074S
71074-0KJ40-E2
Cover, Front Seat Back, Lh(For Separate Type)
[11.2015 -] GUN142..24G..IDN;GUN142,TGN14#..(20,20E,20G,24,27)..(GCC,GEN,IDN,LA,TH) HAZEL BROWN,TRIM4# |
71074-0KJ40-E2 |
— | ||
|
71074S
|
71074S
71074-0KN00-C1
Cover, Front Seat Back, Lh(For Separate Type)
[11.2015 -] TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(IDN,LA,P HL) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLACK,TRIM2# |
71074-0KN00-C1 |
— | ||
|
71074S
|
71074S
71074-0KN00-E1
Cover, Front Seat Back, Lh(For Separate Type)
[11.2015 -] TGN140..RHD..IDNP..(20,20E,20G);GUN142,TGN141..(24G,27)..(IDN,LA) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),HAZEL BROWN,TRIM4# |
71074-0KN00-E1 |
— | ||
|
71512S
|
71512S
71502-0K010
Pad, Front Seat Cushion, Lh (For Separate Type)
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G) |
71502-0K010 |
— | ||
|
71537H
|
71537H
71537-0K030-C0
Protector, Front Seat Cushion Edge, Rh(For Rh Seat)
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..IDNP BLACK,TRIM2#,4#; GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLAC K,TRIM2# |
71537-0K030-C0 |
— | ||
|
71538B
|
71538B
71538-0K010-C0
Protector, Front Seat Cushion Edge, Lh(For Rh Seat)
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..IDNP BLACK,TRIM2#,4#; GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLAC K,TRIM2# |
71538-0K010-C0 |
— | ||
|
71552S
|
71552S
71552-0K020
Pad, Front Seat Back, Lh(For Separate Type)
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..IDNP..(20E,24,27,2 8E,N)..(GCC,LA,PHL) |
71552-0K020 |
— | ||
|
71552S
|
71552S
71552-0KB00
Pad, Front Seat Back, Lh(For Separate Type)
[11.2015 -] TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(IDN,LA,P HL) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN) |
71552-0KB00 |
— | ||
|
71587B
|
71587B
71587-0K010
Protector, Front Seat Back Edge
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71587-0K010 |
— | ||
|
71759C
|
71759C
71759-0K010
Hook, Front Seat Back, No.1
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71759-0K010 |
— | ||
|
71812D
|
71812D
71812-0K050-C0
Shield, Front Seat Cushion, Lh
[11.2015 -] GUN14#..RHD..IDNP..6FC..(24,24Q,28G,28V) BLACK,TRIM2#,4#; TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLAC K,TRIM2#,4#; TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SRS AIRBAG-W( |
71812-0K050-C0 |
— | ||
|
71812D
|
71812D
71812-0K340-C0
Shield, Front Seat Cushion, Lh
[11.2015 -] GUN142..5F..24Q;TGN140..RHD..IDNP;GUN142..(24G,24V)..IDN BLACK,TRIM2#,4#; TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
71812-0K340-C0 |
— | ||
|
71849
|
71849
71848-0K010 Cap, Seat Adjuster Cover, Rh[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71848-0K010 |
US $0.43 |
||
|
71862
|
71862
71862-0K070-C0
Shield, Front Seat Cushion, Inner Lh
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..IDNP BLACK,TRIM2#,4# |
71862-0K070-C0 |
— | ||
|
71875G
|
71875G
71875-0K230-C0
Cover, Reclining Adjuster Inside, Rh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4#; GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W |
71875-0K230-C0 |
— | ||
|
71876G
|
71876G
71876-0K230-C0
Cover, Reclining Adjuster Inside, Lh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4#; GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W |
71876-0K230-C0 |
— | ||
|
71910A
|
71910A
71910-0K540-C0
Headrest Assy, Front Seat
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..IDNP..(20E,24,27,2 8E,N)..(GCC,LA,PHL) BLACK,TRIM2# |
71910-0K540-C0 |
— | ||
|
71910A
|
71910A
71910-0K540-E0
Headrest Assy, Front Seat
[11.2015 -] GUN142..24G..IDN;GUN142,TGN14#..(20,20E,20G,24,27)..(GCC,GEN,IDN,LA,TH) HAZEL BROWN,TRIM4# |
71910-0K540-E0 |
— | ||
|
71931
|
71931
71930-0K010-C0
Support, Front Seat Headrest
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) W(LOCK),BLACK,TRIM2#,4# |
71930-0K010-C0 |
— | ||
|
71931
|
71931
71931-0K010-C0
Support, Front Seat Headrest
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) W/O(LOCK),BLACK,TRIM2#,4# |
71931-0K010-C0 |
— | ||
|
72020
|
72020
72020-0K010
Adjuster Assy, Front Seat, Lh
[11.2015 -] GUN143,TGN140..RHD..IDNP..(20,20E,20G,20Q,20V,28G);GUN14#,TGN140..IDNP..(24,24G,24 Q,24V,N)..(IDN,PHL,SA) |
72020-0K010 |
— | ||
|
72138
|
72138
72137-0K070-C0
Cover, Seat Track, Outer Rh
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(IDNP,VNP)..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN 14#..(20E,24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) BLACK,TRIM2#,4# |
72137-0K070-C0 |
— | ||
|
72158
|
72158
72158-0K050-C0
Cover, Seat Track Bracket, Inner Lh
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(IDNP,VNP)..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN 14#..(20E,24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) BLACK,TRIM2#,4# |
72158-0K050-C0 |
— | ||
|
72201B
|
72201B
72211-0D210
Handle Sub-Assy, Seat Track Rh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
72211-0D210 |
— | ||
|
72526A
|
72526A
72526-0D300-C0
Handle, Reclining Adjuster Release, Lh
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..IDNP BLACK,TRIM2#,4#; GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLAC K,TRIM2# |
72526-0D300-C0 |
— | ||
|
73920A
|
73920A
73920-0K050 Air Bag Assy, Front Seat, Lh[11.2015 -] TGN140..20G..MA;GUN14#..RHD..IDNP..6FC..(24Q,28G);GUN14#,TGN14#..(20V,24,24Z,27Z,2 8V,28Z)..(IND,PHL,SA,TH,VN); TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN); TGN140..GEN SEAT COVER M |
73920-0K050 |
US $262.08 |
||
|
90119T0001
|
90119T0001
90119-T0001
BOLTWWSH
|
90119-T0001 |
— | ||
|
9011910601
|
9011910601
90119-10601 BOLT WWASHER |
90119-10601 |
US $1.61 |
||
|
9098012373
|
9098012373
90980-12373 Connector, Wiring Harness |
90980-12373 |
US $4.66 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.72 |
