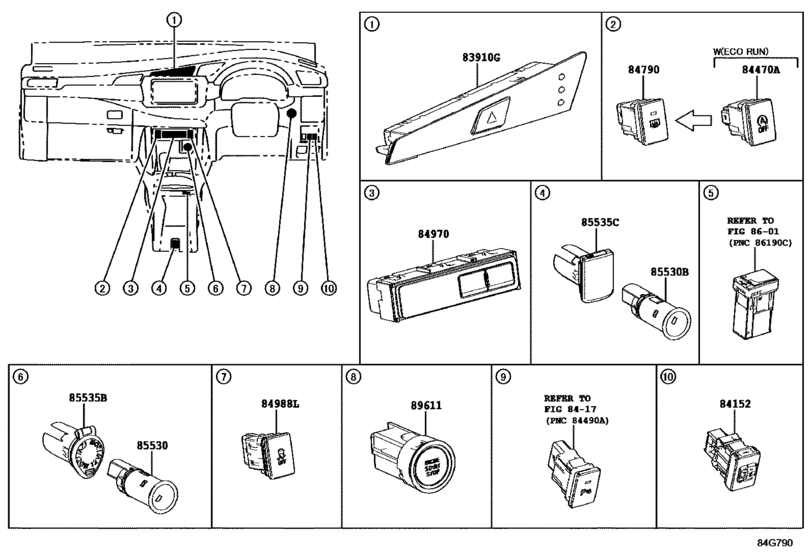

Switch & Relay & Computer ([11.2015 - ] INSTRUMENT PANEL (1511- )MA ; (1511- )RHD..IDNP,INDP) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-0K060
Clock Assy
[11.2015 -] GUN142,TGN140..(20G,24G)..(IND,MA);GUN142..(24,24Q,24V,24Z,G)..(IDN,IND,SA);GUN143 ,TGN14#..RHD..(20,20E,20Q,20V,27G,27V,27Z,28G,28V,28Z) |
83910-0K060 |
— | ||
|
84152
|
84152
84152-0K070
Switch, Headlamp Leveling
[11.2015 -] GUN142,TGN141..GCC,SA;GUN143,TGN140..(20E,28G)..TH; TGN141..LA HEADLAMP LEVELING DEVICE-WITH(MANUAL) |
84152-0K070 |
— | ||
|
84790
|
84790
84790-0K100
Switch Assy, Rear Window Defogger
[11.2015 -] TGN140..GEN,TH;GUN14#,TGN14#..LHD..IDNP..(20E,24,27,27SR,28E) |
84790-0K100 |
— | ||
|
84970
|
84970
84970-0K130
Switch Assy, Combination
[11.2015 -] TGN140..20V..VN;GUN142,TGN141..IDN,LA;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(2 0,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
84970-0K130 |
— | ||
|
84988L
|
84988L
84988-0K060
Switch, Vsc Off
[11.2015 -] GUN143..IDNP..28V..PHL;GUN14#..RHD..IDNP..6FC..(24Q,28G,28V); GUN142..5F..24Q;TGN14#..IDNP..(GEN,IDN,LA,PHL,TH);GUN14#..IDNP..(24,24G,24V,28E,28 G,N)..(IDN,PHL,SA) VEHICLE STABILITY CONTROL-W(*HSAC) |
84988-0K060 |
— | ||
|
85530
|
85530
85530-0K070 Socket Assy, Power Outlet, No.1[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
85530-0K070 |
US $26.93 |
||
|
85530B
|
85530B
85530-0K070 Socket Assy, Power Outlet, No.1[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
85530-0K070 |
US $26.93 |
||
|
85535B
|
85535B
85535-0K110-C0
Cover, Power Outlet Socket, No.1
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4# |
85535-0K110-C0 |
— | ||
|
85535C
|
85535C
85535-0K170
Cover, Power Outlet Socket, Rear
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
85535-0K170 |
— |
