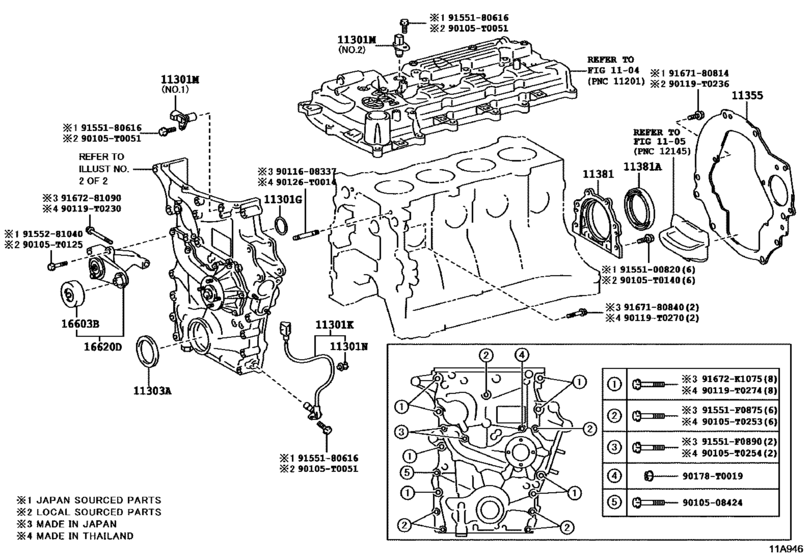

Timing Gear Cover & Rear End Plate ([11.2015 - ] (1511- )1TRFE,2TRFE) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20E
- ENGINE
- 1TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- TH
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301G
|
11301G
90301-T0021 Ring, O(For Timing Gear Case, Upper)[11.2015 -] 1TRFE,2TRFE..TGN14# |
90301-T0021 |
US $2.20 |
||
|
11301K
|
11301K
90919-05059 Sensor, Crank Position[11.2015 -] 1TRFE,2TRFE..TGN14# |
90919-05059 |
from US $83.64 |
||
|
11301M
|
11301M
90919-05061 Sensor, Cam Position[11.2015 -] 1TRFE,2TRFE..TGN14# NO.1 |
90919-05061 |
from US $69.38 |
||
|
11301M
|
11301M
90919-05073 Sensor, Camshaft PositionCRANK POSITION [11.2015 - 06.2016] 1TRFE,2TRFE..TGN14# NO.2 |
90919-05073 |
from US $69.38 |
||
|
11301M
|
11301M
90919-T5001
Sensor, Crank Position
[06.2016 -] 1TRFE,2TRFE..TGN14# (L),NO.2 |
90919-T5001 |
— | ||
|
11301N
|
11301N
90469-07018 Clamp[11.2015 -] 1TRFE,2TRFE..TGN14# |
90469-07018 |
US $1.46 |
||
|
11303A
|
11303A
90311-T0060
Seal, Oil(For Timing Gear Case Or Timing Chain Case)
[11.2015 -] 1TRFE,2TRFE..TGN14# |
90311-T0060 |
— | ||
|
11355
|
11355
11355-0C010
Plate, Rear End
[11.2015 -] 1TRFE,2TRFE..TGN14# |
11355-0C010 |
— | ||
|
11381
|
11381
11381-0C012
Retainer, Engine Rear Oil Seal
[11.2015 -] 1TRFE,2TRFE..TGN14# |
11381-0C012 |
— | ||
|
11381A
|
11381A
90311-T0058
Seal, Engine Rear Oil
[11.2015 -] 1TRFE,2TRFE..TGN14# |
90311-T0058 |
— | ||
|
16603B
|
16603B
16603-0C030 Pulley Sub-Assy, Idler[11.2015 - 05.2017] 1TRFE,2TRFE..TGN14# |
16603-0C030 |
US $46.90 |
||
|
16620D
|
16620D
16620-0C030
Tensioner Assy, V-Ribbed Belt
[11.2015 - 04.2017] 1TRFE,2TRFE..TGN14# |
16620-0C030 |
— | ||
|
90105T0051
|
90105T0051
90105-T0051
New Genuine Part
|
90105-T0051 |
— | ||
|
90105T0125
|
90105T0125
90105-T0125
Bolt(For Alternator)
|
90105-T0125 |
— | ||
|
90105T0140
|
90105T0140
90105-T0140
New Genuine Part
|
90105-T0140 |
— | ||
|
90105T0253
|
90105T0253
90105-T0253 BOLT, FLANGE |
90105-T0253 |
US $1.23 |
||
|
90105T0254
|
90105T0254
90105-T0254 BOLT, FLANGE |
90105-T0254 |
US $1.23 |
||
|
90119T0230
|
90119T0230
90119-T0230 New Genuine Part |
90119-T0230 |
US $2.77 |
||
|
90119T0236
|
90119T0236
90119-T0236
New Genuine Part
|
90119-T0236 |
— | ||
|
90119T0270
|
90119T0270
90119-T0270 BOLT, WWASHER |
90119-T0270 |
US $0.98 |
||
|
90119T0274
|
90119T0274
90119-T0274
New Genuine Part
|
90119-T0274 |
— | ||
|
90126T0014
|
90126T0014
90126-T0014
New Genuine Part
|
90126-T0014 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
||
|
91551F0875
|
91551F0875
91551-F0875 New Genuine Part |
91551-F0875 |
US $2.15 |
||
|
91551F0890
|
91551F0890
91551-F0890 New Genuine Part |
91551-F0890 |
US $2.15 |
||
|
91672K1075
|
91672K1075
91672-K1075 BOLT FLANGE |
91672-K1075 |
from US $1.77 |
||
|
9010508424
|
9010508424
90105-08424 New Genuine Part |
90105-08424 |
US $1.60 |
||
|
9011608337
|
9011608337
90116-08337 BOLT STUD |
90116-08337 |
US $3.58 |
||
|
9155100820
|
9155100820
91551-00820 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-00820 |
US $1.43 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.15 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
||
|
9167180840
|
9167180840
91671-80840 BOLT FLANGE |
91671-80840 |
from US $0.96 |
||
|
9167281090
|
9167281090
91672-81090 New Genuine Part |
91672-81090 |
US $3.40 |
