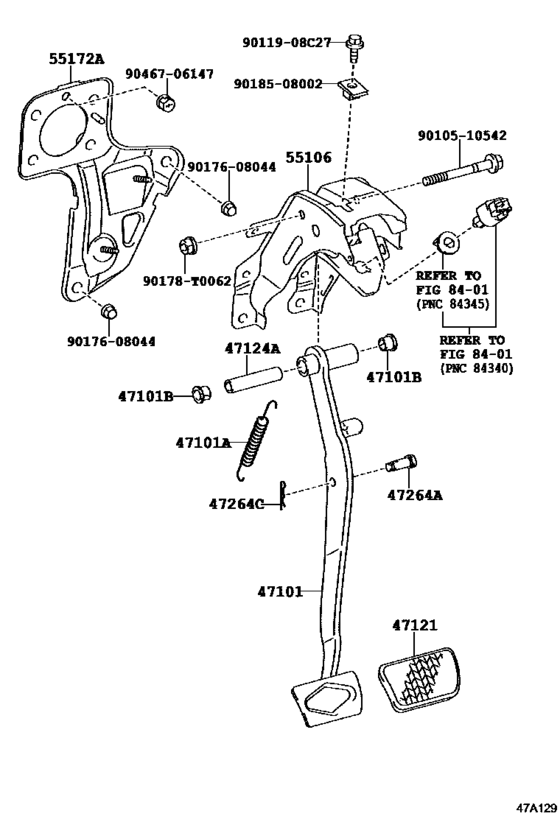

Brake Pedal & Bracket ([11.2015 - ] (1511- )RHD..6FC) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20Q
- ENGINE
- 1TRFE
- TRANSMISSION
- ATM
- PRODUCT
- IDNP
- DESTINATION
- IDN
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-KK030 Pedal Sub-Assy, Brake[11.2015 -] GUN14#,TGN14#..RHD..6FC |
47101-KK030 |
US $26.38 |
||
|
47101A
|
47101A
90507-T0002 Spring(For Brake Pedal Return)[11.2015 -] GUN14#,TGN14# |
90507-T0002 |
from US $2.62 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[11.2015 -] GUN14#,TGN14# |
90386-13015 |
from US $0.64 |
||
|
47121
|
47121
47121-02030
Pad, Brake Pedal
[11.2015 -] GUN14#,TGN14#..6FC |
47121-02030 |
— | ||
|
47124A
|
47124A
90387-10121 Collar, Clutch Pedal Shaft[11.2015 -] GUN14#,TGN14# |
90387-10121 |
US $5.24 |
||
|
47264A
|
47264A
47148-35010 Pin(For Brake Master Cylinder Push Rod)[11.2015 -] GUN14#,TGN14# |
47148-35010 |
US $4.89 |
||
|
47264C
|
47264C
90468-16012 Pin, Sub Seat Cushion Pin[11.2015 -] GUN14#,TGN14# |
90468-16012 |
from US $0.90 |
||
|
55106
|
55106
55106-KK030 Support Sub-Assy, Brake Pedal[11.2015 -] GUN14#,TGN14# |
55106-KK030 |
US $76.01 |
||
|
55172A
|
55172A
55172-KK010
Base, Brake Pedal Support
[11.2015 -] GUN14#,TGN14#..RHD |
55172-KK010 |
— | ||
|
90178T0062
|
90178T0062
90178-T0062 NUT FLANGE |
90178-T0062 |
US $1.40 |
||
|
9011908C27
|
9011908C27
90119-08C27 BOLT WWASHER |
90119-08C27 |
US $1.61 |
||
|
9010510542
|
9010510542
90105-10542
New Genuine Part
|
90105-10542 |
— | ||
|
9017608044
|
9017608044
90176-08044 NUT |
90176-08044 |
US $1.61 |
||
|
9018508002
|
9018508002
90185-08002 New Genuine Part |
90185-08002 |
US $2.62 |
||
|
9046706147
|
9046706147
90467-06147 Clip(For Cowl Side Trim) |
90467-06147 |
from US $1.07 |
