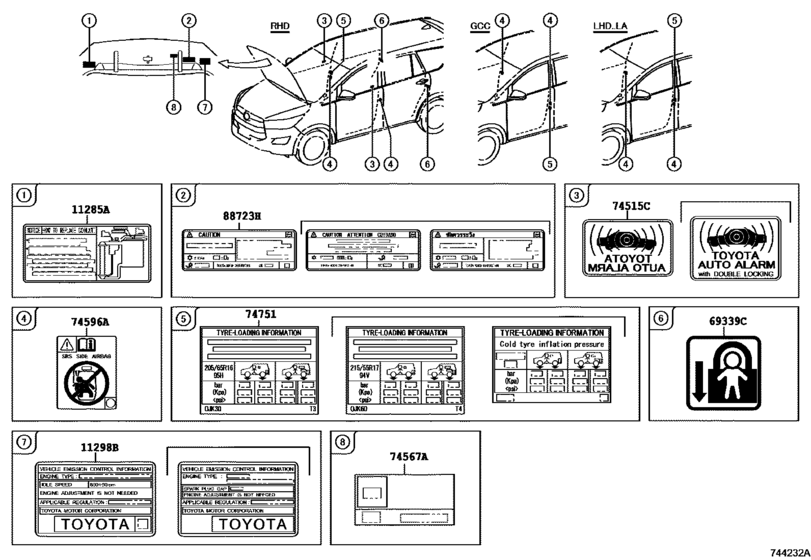

Caution Plate ([11.2015 - ] ENGINE ROOM & EXTERIOR (1511- )20V..VN ; (1511- )20E,20G..MA,VN ; (1511- )GUN143,TGN140..IDNP,IND P,PHLP ; (1511- )GUN142,TGN141) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20Q
- ENGINE
- 1TRFE
- TRANSMISSION
- ATM
- PRODUCT
- IDNP
- DESTINATION
- IDN
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69339C
|
69339C
69339-06060
Plate, Child Protector Lock Caution
[11.2015 - 12.2015] GUN142,TGN14# |
69339-06060 |
— | ||
|
69339C
|
69339C
69339-0K120
Label, Child Protector Information
[01.2016 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
69339-0K120 |
— | ||
|
74596A
|
74596A
74596-0K040
Label, Side Air Bag Caution
[11.2015 -] TGN140..20V..VN;GUN143,TGN140..(20G,28G)..(MA,TH);GUN14#..6FC..(24,24Q,28V)..(IDN, PHL,SA,TH); GUN142..5F..24Q;TGN140..IDNP,PHLP;TGN140..(20E,20G)..VN;GUN14#,TGN141..(24G,24V,27 ,27SR,27SRV,28E,28G,N)..(IDN,LA,PHL) SRS AIRBAG-W(DRIVER & PASSEN |
74596-0K040 |
— | ||
|
74751
|
74751
42661-0KJ30
Label, Tire Pressure Information
[11.2015 - 07.2017] GUN14#..IDNP..(24V,28V)..(IDN,PHL);GUN143..IDNP..(28E,28G,N)..(PHL,TH);GUN142,TGN1 4#..IDNP..(20,20E,20G,20Q,20V,24,24G,24Q,27,27G,27SR,27SRV,N) |
42661-0KJ30 |
— | ||
|
74751
|
74751
42661-0KJ60
Label, Tire Pressure Information
[11.2015 - 07.2017] GUN14#..(24V,28V)..TH; TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN142,TGN141..LHD..(24G,27G,27SRV) TIRE & DISC WHEEL-215/55R17 ALMINUM |
42661-0KJ60 |
— | ||
|
88723H
|
88723H
88723-0K230
Label, Cooler Service Caution
[11.2015 -] GUN143..IDNP..PHL;GUN142,TGN14#..IDNP..(20,20E,20G,20Q,20V,24,24G,24Q,24V,27,27G,N )..(GCC,GEN,IDN,PHL,SA); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL); TGN141..27..GCC FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTAL |
88723-0K230 |
— |
