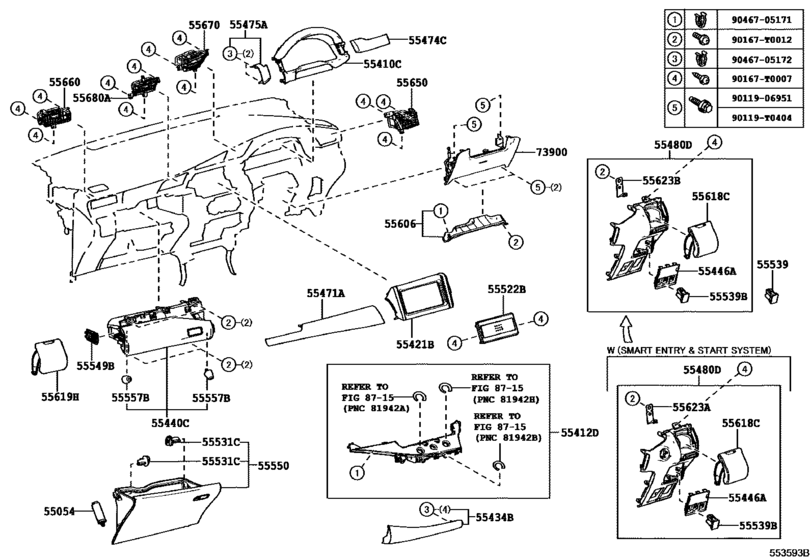

Instrument Panel & Glove Compartment ([11.2015 - ] (1511- )MA ; (1511- )RHD..IDNP,INDP) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20Q
- ENGINE
- 1TRFE
- TRANSMISSION
- ATM
- PRODUCT
- IDNP
- DESTINATION
- IDN
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-0K030 Stopper Sub-Assy, Glove Compartment Door[11.2015 - 04.2016] GUN142..SA,TH;GUN142..24G..GCC;GUN142,TGN14#..(20Q,20V,24Q,24V,27G,27SRV)..(GCC,ID N,LA) |
55054-0K030 |
US $12.97 |
||
|
55054
|
55054
55054-0K040
Stopper Sub-Assy, Glove Compartment Door
[04.2016 -] GUN143..IDNP..(28G,28V)..(PHL,TH);GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA,VN) ;GUN142,TGN14#..(IDNP,MAP,VNP)..(20G,24G,27G,27SRV)..(GCC,LA,MA,PHL,VN) |
55054-0K040 |
— | ||
|
55410C
|
55410C
55410-KK030-C0
Panel Assy, Instrument Cluster Finish
[11.2015 -] GUN142..IDN,SA;GUN143..28G..TH;GUN14#,TGN14#..RHD..(20,20E,20G,20Q,20V,24Z,27Z,28V ,28Z) BLACK,TRIM2#,4# |
55410-KK030-C0 |
— | ||
|
55421B
|
55421B
55421-KK030
Panel, Instrument Cluster Finish, Upper
[11.2015 - 08.2017] GUN142,TGN140..(20Q,20V,24Q,24V)..IDN |
55421-KK030 |
— | ||
|
55421B
|
55421B
55421-KK070
Panel, Instrument Cluster Finish, Upper
[11.2015 - 08.2017] GUN142,TGN140..(20V,24V)..IDN AUDIO-AM/FM & CD & *BT; TGN140..6FC..20G..IDN;GUN142,TGN140..(20Q,20V,24Q,24V)..IDN AUDIO-*DA & CD & *BT (OSEANIA SPEC); GUN142..6FC..24V..IDN AUDIO-*DA & DVD & *BT; GUN142,TGN140..(20Q,20V,24Q,24V)..IDN A |
55421-KK070 |
— | ||
|
55434B
|
55434B
55434-KK020-C0
Panel, Instrument Panel Finish, Lower Center
[11.2015 -] GUN142..IDN,SA;GUN143..28G..TH;GUN14#,TGN14#..RHD..(20,20E,20G,20Q,20V,24Z,27Z,28V ,28Z) BLACK,TRIM2#,4# |
55434-KK020-C0 |
— | ||
|
55440C
|
55440C
55440-KK010-C0
Box Assy, Instrument Panel
[11.2015 -] GUN142..IDN,SA;GUN143..28G..TH;GUN14#,TGN14#..RHD..(20,20E,20G,20Q,20V,24Z,27Z,28V ,28Z) BLACK,TRIM2#,4# |
55440-KK010-C0 |
— | ||
|
55446A
|
55446A
55446-KK050-C0
Base, Switch Hole, No.1
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..(20G,28G)..(MA,TH);GUN14#,TGN14#..RHD..(IDNP,INDP).. (20,20E,20G,20Q,20V,24Z,27Z,28V,28Z) BLACK,TRIM2#,4# |
55446-KK050-C0 |
— | ||
|
55471A
|
55471A
55471-KK010-D0
Ornament, Instrument Cluster Finish Panel
[11.2015 -] TGN140..20G..MA;GUN14#,TGN140..RHD..(20Q,24,24Q,24Z,28V) RED,TRIM2# |
55471-KK010-D0 |
— | ||
|
55471A
|
55471A
55471-KK010-E0
Ornament, Instrument Cluster Finish Panel
[11.2015 -] TGN140..20G..MA;GUN14#,TGN14#..RHD..(20Q,24,24Q,24Z,27Z,28V,28Z) ORANGE,TRIM4# |
55471-KK010-E0 |
— | ||
|
55474C
|
55474C
55474-KK010-D0
Garnish, Instrument Cluster Finish Panel, No.1
[11.2015 -] TGN140..20G..MA;GUN14#,TGN140..RHD..(20Q,24,24Q,24Z,28V) RED,TRIM2# |
55474-KK010-D0 |
— | ||
|
55474C
|
55474C
55474-KK010-E0
Garnish, Instrument Cluster Finish Panel, No.1
[11.2015 -] TGN140..20G..MA;GUN14#,TGN14#..RHD..(20Q,24,24Q,24Z,27Z,28V,28Z) ORANGE,TRIM4# |
55474-KK010-E0 |
— | ||
|
55475A
|
55475A
55475-KK010-D0
Garnish, Instrument Cluster Finish Panel, No.2
[11.2015 -] TGN140..20G..MA;GUN14#,TGN140..RHD..(20Q,24,24Q,24Z,28V) RED,TRIM2# |
55475-KK010-D0 |
— | ||
|
55475A
|
55475A
55475-KK010-E0
Garnish, Instrument Cluster Finish Panel, No.2
[11.2015 -] TGN140..20G..MA;GUN14#,TGN14#..RHD..(20Q,24,24Q,24Z,27Z,28V,28Z) ORANGE,TRIM4# |
55475-KK010-E0 |
— | ||
|
55480D
|
55480D
55480-KK010-C0
Panel Assy, Instrument Panel Finish, Lwr
[11.2015 -] TGN140..20G..MA;GUN14#,TGN140..RHD..(20Q,24Q,28V) BLACK,TRIM2#,4#; GUN142,TGN140..(20V,24V)..IDN WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM2#,4# |
55480-KK010-C0 |
— | ||
|
55531C
|
55531C
55531-KK030 Pin, Glove Door Stopper[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
55531-KK030 |
from US $2.26 |
||
|
55539
|
55539
55539-KK030-C0 Cover, Spare Switch Hole[11.2015 -] TGN140..IDNP..20G..PHL;TGN140..(MAP,PHLP)..(20E,20G,N);GUN143,TGN140..(20V,28G,28V )..(PHL,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA);GUN 14#,TGN14#..RHD..(IDNP,INDP)..(20,20E,20G,20Q,20V,24Z,27Z,28V,28Z) BLACK,TRIM |
55539-KK030-C0 |
from US $4.33 |
||
|
55539B
|
55539B
55539-KK030-C0 Cover, Spare Switch Hole[11.2015 -] GUN142..IDN,SA;TGN140..IDNP..20G..PHL;GUN143..(28G,28V)..(PHL,TH);TGN140..(PHLP,VN P)..(20E,20V);TGN140..(MAP,PHLP,VNP)..(20G,N);GUN14#,TGN14#..(20,20E,20G,20Q,20V,2 4Z,27,27SR,27SRV,27Z,28Z)..(GEN,IDN,IND,LA,TH) BLACK,TRIM2#,4# |
55539-KK030-C0 |
from US $4.33 |
||
|
55549B
|
55549B
55503-KK010 Cover, Glove Compartment Door Side[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G)..(GCC,IDN,IND,LA,SA) |
55503-KK010 |
from US $13.80 |
||
|
55550
|
55550
55550-KK040-C0
Door Assy, Glove Compartment
[11.2015 -] GUN142..IDN,SA;GUN143..28G..TH;GUN14#,TGN14#..RHD..(IDNP,INDP)..(20,20E,20G,20Q,20 V,24Z,27Z,28V,28Z) BLACK,TRIM2#,4# |
55550-KK040-C0 |
— | ||
|
55557B
|
55557B
55557-60050 Cushion, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
55557-60050 |
from US $0.82 |
||
|
55606
|
55606
55606-KK030
Cover Sub-Assy, Instrument Panel Under, No.1
[11.2015 -] GUN143,TGN140..RHD;GUN142,TGN141..IDN,IND,SA |
55606-KK030 |
— | ||
|
55618C
|
55618C
55618-KK010-C0
Holder, Instrument Panel Cup
[11.2015 -] GUN142..IDN,SA;TGN140..20G..MA;GUN143,TGN140..RHD..IDNP BLACK,TRIM2#,4# |
55618-KK010-C0 |
— | ||
|
55619H
|
55619H
55618-KK020-C0
Holder, Instrument Panel Cup
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..(IDNP,MAP) BLACK,TRIM2#,4# |
55618-KK020-C0 |
— | ||
|
55623A
|
55623A
55623-KK050
Spring, Instrument Panel Cup Holder, No.2
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
55623-KK050 |
— | ||
|
55623B
|
55623B
55623-KK030
Spring, Instrument Panel Cup Holder
[11.2015 -] GUN143,TGN140..RHD;GUN142,TGN141..IDN,IND,SA |
55623-KK030 |
— | ||
|
55650
|
55650
55650-0K140
Register Assy, Instrument Panel, No.1
[11.2015 -] TGN140..20G..MA;GUN142..(24,24Q,24V)..(IDN,SA);GUN143,TGN140..RHD..IDNP..(20Q,20V, 28G,28V) |
55650-0K140 |
— | ||
|
55660
|
55660
55660-0K130
Register Assy, Instrument Panel, No.2
[11.2015 -] TGN140..20G..MA;GUN142..(24,24Q,24V)..(IDN,SA);GUN143,TGN140..RHD..IDNP..(20Q,20V, 28G,28V) |
55660-0K130 |
— | ||
|
55670
|
55670
55670-0K150
Register Assy, Instrument Panel, No.3
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..(IDNP,MAP) |
55670-0K150 |
— | ||
|
55680A
|
55680A
55680-0K180
Register Assy, Instrument Panel, No.4
[11.2015 -] GUN142..IDN,SA;GUN143,TGN140..RHD..(IDNP,MAP) |
55680-0K180 |
— | ||
|
73900
|
73900
73900-0K030-C0
Air Bag Assy, Instrument Panel, Lower No.1
[11.2015 -] GUN142..IDN,SA;GUN143..28G..TH;GUN14#,TGN14#..RHD..(20,20E,20G,20Q,20V,24Z,27Z,28V ,28Z) BLACK,TRIM2#,4# |
73900-0K030-C0 |
— | ||
|
90119T0404
|
90119T0404
90119-T0404
New Genuine Part
|
90119-T0404 |
— | ||
|
90167T0007
|
90167T0007
90167-T0007 Screw,pan Tapping |
90167-T0007 |
from US $0.21 |
||
|
90167T0012
|
90167T0012
90167-T0012
Direct
|
90167-T0012 |
— | ||
| replacement | |||||
|
90167T0012
|
90167T0012
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
from US $0.62 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $1.08 |
||
