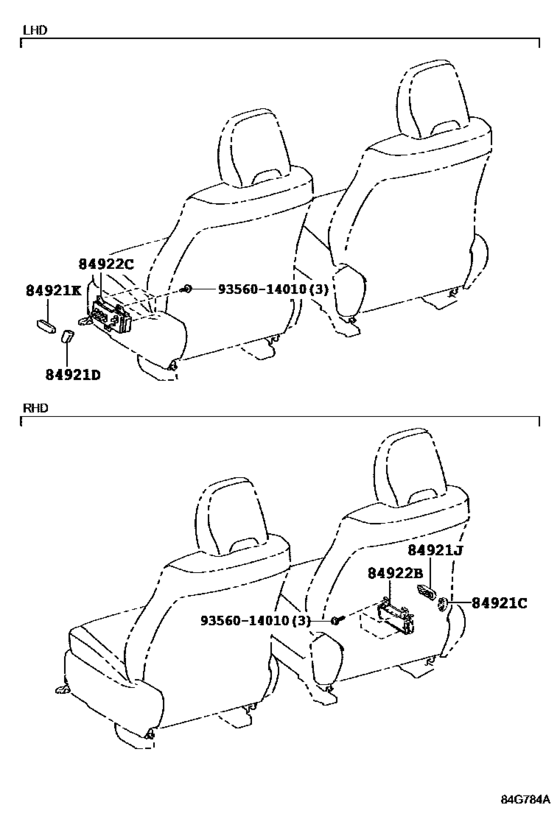

Switch & Relay & Computer ([11.2015 - ] SEAT (1511- )20V,24V..TH,VN ; (1511- )RHD..20Q, 24Q,24Z,27Z,28V,28Z) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20Q
- ENGINE
- 1TRFE
- TRANSMISSION
- ATM
- PRODUCT
- IDNP
- DESTINATION
- IDN
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84921C
|
84921C
84921-02120-C0
Knob, Power Seat Switch, Rh
[11.2015 -] GUN14#,TGN141..RHD..(24Z,27Z,28V,28Z) BLACK,TRIM2#,4#; GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4# |
84921-02120-C0 |
— | ||
|
84921J
|
84921J
84921-02080-C0
Knob, Power Seat Switch, Rh
[11.2015 -] GUN14#,TGN141..RHD..(24Z,27Z,28V,28Z) BLACK,TRIM2#,4#; GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4# |
84921-02080-C0 |
— | ||
|
84922B
|
84922B
84922-06150
Switch, Front Power Seat, Rh
[11.2015 -] GUN14#,TGN141..RHD..(24Z,27Z,28V,28Z); GUN142,TGN140..20Q,24Q SEAT COVER MATERIAL-LEATHER |
84922-06150 |
— | ||
|
9356014010
|
9356014010
93560-14010 SCREW |
93560-14010 |
US $1.08 |
