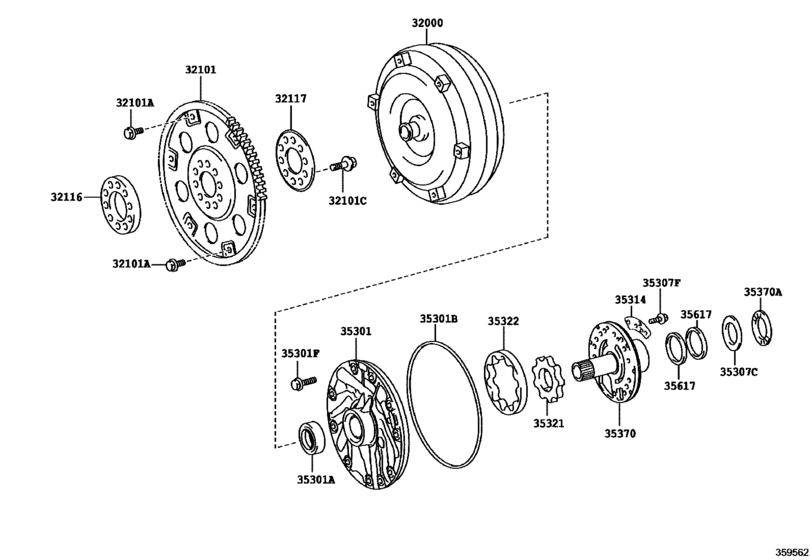

Torque Converter, Front Oil Pump & Chain (Atm) ([11.2015 - ] AC60E (1511- )TGN14#..6FC) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN140
- grade
- 20Q
- ENGINE
- 1TRFE
- TRANSMISSION
- ATM
- PRODUCT
- IDNP
- DESTINATION
- IDN
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- INNOVA
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-71080 Converter Assy, Torque[11.2015 -] TGN140..6FC |
32000-71080 |
US $1,235.76 |
||
|
32101
|
32101
32101-26010 Gear Sub-Assy, Drive Plate & Ring[11.2015 -] TGN14#..6FC |
32101-26010 |
from US $162.83 |
||
|
32101A
|
32101A
90119-09026 Bolt(For Drive Plate & Torque Converter Setting)[11.2015 -] TGN14#..6FC *9-1.25PX12.8-9,BLACK. |
90119-09026 |
from US $0.84 |
||
|
32101A
|
32101A
90119-09027 Bolt(For Drive Plate & Torque Converter Setting)[11.2015 -] TGN14#..6FC *9-1.25PX12.8-8.8,SILVER WHITE |
90119-09027 |
from US $0.78 |
||
|
32101C
|
32101C
90105-10276 Bolt, Hexagon(For Drive Plate Setting)[11.2015 -] TGN14#..6FC *10-1.25PX30-17.5 |
90105-10276 |
US $12.36 |
||
|
32116
|
32116
32116-26010 Spacer, Drive Plate, Front[11.2015 -] TGN14#..6FC |
32116-26010 |
from US $17.65 |
||
|
32117
|
32117
32117-26010 Spacer, Drive Plate, Rear[11.2015 -] TGN14#..6FC |
32117-26010 |
from US $11.53 |
||
|
35301
|
35301
35301-71010 Body Sub-Assy, Front Oil Pump[11.2015 -] GUN14#,TGN14#..6FC |
35301-71010 |
from US $256.84 |
||
|
35301A
|
35301A
90311-38101 Seal, Oil (For Front Oil Pump)[11.2015 -] GUN14#,TGN14#..6FC |
90311-38101 |
from US $5.93 |
||
|
35301B
|
35301B
35697-60010 Ring, O (For Front Oil Pump Body)[11.2015 -] GUN14#,TGN14#..6FC |
35697-60010 |
from US $3.67 |
||
|
35301F
|
35301F
90105-08091 Bolt (For Front Oil Pump Setting)[11.2015 -] GUN14#,TGN14#..6FC *8-1.25PX35-35 |
90105-08091 |
US $1.89 |
||
|
35307C
|
35307C
35789-71070 Race, Thrust Bearing (For Stator Shaft)[11.2015 -] GUN14#,TGN14#..6FC |
35789-71070 |
US $13.22 |
||
|
35307F
|
35307F
90148-60079 Bolt (For Stator Shaft)[11.2015 -] GUN14#,TGN14#..6FC |
90148-60079 |
from US $0.52 |
||
|
35314
|
35314
35314-71010
Plate, Front Oil Pump
[11.2015 -] GUN14#,TGN14#..6FC |
35314-71010 |
— | ||
|
35321
|
35321
35321-71010 Gear, Front Oil Pump Drive[11.2015 -] GUN14#,TGN14#..6FC |
35321-71010 |
from US $40.77 |
||
|
35322
|
35322
35322-71010 Gear, Front Oil Pump Driven[11.2015 -] GUN14#,TGN14#..6FC T=9.977-9.983 |
35322-71010 |
from US $40.77 |
||
|
35370
|
35370
35370-71010 Shaft Assy, Stator[11.2015 -] GUN14#,TGN14#..6FC |
35370-71010 |
from US $211.41 |
||
|
35370A
|
35370A
90374-71002 Bearing,needle Roller[11.2015 -] GUN14#,TGN14#..6FC |
90374-71002 |
US $14.55 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[11.2015 -] GUN14#,TGN14#..6FC |
35617-50030 |
from US $4.02 |
