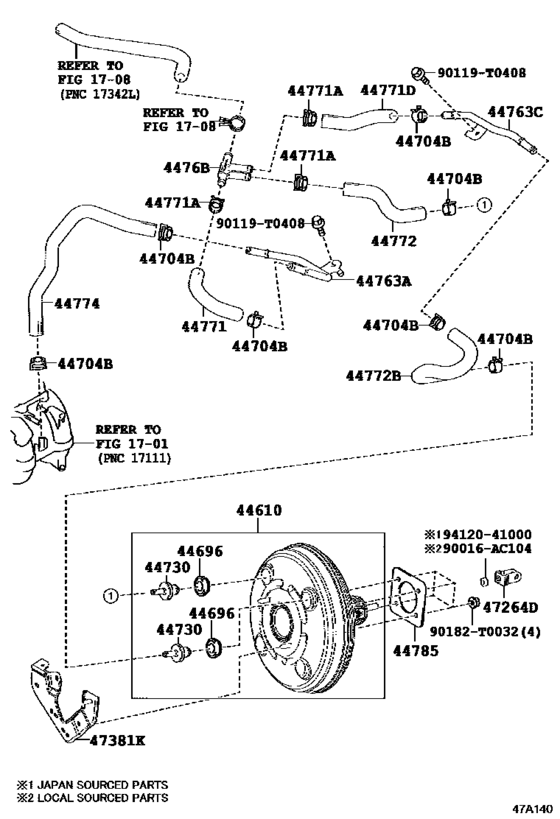

Brake Booster & Vacuum Tube ([11.2015 - ] (1511- )TGN14#..LHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4476B
|
4476B
4476B-48010 Ejector, Brake Booster Vacuum[11.2015 -] TGN14# |
4476B-48010 |
from US $6.53 |
||
|
44610
|
44610
44610-0K300
Booster Assy, Brake
[11.2015 -] TGN14# |
44610-0K300 |
— | ||
|
44696
|
44696
90016-AT003 Grommet, Check Valve[11.2015 -] TGN141;GUN14#,TGN140..IDNP,MAP,PHLP,VNP |
90016-AT003 |
US $1.07 |
||
|
44704B
|
44704B
90466-T0019 Clip(For Vacuum Hose)[11.2015 -] TGN14#..LHD |
90466-T0019 |
US $1.37 |
||
|
44730
|
44730
44730-60070 Valve Assy, Vacuum Check(For Brake)VACUUM CHECK(FOR BRAKE) [11.2015 -] TGN14# |
44730-60070 |
US $17.47 |
||
|
44763A
|
44763A
44763-KK140
Tube, Hose To Hose, No.1
[11.2015 -] TGN14#..LHD |
44763-KK140 |
— | ||
|
44763C
|
44763C
44763-KK150
Tube, Hose To Hose, No.2
[11.2015 -] TGN14#..LHD |
44763-KK150 |
— | ||
|
44771
|
44771
44771-KK050
Hose, Vacuum Tube Connector
[11.2015 -] TGN14#..LHD |
44771-KK050 |
— | ||
|
44771A
|
44771A
90466-T0019 Clip(For Vacuum Hose)[11.2015 -] TGN14#..LHD |
90466-T0019 |
US $1.37 |
||
|
44771D
|
44771D
44771-KK060
Hose, Vacuum Tube Connector
[11.2015 -] TGN14#..LHD |
44771-KK060 |
— | ||
|
44772
|
44772
44772-KK100
Hose, Check Valve To Connector Tube
[11.2015 -] TGN14#..LHD |
44772-KK100 |
— | ||
|
44772B
|
44772B
44772-KK110
Hose, Check Valve To Brake Booster
[11.2015 -] TGN14#..LHD |
44772-KK110 |
— | ||
|
44774
|
44774
44774-KK020
Hose, Union To Connector Tube
[11.2015 -] TGN14#..LHD |
44774-KK020 |
— | ||
|
44785
|
44785
44785-17010 Gasket, Brake Booster[11.2015 -] GUN14#,TGN14# |
44785-17010 |
from US $2.16 |
||
|
47264D
|
47264D
47264-0K070
Clevis, Brake Master Cylinder Push Rod
[11.2015 -] TGN141;GUN14#,TGN140..IDNP,MAP,PHLP,VNP |
47264-0K070 |
— | ||
|
47381K
|
47381K
47381-0K050
Bracket, Brake Booster Tube Clamp
[11.2015 -] TGN141;GUN14#,TGN140..IDNP,MAP,PHLP,VNP |
47381-0K050 |
— | ||
|
90119T0408
|
90119T0408
90119-T0408
New Genuine Part
|
90119-T0408 |
— | ||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
