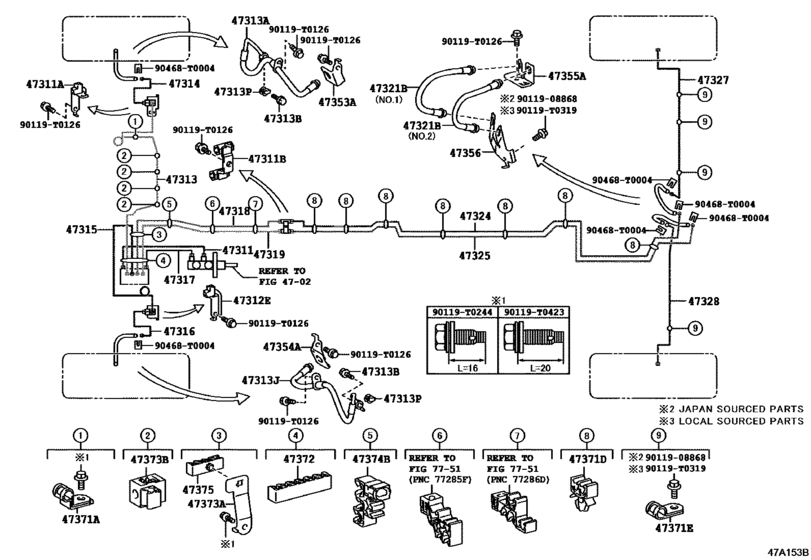

Brake Tube & Clamp ([11.2015 - ] BRAKE TUBE W(ABS) (1511- )GUN143..28E,28G,N..PHL ; (1511- )T GN140..PHLP,VNP..20E,20G,N ; (1511- )GUN142,TGN14 1..LHD) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-KK060
Tube, Front Brake, No.1
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) |
47311-KK060 |
— | ||
|
47311
|
47311
47311-KK070
Tube, Front Brake, No.1
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) VEHICLE STABILITY CONTROL-W(*HSAC) |
47311-KK070 |
— | ||
|
47311A
|
47311A
90412-10299
Way(For Front Brake Tube)
[11.2015 - 02.2017] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N) |
90412-10299 |
— | ||
|
47311A
|
47311A
90412-T0005
Way(For Front Brake Tube)
[02.2017 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) (L) |
90412-T0005 |
— | ||
|
47311B
|
47311B
90412-10301
Way, No.1(For Front Brake Tube)
[11.2015 - 02.2017] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N) |
90412-10301 |
— | ||
|
47311B
|
47311B
90412-T0007
Way, No.1(For Front Brake Tube)
[02.2017 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) (L) |
90412-T0007 |
— | ||
|
47312E
|
47312E
90412-10300
Way, No.2(For Front Brake Tube)
[11.2015 - 02.2017] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N) |
90412-10300 |
— | ||
|
47312E
|
47312E
90412-T0006
Way, No.2(For Front Brake Tube)
[02.2017 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) (L) |
90412-T0006 |
— | ||
|
47313
|
47313
47313-KK040
Tube, Front Brake, No.3
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) |
47313-KK040 |
— | ||
|
47313
|
47313
47313-KK060
Tube, Front Brake, No.3
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) VEHICLE STABILITY CONTROL-W(*HSAC) |
47313-KK060 |
— | ||
|
47313A
|
47313A
90947-T2094 Hose, Flexible, No.1(For Front)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
90947-T2094 |
US $40.52 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
90401-10058 |
from US $3.94 |
||
|
47313J
|
47313J
90947-T2095 Hose, Flexible, No.2(For Front)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
90947-T2095 |
US $40.42 |
||
|
47313P
|
47313P
47389-50021 Gasket(For Front Flexible Hose)[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47389-50021 |
from US $4.70 |
||
|
47314
|
47314
47314-KK010 Tube, Front Brake, No.4[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47314-KK010 |
US $5.79 |
||
|
47315
|
47315
47315-KK040
Tube, Front Brake, No.5
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) |
47315-KK040 |
— | ||
|
47315
|
47315
47315-KK060
Tube, Front Brake, No.5
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) VEHICLE STABILITY CONTROL-W(*HSAC) |
47315-KK060 |
— | ||
|
47316
|
47316
47316-KK010 Tube, Front Brake, No.6[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47316-KK010 |
US $5.79 |
||
|
47317
|
47317
47321-KK030
Tube, Front Brake, No.7
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) |
47321-KK030 |
— | ||
|
47317
|
47317
47321-KK040
Tube, Front Brake, No.7
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) VEHICLE STABILITY CONTROL-W(*HSAC) |
47321-KK040 |
— | ||
|
47318
|
47318
47322-KK040
Tube, Front Brake, No.8
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) VEHICLE STABILITY CONTROL-W(*HSAC) |
47322-KK040 |
— | ||
|
47318
|
47318
47322-KK110
Tube, Front Brake, No.8
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) |
47322-KK110 |
— | ||
|
47319
|
47319
47323-KK080
Tube, Front Brake, No.9
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) VEHICLE STABILITY CONTROL-W(*HSAC) |
47323-KK080 |
— | ||
|
47319
|
47319
47323-KK150
Tube, Front Brake, No.9
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) |
47323-KK150 |
— | ||
|
47321B
|
47321B
90947-T2100
Hose, Flexible(For Rear Brake Tube)
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) NO.2:REFER ILLUST. |
90947-T2100 |
— | ||
|
47321B
|
47321B
90947-T2102
Hose, Flexible(For Rear Brake Tube)
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) NO.1:REFER ILLUST. |
90947-T2102 |
— | ||
|
47324
|
47324
47324-KK030
Tube, Rear Brake, No.4
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47324-KK030 |
— | ||
|
47325
|
47325
47325-KK050
Tube, Rear Brake, No.5
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47325-KK050 |
— | ||
|
47327
|
47327
47327-KK200
Tube, Rear Brake, No.7
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47327-KK200 |
— | ||
|
47328
|
47328
47328-KK200
Tube, Rear Brake, No.8
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47328-KK200 |
— | ||
|
47353A
|
47353A
47353-0K011
Bracket, Flexible Hose(For Front Rh)
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47353-0K011 |
— | ||
|
47354A
|
47354A
47354-0K010
Bracket, Flexible Hose(For Front Lh)
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47354-0K010 |
— | ||
|
47355A
|
47355A
47355-KK030
Bracket, Flexible Hose, No.5
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47355-KK030 |
— | ||
|
47356
|
47356
47356-KK030
Bracket, Flexible Hose, No.6
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
47356-KK030 |
— | ||
|
47371A
|
47371A
90461-T0007
Clamp, Brake Tube, No.1
[11.2015 -] GUN142,TGN141..LHD..(24,24G,27,27G,27SR,27SRV);GUN143,TGN140..(20E,20G,20V,28E,28G ,28V,N)..(PHL,VN) |
90461-T0007 |
— | ||
|
47371D
|
47371D
90949-T1006 Clamp, Brake Tube, No.8BRAKE TUBE, NO.5 [11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
90949-T1006 |
US $1.46 |
||
|
47371E
|
47371E
90461-T0001
Clamp, Brake Tube, No.7
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
90461-T0001 |
— | ||
|
47372
|
47372
90949-T1028 Clamp, Brake Tube, No.2[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) VEHICLE STABILITY CONTROL-W(*HSAC) |
90949-T1028 |
US $0.87 |
||
|
47372
|
47372
90949-T1029
Clamp, Brake Tube, No.2
[11.2015 -] GUN143,TGN14#..(20E,20G,27,27SR,27SRV,28E,28G,N)..(LA,PHL,VN) |
90949-T1029 |
— | ||
|
47373A
|
47373A
90949-T2003
Bracket, Tube Clamp
[11.2015 -] GUN142,TGN141..LHD..(24,24G,27,27G,27SR,27SRV);GUN143,TGN140..(20E,20G,20V,28E,28G ,28V,N)..(PHL,VN) |
90949-T2003 |
— | ||
|
47373B
|
47373B
90949-T1030
Clamp, Brake Tube, No.2
[11.2015 -] GUN142,TGN141..LHD..(24,24G,27,27G,27SR,27SRV);GUN143,TGN140..(20E,20G,20V,28E,28G ,28V,N)..(PHL,VN) |
90949-T1030 |
— | ||
|
47374B
|
47374B
90949-T1032 Clamp, Brake Tube, No.6[11.2015 -] GUN142,TGN141..LHD..(24,24G,27,27G,27SR,27SRV);GUN143,TGN140..(20E,20G,20V,28E,28G ,28V,N)..(PHL,VN) |
90949-T1032 |
US $3.32 |
||
|
47375
|
47375
90949-T1031
Clamp, Brake Tube, No.5
[11.2015 -] GUN142,TGN141..LHD..(24,24G,27,27G,27SR,27SRV);GUN143,TGN140..(20E,20G,20V,28E,28G ,28V,N)..(PHL,VN) |
90949-T1031 |
— | ||
|
90119T0126
|
90119T0126
90119-T0126
BOLT WWASHER
|
90119-T0126 |
— | ||
|
90119T0244
|
90119T0244
90119-T0244
BOLT WWASHER
|
90119-T0244 |
— | ||
|
90119T0319
|
90119T0319
90119-T0319
New Genuine Part
|
90119-T0319 |
— | ||
|
90468T0004
|
90468T0004
90468-T0004
CLIP
|
90468-T0004 |
— | ||
|
9011908868
|
9011908868
90119-08868 BOLT WWASHER |
90119-08868 |
US $1.25 |
