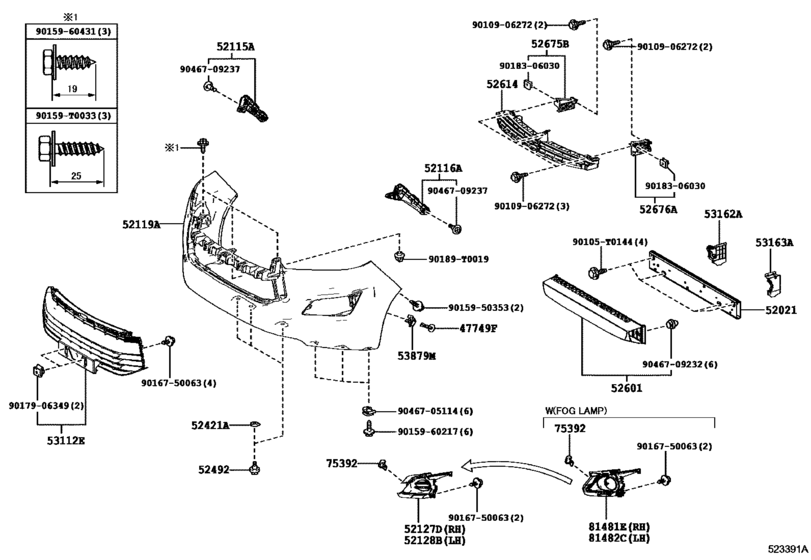

Front Bumper & Bumper Stay ([11.2015 - ] (1511- )GEN,LA) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47749F
|
47749F
47749-58010 Clip, Pin Hold[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N) |
47749-58010 |
from US $0.86 |
||
|
52021
|
52021
52021-KK010 Reinforcement Sub-Assy, Front Bumper[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N) |
52021-KK010 |
from US $98.87 |
||
|
52115A
|
52115A
52115-0K210 Support, Front Bumper Side, Rh[11.2015 -] TGN140..20V..VN;GUN143..IDNP..(PHL,TH);TGN140..(20E,20G)..(MA,VN);GUN142,TGN14#..I DNP..(20,20E,20G,20Q,20V,24,24G,24Q,24V,27,27G,27SR,27SRV,N) |
52115-0K210 |
US $33.77 |
||
|
52116A
|
52116A
52116-0K140 Support, Front Bumper Side, Lh[11.2015 -] TGN140..20V..VN;GUN143..IDNP..(PHL,TH);TGN140..(20E,20G)..(MA,VN);GUN142,TGN14#..I DNP..(20,20E,20G,20Q,20V,24,24G,24Q,24V,27,27G,27SR,27SRV,N) |
52116-0K140 |
US $33.79 |
||
|
52119A
|
52119A
52119-0M956 Cover, Front Bumper[11.2015 -] GUN143..IDNP..PHL;GUN142,TGN14#..LHD..IDNP..(20E,20G,24,24G,27,27G,27SR,27SRV,N) |
52119-0M956 |
US $289.24 |
||
|
52127D
|
52127D
52127-0K260 Cover, Front Bumper Hole, Rh[11.2015 -] TGN140..RHD..20E;GUN14#,TGN14#..(24,24G,27,27G,27SR,27SRV,N)..(GCC,LA,PHL) |
52127-0K260 |
US $44.99 |
||
|
52128B
|
52128B
52128-0K260 Cover, Front Bumper Hole, Lh[11.2015 -] TGN140..RHD..20E;GUN14#,TGN14#..(24,24G,27,27G,27SR,27SRV,N)..(GCC,LA,PHL) |
52128-0K260 |
US $44.93 |
||
|
52421A
|
52421A
52421-60191 Pad, Front Bumper[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N) |
52421-60191 |
from US $4.66 |
||
|
52492
|
52492
52491-60010 Bolt, Bumper Pad, No.2[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N) |
52491-60010 |
from US $1.42 |
||
|
52601
|
52601
52601-0K090
Absorber Sub-Assy, Front Bumper Energy
[11.2015 -] TGN14#..GEN,LA |
52601-0K090 |
— | ||
|
52614
|
52614
52614-0K120
Absorber, Front Bumper Energy, No.2
[11.2015 -] TGN14#..GEN,LA |
52614-0K120 |
— | ||
|
52675B
|
52675B
52675-0K080 Support, Front Bumper Side, No.1 Rh[11.2015 -] TGN14#..GEN,LA |
52675-0K080 |
US $30.81 |
||
|
52676A
|
52676A
52676-0K080 Support, Front Bumper Side, No.1 Lh[11.2015 -] TGN14#..GEN,LA |
52676-0K080 |
US $31.22 |
||
|
53112E
|
53112E
53112-0K170 Grille, Radiator, Lower No.1[11.2015 -] TGN140..20G..VN;GUN14#,TGN140..RHD..IDNP..(20,20E,20G,20V,24G,28G);GUN14#,TGN14#.. (IDNP,MAP,VNP)..(20E,24,24V,27,27SR,28E,N)..(GCC,IDN,LA,MA,PHL,VN) |
53112-0K170 |
US $110.04 |
||
|
53162A
|
53162A
53162-KK040
Deflector, Front Bumper Stone, Rh
[11.2015 -] TGN14#..GEN,LA;GUN142..(24,24G)..GCC |
53162-KK040 |
— | ||
|
53163A
|
53163A
53163-KK040
Deflector, Front Bumper Stone, Lh
[11.2015 -] TGN14#..GEN,LA;GUN142..(24,24G)..GCC |
53163-KK040 |
— | ||
|
53879M
|
53879M
53879-50020 Retainer, Front Fender Liner[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N) |
53879-50020 |
from US $4.70 |
||
|
75392
|
75392
75392-35220 Retainer, Rear Bumper[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N) |
75392-35220 |
from US $1.33 |
||
|
81481E
|
81481E
52030-0K140 Cover, Fog Lamp, Rh[11.2015 -] TGN140..20G..(MA,VN);TGN140..(20E,20V)..VN;TGN140..(20,20E,20G,20Q,20V)..(GEN,IDN, PHL);GUN14#..(24,24G,24Q,24V,28E,28G,28V)..(IDN,PHL,SA,TH); TGN141..27..LA;GUN142..5F..24G..GCC;TGN141..IDNP..(27G,27SR,27SRV);GUN142,TGN141.. 6FC..(24,24G,27). |
52030-0K140 |
US $48.56 |
||
|
81482C
|
81482C
52040-0K140 Cover, Fog Lamp, Lh[11.2015 -] TGN140..20G..(MA,VN);TGN140..(20E,20V)..VN;TGN140..(20,20E,20G,20Q,20V)..(GEN,IDN, PHL);GUN14#..(24,24G,24Q,24V,28E,28G,28V)..(IDN,PHL,SA,TH); TGN141..27..LA;GUN142..5F..24G..GCC;TGN141..IDNP..(27G,27SR,27SRV);GUN142,TGN141.. 6FC..(24,24G,27). |
52040-0K140 |
US $49.35 |
||
|
90105T0144
|
90105T0144
90105-T0144
BOLT FLANGE
|
90105-T0144 |
— | ||
|
90159T0033
|
90159T0033
90159-T0033 SCREW WWASHER |
90159-T0033 |
from US $0.64 |
||
|
90189T0019
|
90189T0019
90189-T0019 GROMMET SCREW |
90189-T0019 |
US $0.74 |
||
|
9010906272
|
9010906272
90109-06272 Retainer, Headlamp |
90109-06272 |
from US $0.84 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.66 |
||
|
9015960217
|
9015960217
90159-60217 SCREW |
90159-60217 |
from US $1.19 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9016750063
|
9016750063
90167-50063 SCREW PAN TAPPING |
90167-50063 |
from US $0.55 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.31 |
||
|
9018306030
|
9018306030
90183-06030 NUT SPRING |
90183-06030 |
from US $0.66 |
||
|
9046705114
|
9046705114
90467-05114 Clip(For Front Bumper), No.1 |
90467-05114 |
from US $1.97 |
||
|
9046709232
|
9046709232
90467-09232 Clip (For Roof Side Inner Garnish) |
90467-09232 |
from US $0.98 |
||
|
9046709237
|
9046709237
90467-09237 Clip, Rear Bumper Side |
90467-09237 |
from US $0.86 |
