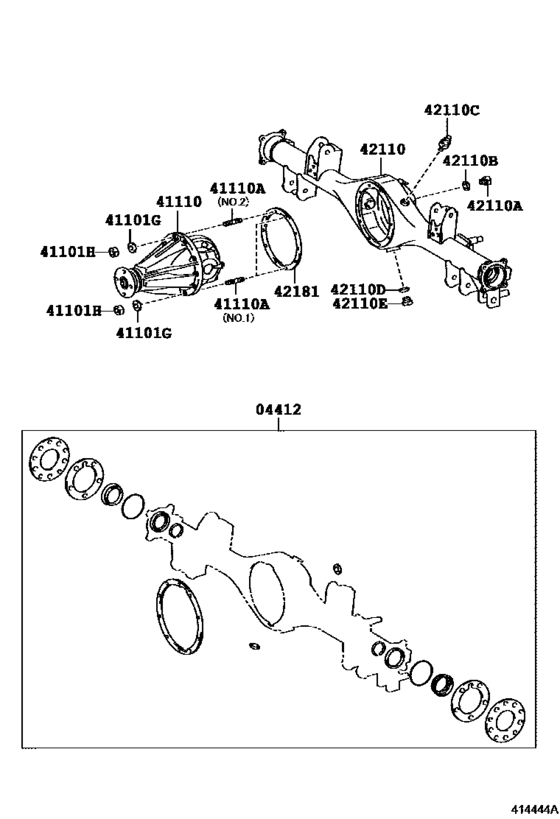

Rear Axle Housing & Differential ([11.2015 - ] (1511- )) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04412
|
04412
04412-0K510 Gasket Kit, Rear Differential Carrier[11.2015 -] GUN14#,TGN14# |
04412-0K510 |
US $47.25 |
||
|
41101G
|
41101G
90201-08002 Washer(For Front Wheel Cylinder)[11.2015 -] GUN14#,TGN14# |
90201-08002 |
from US $1.42 |
||
|
41101H
|
41101H
90170-T0009
Nut, Hexagon(For Rear Differential Carrier Set)
[11.2015 -] GUN14#,TGN14# |
90170-T0009 |
— | ||
|
41110
|
41110
41110-0K530 Carrier Assy, Differential, Rear[11.2015 -] TGN141..IDNP *FGR=41:10=4.100 |
41110-0K530 |
US $1,505.58 |
||
|
41110A
|
41110A
90116-08233 Bolt, No.1 (For Rear Differential Carrier Set)[11.2015 -] GUN14#,TGN14# S=14 & 14,L=42,NO.1:REFER ILLUST. |
90116-08233 |
from US $0.96 |
||
|
41110A
|
41110A
90116-08329 Bolt, No.1 (For Rear Differential Carrier Set)[11.2015 -] GUN14#,TGN14# S=17 & 12,L=37,NO.2:REFER ILLUST. |
90116-08329 |
from US $1.05 |
||
|
42110
|
42110
42110-KK020 Housing Assy, Rear Axle[11.2015 -] GUN142,TGN141..GCC,LA,SA |
42110-KK020 |
US $837.21 |
||
|
42110A
|
42110A
90341-18006 Plug (No magnet)[11.2015 -] GUN14#,TGN14# |
90341-18006 |
from US $3.23 |
||
|
42110B
|
42110B
12157-10010 Gasket (For Drain Plug)[11.2015 -] GUN14#,TGN14# |
12157-10010 |
from US $0.74 |
||
|
42110C
|
42110C
90930-03031 Plug, Breather(For Parking Cover)[11.2015 -] GUN14#,TGN14# |
90930-03031 |
from US $6.34 |
||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[11.2015 -] GUN14#,TGN14# |
12157-10010 |
from US $0.74 |
||
|
42110E
|
42110E
90341-18057 Drain Plug (with Magnet)[11.2015 -] GUN14#,TGN14# |
90341-18057 |
from US $6.27 |
||
|
42181
|
42181
42181-0K030 Gasket, Rear Differential Carrier[11.2015 -] GUN14#,TGN14# |
42181-0K030 |
from US $5.58 |
