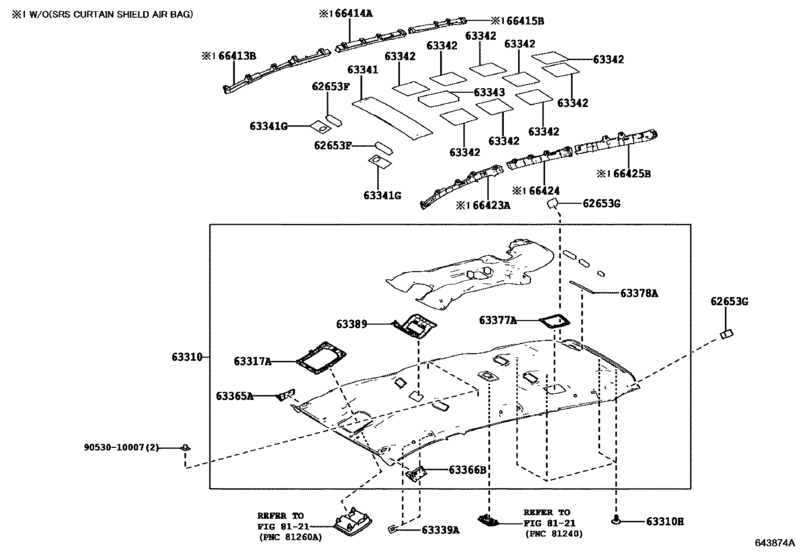

Roof Headlining & Silencer Pad ([11.2015 - ] (1511- )24G..IDN ; (1511- )RHD..IDNP..20,2 0E,20G ; (1511- )20E,24,27,27SR, 28E,N..GCC,LA,MA, PHL,VN) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62653F
|
62653F
62653-0K350
Packing (For Roof Headlining)
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N )..(GEN,IDN,PHL,TH) |
62653-0K350 |
— | ||
|
62653G
|
62653G
62653-0K360
Packing,(For Roof Headlining)
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N )..(GEN,IDN,PHL,TH) |
62653-0K360 |
— | ||
|
63310
|
63310
63310-0K760-B1
Headlining Assy, Roof
[11.2015 -] GUN142,TGN140..(20E,24G)..(IDN,VN);GUN142,TGN14#..(20,20E,20G,24,27,27SR)..(GCC,GE N,IDN,LA,TH) LT.GRAY,TRIM2#,4# |
63310-0K760-B1 |
— | ||
|
63310
|
63310
63310-0KL70-B0
Headlining Assy, Roof
[11.2015 -] TGN140..RHD..IDNP..(20,20E,20G);GUN142,TGN14#..(20E,24G,27,27SR)..(IDN,LA,VN) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),LT. GRAY,TRIM2#,4# |
63310-0KL70-B0 |
— | ||
|
63310H
|
63310H
90467-T0004-B0 Clip[11.2015 -] TGN140..IDNP..20G..PHL;TGN140..(MAP,PHLP,VNP)..(20E,20G,N);GUN143,TGN140..(20V,28G ,28V)..(PHL,TH,VN);GUN14#,TGN14#..RHD..(IDNP,INDP)..(20,20E,20G,20Q,20V,24Z,27Z,28 Z);GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA) LT.GRAY |
90467-T0004-B0 |
US $0.90 |
||
|
63317A
|
63317A
63317-0K100
Retainer, Roof Headlining
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..(20E,24,27,27SR,28 E,N)..(GCC,LA,MA,PHL,VN) |
63317-0K100 |
— | ||
|
63339A
|
63339A
63339-0D100-B1
Cover, Roof Headlining Service Hole
[11.2015 -] GUN142..5F..24Q;GUN143..28G..PHL;TGN140..RHD..IDNP;TGN140..IDNP..20G..PHL;TGN140.. (PHLP,VNP)..(20E,20G,N);GUN142,TGN141..(24,24G,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA ) LT.GRAY,TRIM2#,4# |
63339-0D100-B1 |
— | ||
|
63341
|
63341
63341-0K070
Pad, Roof Silencer, No.1
[11.2015 -] TGN140..(20E,20G,20V)..VN;GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC, IDN,LA,SA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
63341-0K070 |
— | ||
|
63341G
|
63341G
63341-0K090
Pad, Roof Silencer
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
63341-0K090 |
— | ||
|
63342
|
63342
63342-0K210
Pad, Roof Silencer, No.2
[11.2015 -] GUN143..IDNP..(PHL,TH);TGN140..(20E,20G,20V)..VN;GUN142,TGN14#..IDNP..(20,20E,20G, 20Q,20V,24,24G,24Q,24V,27,27G,27SR,27SRV,N) |
63342-0K210 |
— | ||
|
63343
|
63343
63343-0K060
Pad, Roof Silencer, No.3
[11.2015 - 05.2017] GUN14#,TGN14#..IDNP,VNP |
63343-0K060 |
— | ||
|
63365A
|
63365A
63365-0K010
Plate, Roof Headlining Set
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
63365-0K010 |
— | ||
|
63366B
|
63366B
63366-0K010
Plate, Roof Headlining Set, Lh
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
63366-0K010 |
— | ||
|
63377A
|
63377A
63377-0K010
Retainer, Roof Headlining Support, No.1
[11.2015 -] TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20V,28E,28G,N)..(GEN,IDN,PHL ,TH);GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA) |
63377-0K010 |
— | ||
|
63378A
|
63378A
63378-0K010
Retainer, Roof Headlining Support, No.2
[11.2015 - 03.2017] TGN140..20G..(MA,VN);TGN140..(20E,20V)..VN;GUN142,TGN141..IDNP..(24,24G,24Q,24V,27 ,27G,27SR,27SRV);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,T H) |
63378-0K010 |
— | ||
|
63389
|
63389
63389-0K010
Retainer, Roof Headlining Trim, Center
[11.2015 -] GUN142..24G..IDN;TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..(20E,24,27,27SR,28 E,N)..(GCC,LA,MA,PHL,VN) |
63389-0K010 |
— | ||
|
66413B
|
66413B
66413-0K060
Spacer, Side Rail, Front Rh
[11.2015 -] TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN143..IDNP..(28E,28G,N)..PHL; GUN142,TGN141..(24,24G,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA); TGN140..20Q SEAT COVER MATERIAL-LEATHER; TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN14#, |
66413-0K060 |
— | ||
|
66414A
|
66414A
66414-0K050
Spacer, Side Rail, Rear Rh
[11.2015 -] TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN143..IDNP..(28E,28G,N)..PHL; GUN142,TGN141..(24,24G,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA); TGN140..20Q SEAT COVER MATERIAL-LEATHER; TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN14#, |
66414-0K050 |
— | ||
|
66415B
|
66415B
66415-0K100
Spacer, Side Rail, Rear No.2 Rh
[11.2015 -] TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN143..IDNP..(28E,28G,N)..PHL; GUN142,TGN141..(24,24G,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA); TGN140..20Q SEAT COVER MATERIAL-LEATHER; TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN14#, |
66415-0K100 |
— | ||
|
66423A
|
66423A
66423-0K060
Spacer, Side Rail, Front Lh
[11.2015 -] TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN143..IDNP..(28E,28G,N)..PHL; GUN142,TGN141..(24,24G,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA); TGN140..20Q SEAT COVER MATERIAL-LEATHER; TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN14#, |
66423-0K060 |
— | ||
|
66424
|
66424
66424-0K210
Spacer, Side Rail, Rear Lh
[11.2015 -] TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN143..IDNP..(28E,28G,N)..PHL; GUN142,TGN141..(24,24G,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA); TGN140..20Q SEAT COVER MATERIAL-LEATHER; TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN14#, |
66424-0K210 |
— | ||
|
66425B
|
66425B
66425-0K260
Spacer, Side Rail, Rear No.2 Lh
[11.2015 -] TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN143..IDNP..(28E,28G,N)..PHL; GUN142,TGN141..(24,24G,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA); TGN140..20Q SEAT COVER MATERIAL-LEATHER; TGN140..IDNP;GUN142..5F..24Q;TGN140..(20E,20G)..VN;GUN14#, |
66425-0K260 |
— | ||
|
9053010007
|
9053010007
90530-10007 Fastener, Roof Headlining, No.1 |
90530-10007 |
US $2.51 |
