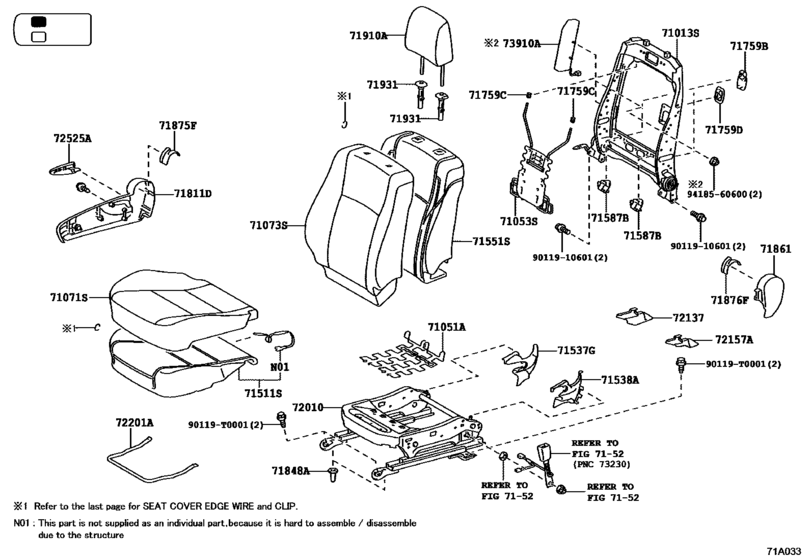

Seat & Seat Track ([11.2015 - ] PASSENGER (1511- )LHD..20E,24,24G,27,27G,27SR,27SRV,28E ,N) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71013S
|
71013S
71013-0K260
Frame Sub-Assy, Front Seat Back, Rh
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA); GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV; TGN140..GEN SEAT COVER MATERIAL-F |
71013-0K260 |
— | ||
|
71051A
|
71051A
71051-0K050
Spring Sub-Assy, Front Seat Cushion, Rh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71051-0K050 |
— | ||
|
71053S
|
71053S
71053-0K010
Spring Sub-Assy, Front Seat Back, Rh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71053-0K010 |
— | ||
|
71071S
|
71071S
71071-0KF40-C2
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.2015 -] GUN143..IDNP..28G..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV) BLACK,TRIM2#; GUN142,TGN141..6FC..(24,27)..GCC SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2# |
71071-0KF40-C2 |
— | ||
|
71071S
|
71071S
71071-0KF40-E0
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.2015 -] GUN143..IDNP..28G..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV) HAZEL BROWN,TRIM4#; GUN142,TGN141..6FC..(24,27)..GCC SEAT COVER MATERIAL-FULL HI FOR MPV,HAZEL BROWN,TRIM4# |
71071-0KF40-E0 |
— | ||
|
71071S
|
71071S
79011-0K630-C2
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.2015 -] GUN143,TGN14#..IDNP..(20G,27SR,27SRV,28G)..(LA,PHL) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLACK,TRIM2# |
79011-0K630-C2 |
— | ||
|
71071S
|
71071S
79011-0K630-E0
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.2015 -] GUN143,TGN14#..IDNP..(20G,27SR,27SRV,28G)..(LA,PHL) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),HAZEL BROWN,TRIM4# |
79011-0K630-E0 |
— | ||
|
71073S
|
71073S
71073-0KA60-C2
Cover, Front Seat Back, Rh(For Separate Type)
[11.2015 -] GUN142..5F..24Q;GUN14#,TGN140..IDNP..(20Q,20V,24V,28G)..(IDN,PHL);GUN142,TGN14#..L HD..IDNP..(20G,24G,27G,27SR,27SRV) BLACK,TRIM2#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2# |
71073-0KA60-C2 |
— | ||
|
71073S
|
71073S
71073-0KA60-E0
Cover, Front Seat Back, Rh(For Separate Type)
[11.2015 -] GUN142..5F..24Q;GUN14#,TGN140..IDNP..(20Q,20V,24V,28G)..(IDN,PHL);GUN142,TGN14#..L HD..IDNP..(20G,24G,27G,27SR,27SRV) HAZEL BROWN,TRIM4#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,HAZEL BROWN,TRIM4# |
71073-0KA60-E0 |
— | ||
|
71073S
|
71073S
71073-0KD40-C2
Cover, Front Seat Back, Rh(For Separate Type)
[11.2015 -] GUN14#..RHD..IDNP..6FC..(24,24Q,28G) BLACK,TRIM2#; TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTA IN),BLACK,TRIM2#; GUN142..5F..24Q;TGN140..IDNP..20G..PHL;GUN14#,TGN14#..IDNP..(20Q,20V,24V,27SR,2 |
71073-0KD40-C2 |
— | ||
|
71073S
|
71073S
71073-0KD40-E0
Cover, Front Seat Back, Rh(For Separate Type)
[11.2015 -] GUN143..IDNP..28V..PHL;GUN14#..RHD..IDNP..6FC..(24,24Q,28G) HAZEL BROWN,TRIM4#; TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTA IN),HAZEL BROWN,TRIM4#; GUN142..5F..24Q;TGN140..IDNP..20G..PHL;GUN14 |
71073-0KD40-E0 |
— | ||
|
71511S
|
71511S
71501-0K120
Pad, Front Seat Cushion, Rh(For Separate Type)
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV); GUN142,TGN141..6FC..(24,27)..GCC SEAT COVER MATERIAL-FULL HI FOR MPV |
71501-0K120 |
— | ||
|
71537G
|
71537G
71537-0K030-C0
Protector, Front Seat Cushion Edge, Rh(For Rh Seat)
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27S RV) BLACK,TRIM2#,4# |
71537-0K030-C0 |
— | ||
|
71538A
|
71538A
71538-0K010-C0
Protector, Front Seat Cushion Edge, Lh(For Rh Seat)
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27S RV) BLACK,TRIM2#,4# |
71538-0K010-C0 |
— | ||
|
71551S
|
71551S
71551-0K070
Pad, Front Seat Back, Rh(For Separate Type)
[11.2015 -] GUN142..5F..24Q;GUN14#,TGN140..IDNP..(20Q,20V,24V,28G)..(IDN,PHL);GUN142,TGN14#..L HD..IDNP..(20G,24G,27G,27SR,27SRV); GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV |
71551-0K070 |
— | ||
|
71551S
|
71551S
71551-0K080
Pad, Front Seat Back, Rh(For Separate Type)
[11.2015 -] GUN143..IDNP..28V..PHL;GUN14#..RHD..IDNP..6FC..(24,24Q,28G,28V); TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN); TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SRS AIRBAG-W(DRIVER & P |
71551-0K080 |
— | ||
|
71587B
|
71587B
71587-0K010
Protector, Front Seat Back Edge
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71587-0K010 |
— | ||
|
71759C
|
71759C
71759-0K010
Hook, Front Seat Back, No.1
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71759-0K010 |
— | ||
|
71811D
|
71811D
71811-0K050-C0
Shield, Front Seat Cushion, Rh
[11.2015 -] GUN143,TGN14#..IDNP..(20G,27,27SR,27SRV,28G)..(LA,PHL) SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN),BLACK,TRIM2#,4# |
71811-0K050-C0 |
— | ||
|
71811D
|
71811D
71811-0K370-C0
Shield, Front Seat Cushion, Rh
[11.2015 -] GUN143..IDNP..28G..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27SRV) BLACK,TRIM2#,4# |
71811-0K370-C0 |
— | ||
|
71848A
|
71848A
71848-0K010 Cap, Seat Adjuster Cover, Rh[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
71848-0K010 |
US $0.43 |
||
|
71861
|
71861
71861-0K070-C0
Shield, Front Seat Cushion, Inner Rh
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27S RV) BLACK,TRIM2#,4# |
71861-0K070-C0 |
— | ||
|
71875F
|
71875F
71875-0K230-C0
Cover, Reclining Adjuster Inside, Rh
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..IDNP..(20G,28G)..(PHL,TH);GUN14#,TGN141..IDNP..(2 4,24G,24Q,24V,27,27G,27SR,27SRV,28V)..(GCC,IDN,LA,PHL,SA) BLACK,TRIM2#,4# |
71875-0K230-C0 |
— | ||
|
71876F
|
71876F
71876-0K230-C0
Cover, Reclining Adjuster Inside, Lh
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..IDNP..(20G,28G)..(PHL,TH);GUN14#,TGN141..IDNP..(2 4,24G,24Q,24V,27,27G,27SR,27SRV,28V)..(GCC,IDN,LA,PHL,SA) BLACK,TRIM2#,4# |
71876-0K230-C0 |
— | ||
|
71910A
|
71910A
71910-0K750-C1
Headrest Assy, Front Seat
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA);GUN142,TGN14#..LHD ..IDNP..(20G,24G,27G,27SR,27SRV) BLACK,TRIM2#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2#; TGN140..GEN SEAT COVE |
71910-0K750-C1 |
— | ||
|
71910A
|
71910A
71910-0K750-E1
Headrest Assy, Front Seat
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA) HAZEL BROWN,TRIM4#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,HAZEL BROWN,TRI |
71910-0K750-E1 |
— | ||
|
71931
|
71931
71930-0K010-C0
Support, Front Seat Headrest
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) W(LOCK),BLACK,TRIM2#,4# |
71930-0K010-C0 |
— | ||
|
71931
|
71931
71931-0K010-C0
Support, Front Seat Headrest
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) W/O(LOCK),BLACK,TRIM2#,4# |
71931-0K010-C0 |
— | ||
|
72010
|
72010
72010-0K010
Adjuster Assy, Front Seat, Rh
[11.2015 -] GUN143..IDNP..PHL;GUN142,TGN14#..LHD..IDNP..(20E,20G,24,24G,27,27G,27SR,27SRV,N) |
72010-0K010 |
— | ||
|
72137
|
72137
72137-0K070-C0
Cover, Seat Track, Outer Rh
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(IDNP,VNP)..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN 14#..(20E,24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) BLACK,TRIM2#,4# |
72137-0K070-C0 |
— | ||
|
72157A
|
72157A
72157-0K050-C0
Cover, Seat Track Bracket, Inner Rh
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(IDNP,VNP)..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN 14#..(20E,24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) BLACK,TRIM2#,4# |
72157-0K050-C0 |
— | ||
|
72201A
|
72201A
72211-0D210
Handle Sub-Assy, Seat Track Rh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..28V..PHL;GUN143..IDNP..(28E,28G,N)..(PHL,TH);GUN142..(2 4,24G,24Q,24V)..(GCC,IDN,SA) |
72211-0D210 |
— | ||
|
72525A
|
72525A
72525-0D320-C0
Handle, Reclining Adjuster Release, Rh
[11.2015 -] GUN143..IDNP..(28G,28V)..PHL;GUN142,TGN14#..LHD..IDNP..(20G,24,24G,27,27G,27SR,27S RV) BLACK,TRIM2#,4# |
72525-0D320-C0 |
— | ||
|
73910A
|
73910A
73910-0K050 Air Bag Assy, Front Seat, Rh[11.2015 -] TGN140..20G..MA;GUN14#..RHD..IDNP..6FC..(24Q,28G);GUN14#,TGN14#..(20V,24,24Z,27Z,2 8V,28Z)..(IND,PHL,SA,TH,VN); TGN140..20Q;GUN142..5F..24Q SEAT COVER MATERIAL-LEATHER&SRS AIRBAG-W(DRIVER & PASSENGER & SIDE & CURTAIN); TGN140..GEN SEAT COVER M |
73910-0K050 |
US $251.60 |
||
|
90119T0001
|
90119T0001
90119-T0001
BOLTWWSH
|
90119-T0001 |
— | ||
|
9011910601
|
9011910601
90119-10601 BOLT WWASHER |
90119-10601 |
US $1.61 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.72 |
