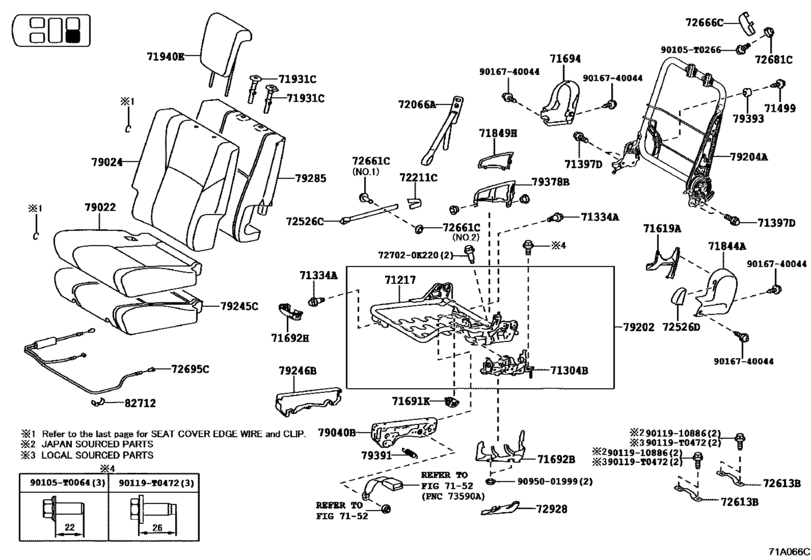

Seat & Seat Track ([11.2015 - ] REAR NO.2 SEAT(LH) (1511- )20V..VN ; (1511- )20E,20G..MA,VN ; (1511- )GUN143,TGN140..IDNP,IND P,PHLP ; (1511- )GUN142,TGN141) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71217
|
71217
79202-0K070
Frame, Rear Seat Cushion, Rear Lh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
79202-0K070 |
— | ||
|
71217
|
71217
79202-0K270
Frame, Rear Seat Cushion, Rear Lh
[08.2016 -] TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SEAT BELT WARNING-W(DRIVER & PASSENGER & REAR SEAT); TGN14#..GEN,LA SEAT BELT WARNING-W(DRIVER & PASSENGER & REAR SEAT) |
79202-0K270 |
— | ||
|
71304B
|
71304B
71304-0K010
Hinge Sub-Assy, Rear No.2 Seat, Lh
[11.2015 -] GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140.. (20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
71304-0K010 |
— | ||
|
71334A
|
71334A
71334-0K010
Stopper, Rear Seat Leg
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
71334-0K010 |
— | ||
|
71397D
|
71397D
71397-0K010 Stopper, Rear Seat[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
71397-0K010 |
US $3.88 |
||
|
71499
|
71499
71499-0K010
Stopper, Rear Seat Back
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
71499-0K010 |
— | ||
|
71619A
|
71619A
71694-0K030-C0
Cover, Rear Seat Cushion Hinge, Lower Lh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4# |
71694-0K030-C0 |
— | ||
|
71691K
|
71691K
71691-0K090-C0
Cover, Rear Seat Cushion Hinge, No.4
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(IDNP,VNP)..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN 14#..(20E,24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) BLACK,TRIM2#,4# |
71691-0K090-C0 |
— | ||
|
71692B
|
71692B
71692-0K020-C0
Cover, Rear Seat Lock, Outer Lh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4# |
71692-0K020-C0 |
— | ||
|
71692B
|
71692B
71692-0K170-C0
Cover, Rear Seat Lock, Outer Lh
[08.2016 -] TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SEAT BELT WARNING-W(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#,4#; TGN14#..GEN,LA SEAT BELT WARNING-W(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#,4# |
71692-0K170-C0 |
— | ||
|
71692H
|
71692H
71692-0K010-C0
Cover, Rear Seat Cushion Hinge, Upper Lh
[11.2015 -] GUN143,TGN140..(20G,28G,28V)..(PHL,TH,VN);GUN14#,TGN14#..RHD..(IDNP,INDP)..(20,20E ,20G,20Q,20V,24Z,27Z,28Z);GUN142,TGN14#..(20E,24,24G,24Q,24V,27,27G,27SR,27SRV)..( GCC,IDN,LA,SA,VN) BLACK,TRIM2#,4# |
71692-0K010-C0 |
— | ||
|
71694
|
71694
71694-0K090-C0
Cover, Rear Seat Cushion Hinge, Lower Lh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4# |
71694-0K090-C0 |
— | ||
|
71844A
|
71844A
71844-0K030-C0
Cover, Rear Seat Reclining, No.2 Lh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4# |
71844-0K030-C0 |
— | ||
|
71849H
|
71849H
71848-0K040-C0
Cap, Seat Adjuster Cover, Lh(For Lh Seat)
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN14#..(20E,24 ,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) BLACK,TRIM2#,4# |
71848-0K040-C0 |
— | ||
|
71931C
|
71931C
71930-02370-C0 Support, Front Seat HeadrestFRONT SEAT HEADREST [11.2015 -] TGN140..IDNP..20G..PHL;TGN140..(MAP,PHLP,VNP)..(20E,20G,N);GUN143,TGN140..(20V,28G ,28V)..(PHL,TH,VN);GUN14#,TGN14#..RHD..(IDNP,INDP)..(20,20E,20G,20Q,20V,24Z,27Z,28 Z);GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA) W(LOCK) |
71930-02370-C0 |
US $10.71 |
||
|
71931C
|
71931C
71931-02130-C0 Support, Front Seat HeadrestFRONT SEAT HEADREST [11.2015 -] TGN140..IDNP..20G..PHL;TGN140..(MAP,PHLP,VNP)..(20E,20G,N);GUN143,TGN140..(20V,28G ,28V)..(PHL,TH,VN);GUN14#,TGN14#..RHD..(IDNP,INDP)..(20,20E,20G,20Q,20V,24Z,27Z,28 Z);GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA) W/O(LOC |
71931-02130-C0 |
US $6.94 |
||
|
71940E
|
71940E
71940-0K820-C1
Headrest Assy, No.2 Seat
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA) BLACK,TRIM2#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2# |
71940-0K820-C1 |
— | ||
|
71940E
|
71940E
71940-0K820-E1
Headrest Assy, No.2 Seat
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA) HAZEL BROWN,TRIM4#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,HAZEL BROWN,TRI |
71940-0K820-E1 |
— | ||
|
72066A
|
72066A
72065-0K070-B0
Hook Sub-Assy,rear Seat Cushion Lock,rh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..(20G,28G,28V)..(PHL, TH) LT.GRAY,TRIM2#,4# |
72065-0K070-B0 |
— | ||
|
72211C
|
72211C
72211-0K190-C0
Handle, Seat Track Adjusting
[11.2015 - 08.2017] GUN143,TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA BLACK,TRIM2#,4# |
72211-0K190-C0 |
— | ||
|
72526C
|
72526C
72507-0K040-C1
Handle, Reclining Adjuster Release, No.2 Rh
[11.2015 -] TGN140..PHLP;TGN140..RHD..IDNP;TGN140..IDNP..20G..PHL;GUN143..(28G,28V)..(PHL,TH); GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA) BLACK,TRIM2#,4# |
72507-0K040-C1 |
— | ||
|
72526D
|
72526D
72526-0K260-C0
Handle, Reclining Adjuster Release, No.3 Lh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4# |
72526-0K260-C0 |
— | ||
|
72613B
|
72613B
72613-0K030
Striker, Rear Seat Lock
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
72613-0K030 |
— | ||
|
72661C
|
72661C
72661-0K030-C0
Button, Rear Seat Back Stop Release
[11.2015 -] TGN140..IDNP..20G..PHL;GUN143..(28G,28V)..(PHL,TH);TGN140..(PHLP,VNP)..(20E,20G,N) ;GUN14#,TGN14#..RHD..(IDNP,INDP)..(20,20E,20G,20Q,20V,24Z,27Z,28Z);GUN142,TGN141.. (24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA) BLACK,TRIM2#,4#,NO.1:REFE |
72661-0K030-C0 |
— | ||
|
72661C
|
72661C
72661-0K040-C0
Button, Rear Seat Back Stop Release
[11.2015 -] TGN140..IDNP..20G..PHL;GUN143..(28G,28V)..(PHL,TH);TGN140..(PHLP,VNP)..(20E,20G,N) ;GUN14#,TGN14#..RHD..(IDNP,INDP)..(20,20E,20G,20Q,20V,24Z,27Z,28Z);GUN142,TGN141.. (24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA) BLACK,TRIM2#,4#,NO.2:REFE |
72661-0K040-C0 |
— | ||
|
72666C
|
72666C
72665-0K330-B0
Cover, Rear Seat Lock, No.2 Lh
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN14#..(20E,24 ,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) LT.GRAY,TRIM2#,4# |
72665-0K330-B0 |
— | ||
|
72681C
|
72681C
72681-0K030-B0 Hook, Rear Seat Back Lock, Lower[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN14#..(20E,24 ,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) LT.GRAY,TRIM2#,4#,RH |
72681-0K030-B0 |
US $12.46 |
||
|
72681C
|
72681C
72681-0K050-B0
Hook, Rear Seat Back Lock, Lower
[11.2015 -] TGN140..RHD..IDNP;GUN143,TGN140..(20G,28G,28V)..(PHL,TH,VN);GUN142,TGN14#..(20E,24 ,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA,VN) LT.GRAY,TRIM2#,4#,LH |
72681-0K050-B0 |
— | ||
|
72695C
|
72695C
72695-0K040
Cable, Rear Seat Lock Control, Rh
[11.2015 -] GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140.. (20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
72695-0K040 |
— | ||
|
72928
|
72928
71694-0K180-C0
Cover, Rear Seat Cushion Under, Lh
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4# |
71694-0K180-C0 |
— | ||
|
72928
|
72928
71694-0K490-C0
Cover, Rear Seat Cushion Under, Lh
[08.2016 -] TGN14#..GEN,LA SEAT BELT WARNING-W(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#,4# |
71694-0K490-C0 |
— | ||
|
79022
|
79022
79022-0K580-C4
Cover Sub-Assy, No.2 Seat Cushion, Lh
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA) BLACK,TRIM2#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2# |
79022-0K580-C4 |
— | ||
|
79022
|
79022
79022-0K580-E4
Cover Sub-Assy, No.2 Seat Cushion, Lh
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA) HAZEL BROWN,TRIM4#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,HAZEL BROWN,TRI |
79022-0K580-E4 |
— | ||
|
79024
|
79024
79024-0K510-C4
Cover Sub-Assy, No.2 Seat Back, Lh
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA) BLACK,TRIM2#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,BLACK,TRIM2# |
79024-0K510-C4 |
— | ||
|
79024
|
79024
79024-0K510-E4
Cover Sub-Assy, No.2 Seat Back, Lh
[11.2015 -] GUN143..IDNP..28G;GUN142,TGN14#..LHD..IDNP..(20G,24G,27G,27SR,27SRV);GUN14#,TGN140 ..IDNP..(20Q,20V,24,24Q,24V,28V)..(IDN,PHL,SA) HAZEL BROWN,TRIM4#; GUN142,TGN14#..6FC..(20,24,27)..(GCC,GEN) SEAT COVER MATERIAL-FULL HI FOR MPV,HAZEL BROWN,TRI |
79024-0K510-E4 |
— | ||
|
79040B
|
79040B
79040-0K020
Leg Assy, Rear No.2 Seat, Lh
[11.2015 -] GUN142,TGN141..(24,24G,24Q,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140.. (20,20E,20G,20Q,20V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
79040-0K020 |
— | ||
|
79202
|
79202
79202-0K040
Frame Sub-Assy, No.2 Seat Cushion, Lh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
79202-0K040 |
— | ||
|
79202
|
79202
79202-0K280
Frame Sub-Assy, No.2 Seat Cushion, Lh
[08.2016 -] TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SEAT BELT WARNING-W(DRIVER & PASSENGER & REAR SEAT); TGN14#..GEN,LA SEAT BELT WARNING-W(DRIVER & PASSENGER & REAR SEAT) |
79202-0K280 |
— | ||
|
79204A
|
79204A
79204-0K020
Frame Sub-Assy, No.2 Seat Back, Lh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
79204-0K020 |
— | ||
|
79245C
|
79245C
79245-0K040
Pad, No.2 Seat Cushion, Lh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
79245-0K040 |
— | ||
|
79246B
|
79246B
79246-0K080-C0
Cover, No.2 Seat Leg, B
[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4# |
79246-0K080-C0 |
— | ||
|
79285
|
79285
79285-0K030
Pad, No.2 Seat Back, Lh
[11.2015 -] TGN14#..IDNP;GUN143..IDNP..(PHL,TH);GUN142..(24,24G,24Q,24V)..(GCC,IDN,SA) |
79285-0K030 |
— | ||
|
79378B
|
79378B
79378-0K100-C0 Cover, No.3 Seat Cushion Hinge, Lh[11.2015 -] TGN140..RHD..IDNP;GUN142,TGN141..GCC,IDN,LA,SA;GUN143,TGN140..IDNP..(20G,28G,28V). .(PHL,TH) BLACK,TRIM2#,4# |
79378-0K100-C0 |
US $8.11 |
||
|
79378B
|
79378B
79378-0K300-C0
Cover, No.3 Seat Cushion Hinge, Lh
[08.2016 -] TGN140..GEN SEAT COVER MATERIAL-FULL HI FOR MPV&SEAT BELT WARNING-W(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#,4#; TGN14#..GEN,LA SEAT BELT WARNING-W(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#,4# |
79378-0K300-C0 |
— | ||
|
79391
|
79391
79391-0K010
Spring, Rear Seat Cushion
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN143,TGN140..(20,20E,20G,20Q,20V,28E, 28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z, 27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IND,LA,SA) |
79391-0K010 |
— | ||
|
79393
|
79393
79393-0K070
Cushion, Rear No.2 Seat Back
[11.2015 -] TGN140..20V..VN;TGN140..(20E,20G)..(MA,VN);GUN142,TGN141..(24,24G,24Q,24V,27,27G,2 7SR,27SRV)..(GCC,IDN,LA,SA);GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,N)..(GE N,IDN,PHL,TH) |
79393-0K070 |
— | ||
|
82712
|
82712
82711-0K150
Clamp, Wiring Harness
[11.2015 -] GUN143,TGN140..(20,20E,20G,20Q,20V,28E,28G,28V,28Z,N)..(GEN,IDN,IND,PHL,TH);GUN142 ,TGN141..(5F,6FC)..(24,24G,24Q,24V,24Z,27,27G,27SR,27SRV,27V,27Z,G,N)..(GCC,IDN,IN D,LA,SA) |
82711-0K150 |
— | ||
|
90105T0064
|
90105T0064
90105-T0064
BOLT FLANGE
|
90105-T0064 |
— | ||
|
90105T0266
|
90105T0266
90105-T0266
New Genuine Part
|
90105-T0266 |
— | ||
|
9011910886
|
9011910886
90119-10886 BOLT WWASHER |
90119-10886 |
from US $0.92 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.92 |
||
|
9095001999
|
9095001999
90950-01999 PLUG HOLE |
90950-01999 |
from US $1.79 |
