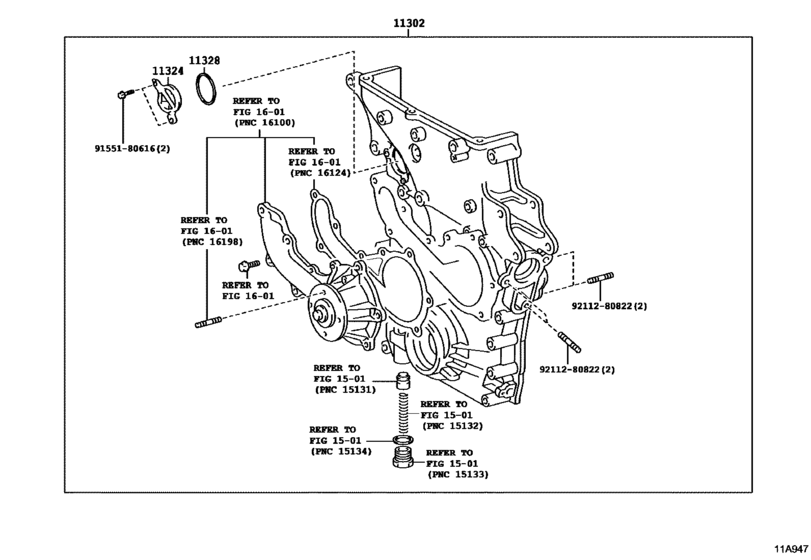

Timing Gear Cover & Rear End Plate ([11.2015 - ] (1511- )1TRFE,2TRFE) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11310-0C040 Cover Sub-Assy, Timing Chain Or Belt[11.2015 -] 2TRFE..TGN141 |
11310-0C040 |
US $582.25 |
||
|
11324
|
11324
11324-0C010
Plate, Timing Chain Cover
[04.2017 -] 1TRFE,2TRFE..TGN14# |
11324-0C010 |
— | ||
|
11324
|
11324
11324-75010
Plate, Timing Chain Cover
[11.2015 - 03.2017] 1TRFE,2TRFE..TGN14# |
11324-75010 |
— | ||
|
11328
|
11328
11328-0C010 Gasket, Timing Gear Or Chain Cover[04.2017 -] 1TRFE,2TRFE..TGN14# |
11328-0C010 |
US $4.13 |
||
|
11328
|
11328
11328-75030 Gasket, Timing Gear Or Chain Cover[11.2015 - 03.2017] 1TRFE,2TRFE..TGN14# |
11328-75030 |
US $3.94 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9211280822
|
9211280822
92112-80822 New Genuine Part |
92112-80822 |
US $1.79 |
