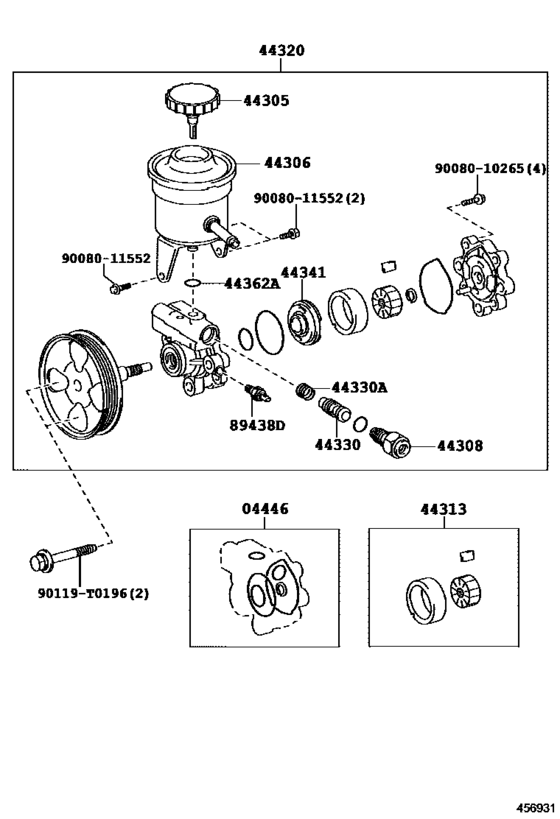

Vane Pump & Reservoir (Power Steering) ([11.2015 - ] (1511- )TGN14#) Diagram Toyota INNOVA/ KIJANG/ REVO/ UNSER/ ZACE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN141
- grade
- 27SR
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- PRODUCT
- IDNP
- DESTINATION
- LA
- Model
- INNOVA
- From
- 11.2015
- Gear Shift Type
- 5F
- Vehicle Model
- INNOVA
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-06110 Gasket Kit, Power Steering Pump[11.2015 -] GUN14#,TGN14# |
04446-06110 |
from US $18.31 |
||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[11.2015 -] TGN14# |
44305-22061 |
from US $15.88 |
||
|
44306
|
44306
44306-0K010 Reservoir Sub-Assy, Vane Pump Oil[11.2015 -] TGN14# |
44306-0K010 |
US $120 |
||
|
44308
|
44308
44308-0K010
Union Sub-Assy, Pressure Port
[11.2015 -] GUN14#,TGN14# |
44308-0K010 |
— | ||
|
44313
|
44313
44313-09010 Rotor, Vane Pump[11.2015 -] GUN14#,TGN14# |
44313-09010 |
US $128 |
||
|
44320
|
44320
44310-0K010 Pump Assy, VaneVANE [11.2015 -] TGN14# |
44310-0K010 |
US $626.61 |
||
|
44330
|
44330
44330-0K130
Valve Assy, Flow Control
[11.2015 -] TGN14# MARK A |
44330-0K130 |
— | ||
|
44330
|
44330
44330-0K140 Valve Assy, Flow ControlFLOW CONTROL [11.2015 -] TGN14# MARK B |
44330-0K140 |
US $116.40 |
||
|
44330
|
44330
44330-0K150 Valve Assy, Flow ControlFLOW CONTROL [11.2015 -] TGN14# MARK C |
44330-0K150 |
US $116.40 |
||
|
44330
|
44330
44330-0K160 Valve Assy, Flow ControlFLOW CONTROL [11.2015 -] TGN14# MARK D |
44330-0K160 |
US $116.40 |
||
|
44330
|
44330
44330-0K170 Valve Assy, Flow ControlFLOW CONTROL [11.2015 -] TGN14# MARK E |
44330-0K170 |
US $116.40 |
||
|
44330
|
44330
44330-0K180 Valve Assy, Flow ControlFLOW CONTROL [11.2015 -] TGN14# MARK F |
44330-0K180 |
US $116.40 |
||
|
44330A
|
44330A
90501-T0001
Spring, Compression(For Flow Control Valve)
[11.2015 -] GUN14#,TGN14# |
90501-T0001 |
— | ||
|
44341
|
44341
44341-06010
Plate, Vane Pump Side, Front
[11.2015 -] GUN14#,TGN14# |
44341-06010 |
— | ||
|
44362A
|
44362A
90080-30093
Ring, O(For Power Steering Suction Port)
[11.2015 -] TGN14# |
90080-30093 |
— | ||
|
89438D
|
89438D
89438-33010 Switch, Power Steering Oil Pressure[11.2015 - 01.2017] TGN14# |
89438-33010 |
from US $29.78 |
||
|
89438D
|
89438D
89438-71010 Switch, Power Steering Oil Pressure[02.2017 -] TGN140..20V..VN;TGN14#..IDNP,INDP,PHLP;TGN140..(20E,20G)..(MA,VN) |
89438-71010 |
from US $25.56 |
||
|
90119T0196
|
90119T0196
90119-T0196
BOLT WWASHER
|
90119-T0196 |
— | ||
|
9008010265
|
9008010265
90080-10265
New Genuine Part
|
90080-10265 |
— | ||
|
9008011552
|
9008011552
90080-11552
New Genuine Part
|
90080-11552 |
— |
