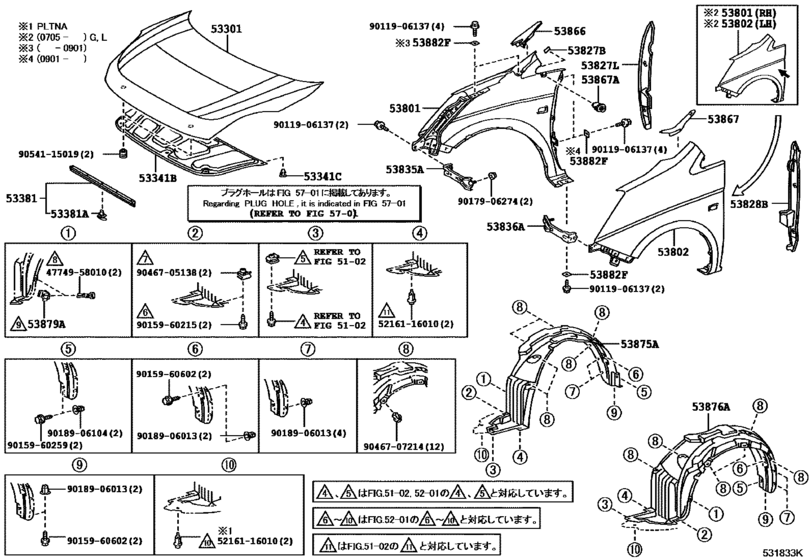

Hood & Front Fender ([09.2004 - ] (0409- )) Diagram Toyota ISIS
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- ZGM11
- grade
- L
- ENGINE
- 3ZRFAE
- From
- 09.2009
- To
- 06.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-44050 Hood Sub-Assy[09.2009 -] ZGM1# |
53301-44050 |
US $575.64 |
||
|
53341B
|
53341B
53341-44041 Insulator, Hood[09.2009 -] ZGM1# |
53341-44041 |
US $92.40 |
||
|
53341C
|
53341C
90467-08124 Clip(For Hood Insulator)[09.2009 -] ZGM1# |
90467-08124 |
from US $1.56 |
||
|
53381
|
53381
53381-44030 Seal, Hood To Radiator Support[09.2009 -] ZGM1# |
53381-44030 |
US $11.47 |
||
|
53381A
|
53381A
67867-12150 Clip(For Hood Air Intake Duct Seal)[09.2009 -] ZGM1# |
67867-12150 |
from US $1.79 |
||
|
53801
|
53801
53801-44070 Fender Sub-Assy, Front Rh[09.2009 -] ZGM1#..G,L |
53801-44070 |
US $530.40 |
||
|
53802
|
53802
53802-44070 Fender Sub-Assy, Front Lh[09.2009 -] ZGM1#..G,L |
53802-44070 |
US $530.40 |
||
|
53827B
|
53827B
53827-13060 Protector, Front Fender Side Panel[09.2009 -] ZGM1# |
53827-13060 |
US $2.33 |
||
|
53827L
|
53827L
53827-44030 Protector, Front Fender Side Panel, Rh[09.2009 -] ZGM1# |
53827-44030 |
US $40.66 |
||
|
53828B
|
53828B
53828-44020 Protector, Front Fender Side Panel, Lh[09.2009 -] ZGM1# |
53828-44020 |
US $40.66 |
||
|
53835A
|
53835A
53835-44020 Brace, Front Fender To Apron, Rh[09.2009 -] ZGM1# |
53835-44020 |
US $8.78 |
||
|
53836A
|
53836A
53836-44020 Brace, Front Fender To Apron, Lh[09.2009 -] ZGM1# |
53836-44020 |
US $9.68 |
||
|
53866
|
53866
53866-44011 Seal, Front Fender To Cowl Side, Rh[09.2009 -] ZGM1# |
53866-44011 |
US $13.44 |
||
|
53867
|
53867
53867-44011 Seal, Front Fender To Cowl Side, Lh[09.2009 -] ZGM1# |
53867-44011 |
US $13.44 |
||
|
53867A
|
53867A
53867-47020 Retainer, Front Fender[09.2009 -] ZGM1# |
53867-47020 |
from US $1.21 |
||
|
53875A
|
53875A
53875-44100 Liner, Front Fender, Rh[09.2009 -] ZGM1#..G,L |
53875-44100 |
US $91.84 |
||
|
53876A
|
53876A
53876-44100 Liner, Front Fender, Lh[09.2009 -] ZGM1#..G,L |
53876-44100 |
US $91.84 |
||
|
53879A
|
53879A
53879-58010 Retainer, Front Fender Liner[09.2009 -] ZGM1# |
53879-58010 |
from US $3.24 |
||
|
53882F
|
53882F
53882-16030 Pad, Rear Bumper, Center[09.2009 -] ZGM1# |
53882-16030 |
from US $0.80 |
||
|
4774958010
|
4774958010
47749-58010 Clip, Pin Hold |
47749-58010 |
from US $0.86 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.72 |
||
| replacements | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
from US $1.50 |
||
|
5216116010
|
5216116010
52161-02020 Clip |
52161-02020 |
US $5.27 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.68 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.09 |
||
|
9015960259
|
9015960259
90159-60259 SCREW |
90159-60259 |
US $1.79 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906104
|
9018906104
90189-06104 CLIP |
90189-06104 |
from US $1.17 |
||
|
9046705138
|
9046705138
90467-05138 Clip(For Front Bumper Retainer) |
90467-05138 |
from US $2.05 |
||
|
9046707214
|
9046707214
90467-07214 Clip, Front Fender Liner |
90467-07214 |
from US $0.84 |
||
|
9054115019
|
9054115019
90541-15019 Cushion, Hood Bumper |
90541-15019 |
from US $3.37 |
||
