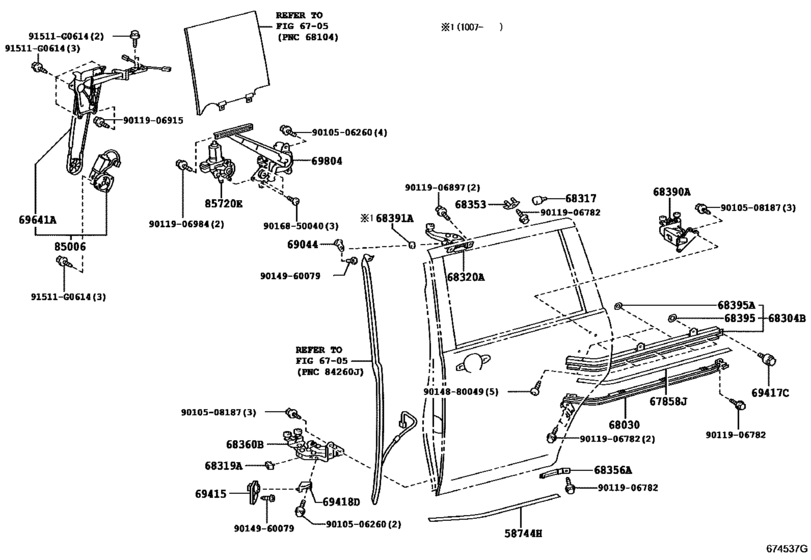

Rear Door Window Regulator & Hinge ([09.2004 - ] ﾚﾌﾄ (0409- )) Diagram Toyota ISIS
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- ZGM11
- grade
- L
- ENGINE
- 3ZRFAE
- From
- 09.2009
- To
- 06.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58744H
|
58744H
58744-44010 Protector, Slide Door Panel, Lh[09.2009 -] ZGM1# |
58744-44010 |
US $74.09 |
||
|
67858J
|
67858J
67858-44010 Protector, Slide Door Rail, Lh[09.2009 -] ZGM1# |
67858-44010 |
US $17.04 |
||
|
68030
|
68030
68030-44010 Guide Assy, Slide Door Cable[09.2009 -] ZGM1# |
68030-44010 |
US $53.99 |
||
|
68304B
|
68304B
68304-44010 Rail Sub-Assy, Slide Door, Center Lh[09.2009 - 05.2012] ZGM1# |
68304-44010 |
US $126.67 |
||
| replacement | |||||
|
68304B
|
68304B
68304-44011 Rail Sub-Assy, Slide Door, Center Lh[09.2009 - 05.2012] ZGM1# |
68304-44011 |
US $94.64 |
||
|
68317
|
68317
68317-52020 Stopper, Slide Door Upper Rail, Rh[09.2009 -] ZGM1# |
68317-52020 |
US $3.58 |
||
|
68319A
|
68319A
68319-46011 Stopper, Slide Door Lwr Roller[09.2009 -] ZGM1# |
68319-46011 |
US $5.38 |
||
|
68320A
|
68320A
68320-44010 Roller Assy, Slide Door, Upper, Lh[09.2009 - 06.2010] ZGM1# |
68320-44010 |
US $66.68 |
||
|
68320A
|
68320A
68320-44020 Roller Assy, Slide Door, Upper, Lh[07.2010 -] ZGM1# |
68320-44020 |
US $50.38 |
||
|
68353
|
68353
68353-52010 Plate, Slide Door Rail Protector, No.2[09.2009 -] ZGM1# |
68353-52010 |
US $2.48 |
||
|
68356A
|
68356A
68356-46010 Plate, Slide Door Rail Protector, No.3 Lh[09.2009 -] ZGM1# |
68356-46010 |
US $3.79 |
||
|
68360B
|
68360B
68360-44010 Roller Assy, Slide Door, Lower Lh[09.2009 -] ZGM1# |
68360-44010 |
US $74.26 |
||
|
68390A
|
68390A
68390-44010 Hinge Assy, Slide Door, Center Lh[09.2009 -] ZGM1# |
68390-44010 |
US $39.75 |
||
|
68391A
|
68391A
68391-28040 Cushion, Slide Door Upper Roller, Rh[07.2010 -] ZGM1# |
68391-28040 |
from US $2.34 |
||
|
68395
|
68395
68395-44010 Packing, Slide Door Center Rail[09.2009 -] ZGM1# |
68395-44010 |
US $4.13 |
||
|
68395A
|
68395A
68395-46020 Packing, Slide Door Center Rail[09.2009 -] ZGM1# |
68395-46020 |
US $5.91 |
||
|
69044
|
69044
69419-46010 Stopper Sub-Assy, Slide Door Down Female, Lh[09.2009 -] ZGM1# |
69419-46010 |
US $9.68 |
||
|
69415
|
69415
69415-44010 Stopper, Slide Door Down Female[09.2009 -] ZGM1# 右側 |
69415-44010 |
US $9.46 |
||
|
69415
|
69415
69415-46030 Stopper, Slide Door Down Female[09.2009 -] ZGM1# 左側 |
69415-46030 |
US $4.08 |
||
|
69417C
|
69417C
69417-44010 Cushion, Slide Door Open Stopper, Rh[09.2009 -] ZGM1#..L,PLTNA ウェルキャブ（助手席リフトアップシート）; ZGM1#..L,PLTNA ウェルキャブ（助手席リフトアップシート ＆ クレーン）; ZGM1#..L,PLTNA ウェルキャブ（サイドリフトアップシート）; ZGM1#..L,PLTNA ウェルキャブ（サイドリフトアップシート ＆ クレーン） |
69417-44010 |
US $10.73 |
||
|
69418D
|
69418D
69417-46010 Stopper, Slide Door Down Male, Lower Lh[09.2009 -] ZGM1# |
69417-46010 |
US $4.95 |
||
|
69641A
|
69641A
69641-44010 Control, Slide Door Attachment, Lh[09.2009 -] ZGM1# |
69641-44010 |
US $609.96 |
||
|
69804
|
69804
69804-44030 Regulator Sub-Assy, Rear Door Window, Lh[09.2009 -] ZGM1# |
69804-44030 |
US $46.16 |
||
|
85006
|
85006
85006-44011 Motor Unit, Slide Door, Lh[09.2009 -] ZGM1# |
85006-44011 |
US $945.36 |
||
|
85720E
|
85720E
85720-46030 Motor Assy, Power Window Regulator, Lh[09.2009 -] ZGM1# |
85720-46030 |
US $281.01 |
||
|
91511G0614
|
91511G0614
91511-G0614 BOLTFLANGE |
91511-G0614 |
US $1.97 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.66 |
||
|
9010508187
|
9010508187
90105-08187 BOLTWATER BASED |
90105-08187 |
from US $1.07 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.66 |
||
|
9011906897
|
9011906897
90119-06897 BOLT WWASHER |
90119-06897 |
from US $0.70 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
|
9014880049
|
9014880049
90148-80049 New Genuine Part |
90148-80049 |
US $1.08 |
||
|
9014960079
|
9014960079
90149-60079 SCREW |
90149-60079 |
US $1.61 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
