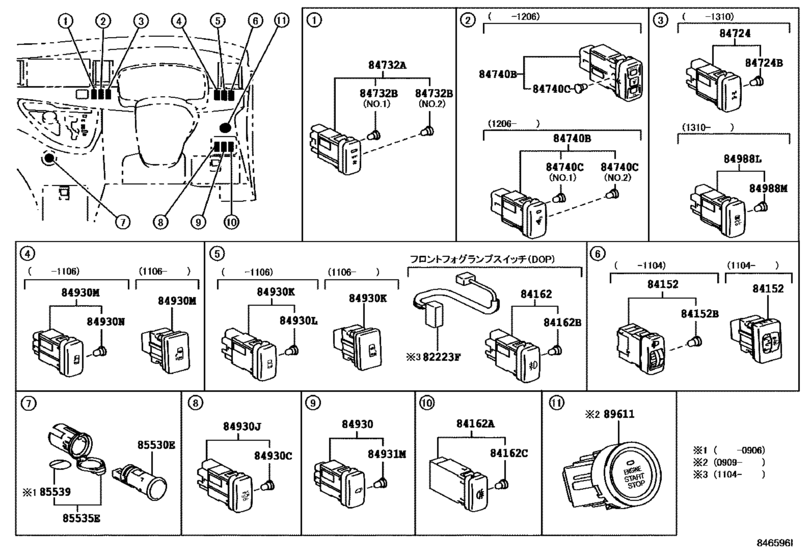

Switch & Relay & Computer ([09.2004 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (0409- )) Diagram Toyota ISIS
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- ZGM11
- grade
- L
- ENGINE
- 3ZRFAE
- From
- 09.2009
- To
- 06.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82223F
|
82223F
82223-44050 Wire, Switch[04.2011 -] ZGM1#..L フロントフォグランプ−有り |
82223-44050 |
US $9.61 |
||
|
84152
|
84152
84152-44020 Switch, Headlamp Leveling[09.2009 - 06.2011] ZGM1#..L |
84152-44020 |
from US $74.95 |
||
|
84152B
|
84152B
90010-08107 Bulb (For Headlamp Leveling Switch)[09.2009 - 06.2011] ZGM1#..L １４Ｖ ４０ＭＡ，グリーン キャップ付き |
90010-08107 |
from US $2.61 |
||
|
84162
|
84162
84160-52040 Switch, Front Fog Lamp[09.2009 -] ZGM1#..L フロントフォグランプ−有り |
84160-52040 |
US $42.51 |
||
|
84162A
|
84162A
84165-33040 Switch, Rear Fog Lamp[09.2009 -] ZGM1# 寒冷地仕様＆リヤフォグランプ−有り |
84165-33040 |
from US $47.78 |
||
|
84162B
|
84162B
90010-01061 Bulb (For Headlamp Leveling Switch)[09.2009 -] ZGM1#..L １４Ｖ０．８４Ｗ，グリーン キャップ付き,フロントフォグランプ−有り |
90010-01061 |
from US $3.53 |
||
|
84162C
|
84162C
90010-01061 Bulb (For Headlamp Leveling Switch)[09.2009 -] ZGM1# １４Ｖ０．８４Ｗ，グリーン キャップ付き,寒冷地仕様＆リヤフォグランプ−有り |
90010-01061 |
from US $3.53 |
||
|
84732A
|
84732A
84730-44030 Switch, Rear Heater Blower[09.2009 - 06.2011] ZGM11..G Ｕ−ＳＥＬＥＣＴＩＯＮ ＊（Ｕ）; ZGM11..G Ｕ−ＳＥＬＥＣＴＩＯＮ ＊（Ｕ）＆寒冷地仕様; ZGM1#..PLTNA ＰＬＡＴＡＮＡ“Ｌｉｍｉｔｅｄ” ＊（Ａ）＆寒冷地仕様; ZGM1#..L Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）＆寒冷地仕様 |
84730-44030 |
US $40.77 |
||
|
84732B
|
84732B
90010-01061 Bulb (For Headlamp Leveling Switch)[09.2009 - 06.2011] ZGM11..G １４Ｖ０．８４Ｗ，グリーン キャップ付き,Ｕ−ＳＥＬＥＣＴＩＯＮ ＊（Ｕ）,ＮＯ．２; ZGM11..G d様,ＮＯ．２; ZGM1#..PLTNA j＆寒冷地仕様,ＮＯ．２; ZGM1#..L n仕様,ＮＯ．２ |
90010-01061 |
from US $3.53 |
||
|
84732B
|
84732B
90010-01089 Bulb, Lane Monitoring Main Switch[09.2009 - 06.2011] ZGM11..G １４Ｖ ０．６３Ｗ，キャップ付き,Ｕ−ＳＥＬＥＣＴＩＯＮ ＊（Ｕ）,ＮＯ．１; ZGM11..G １４Ｖ ０．６３Ｗ，キャップ付き,Ｕ−ＳＥＬＥＣＴＩＯＮ ＊（Ｕ）＆寒冷地仕様,ＮＯ ．１; ZGM1#..PLTNA n仕様,ＮＯ．１; ZGM1#..L １４Ｖ ０．６３Ｗ，キャップ付き,Ｌ“Ｇ−Ｅｄｉｔｉｏｎ” ＊（Ｂ）＆寒冷地仕様,Ｎ Ｏ．１ |
90010-01089 |
US $6.45 |
||
|
84930C
|
84930C
90010-01061 Bulb (For Headlamp Leveling Switch)[09.2009 -] ZGM1# １４Ｖ０．８４Ｗ，グリーン キャップ付き |
90010-01061 |
from US $3.53 |
||
|
84930J
|
84930J
84930-58030 Switch Assy, Door Control[09.2009 -] ZGM1# |
84930-58030 |
from US $36.11 |
||
|
84930M
|
84930M
84930-58021 Switch Assy, Auto Slide Door Control[09.2009 - 06.2011] ZGM1# |
84930-58021 |
US $71.57 |
||
|
84930N
|
84930N
90010-01061 Bulb (For Headlamp Leveling Switch)[09.2009 - 06.2011] ZGM1# |
90010-01061 |
from US $3.53 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[09.2009 -] ZGM1# |
85530-42010 |
from US $26.27 |
||
|
85535E
|
85535E
85535-44050-E0 Cover, Power Outlet Socket, No.2POWER OUTLET SOCKET [09.2009 -] ZGM1# GREGE,TRIM4# |
85535-44050-E0 |
US $7.13 |
||
|
89611
|
89611
89611-30060 Switch, Push StartPUSH START [09.2009 - 09.2010] ZGM1# |
89611-30060 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30064 Switch, Push Start[09.2009 - 09.2010] ZGM1# |
89611-30064 |
US $122.30 |
||
|
89611
|
89611
89611-30061 Switch, Push Start[10.2010 - 06.2011] ZGM1# |
89611-30061 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-30064 Switch, Push Start[10.2010 - 06.2011] ZGM1# |
89611-30064 |
US $122.30 |
||
