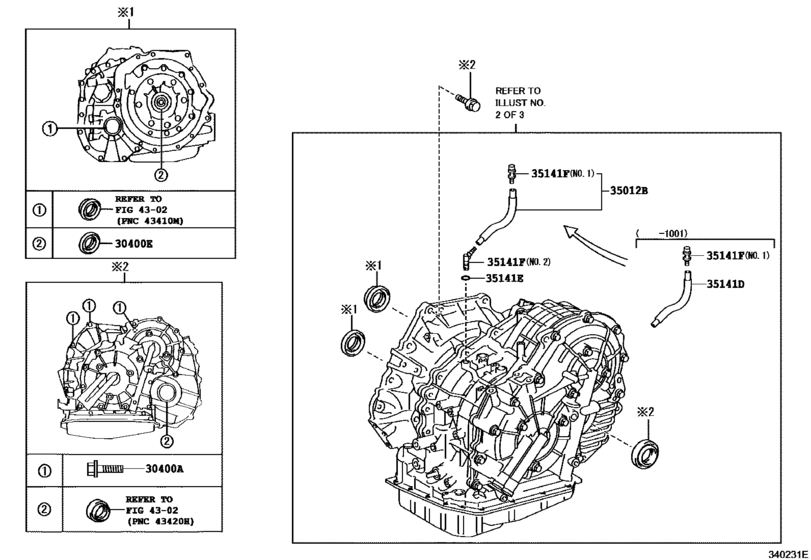

Transaxle Assy(Cvt) ([09.2009 - ] K111 (0909- )ZGM11) Diagram Toyota ISIS
- Year
- 2009 - 2011
- Sales region
- Japan
- Frame
- ZGM11
- grade
- L
- ENGINE
- 3ZRFAE
- From
- 09.2009
- To
- 06.2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400A
|
30400A
91512-61045 Bolt[09.2009 -] ZGM11 |
91512-61045 |
US $2.51 |
||
|
30400E
|
30400E
90311-45025
Seal, Type T Oil(For Cvt Oil Pump)
[09.2009 - 12.2011] ZGM1# |
90311-45025 |
— | ||
| replacement | |||||
|
30400E
|
30400E
90311-45027 Seal, Type T Oil(For Cvt Oil Pump)[09.2009 - 12.2011] ZGM1# |
90311-45027 |
from US $8.42 |
||
|
35012B
|
35012B
3510A-44010 Hose Sub-Assy, Transmission BreatherTRANSMISSION BREATHER [01.2010 - 01.2012] ZGM11 |
3510A-44010 |
US $14.27 |
||
| replacement | |||||
|
35012B
|
35012B
3510A-44012 Hose Sub-Assy, Transmission Breather[01.2010 - 01.2012] ZGM11 |
3510A-44012 |
US $17.81 |
||
|
35141D
|
35141D
35121-63010 Hose(For Breather Plug)[09.2009 - 01.2010] ZGM11 |
35121-63010 |
US $10.34 |
||
| replacement | |||||
|
35141D
|
35141D
3510A-44012 Hose Sub-Assy, Transmission Breather[09.2009 - 01.2010] ZGM11 |
3510A-44012 |
US $17.81 |
||
|
35141E
|
35141E
90301-06005 Ring, O (For Breather Plug)[09.2009 - 05.2016] ZGM10;ZGM11..L |
90301-06005 |
from US $2.30 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[09.2009 -] ZGM11 ＮＯ．１ |
90930-03149 |
from US $3.94 |
||
|
35141F
|
35141F
90930-03164 Plug, Breather(For Transaxle)[09.2009 -] ZGM11 ＮＯ．２ |
90930-03164 |
US $6.45 |
||
