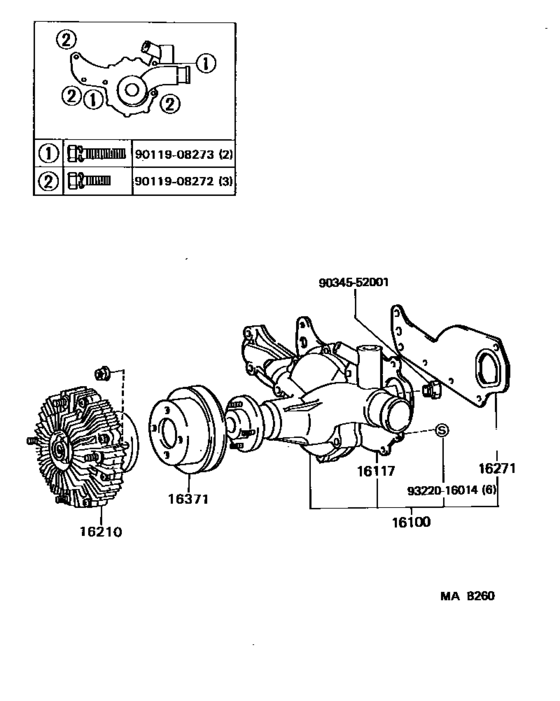

Water Pump ([08.1988 - ] (8808- )3B) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- Europe
- Frame
- BJ75
- grade
- STD
- body
- PIC
- ENGINE
- 3B
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59105 Pump Assy, Engine Water[11.1984 - 08.1988] 13BT,3B..BJ7# |
16100-59105 |
US $265.60 |
||
|
16100
|
16100
16100-59185 Pump Assy, Engine Water[08.1988 - 01.1990] 3B..BJ70,73,75 |
16100-59185 |
US $206.75 |
||
| replacement | |||||
|
16100
|
16100
16100-59187 Pump Assy, Engine Water[08.1988 - 01.1990] 3B..BJ70,73,75 |
16100-59187 |
from US $162.14 |
||
|
16117
|
16117
16117-56040 Plate, Water Pump[11.1984 - 08.1988] 13BT,3B..BJ7# |
16117-56040 |
US $22.13 |
||
|
16117
|
16117
16117-58010
Plate, Water Pump
[08.1988 - 01.1990] 3B..BJ70,73,75 |
16117-58010 |
— | ||
|
16210
|
16210
16210-56040
Coupling Assy, Fluid
[11.1984 - 01.1990] 13BT,3B..BJ7#..LX,STD |
16210-56040 |
— | ||
|
16271
|
16271
16271-56020
Gasket, Water Pump
[11.1984 - 08.1988] 13BT,3B..BJ7# |
16271-56020 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-58010 Gasket, Water Pump[11.1984 - 08.1988] 13BT,3B..BJ7# |
16271-58010 |
from US $11.49 |
||
|
16271
|
16271
16271-56030 Gasket, Water Pump[08.1988 - 01.1990] 13BT,3B..BJ7# |
16271-56030 |
US $12.52 |
||
| replacement | |||||
|
16271
|
16271
16271-58010 Gasket, Water Pump[08.1988 - 01.1990] 13BT,3B..BJ7# |
16271-58010 |
from US $11.49 |
||
|
16371
|
16371
16371-56040
Pulley, Fan
[11.1984 - 08.1988] 13BT,3B..BJ7# |
16371-56040 |
— | ||
|
16371
|
16371
16371-58030
Pulley, Fan
[08.1988 - 01.1990] 3B..BJ70,73,75 |
16371-58030 |
— | ||
|
9011908272
|
9011908272
90119-08272
New Genuine Part
|
90119-08272 |
— | ||
| replacement | |||||
|
9011908272
|
9011908272
91643-80845 New Genuine Part |
91643-80845 |
US $2.51 |
||
|
9011908273
|
9011908273
90119-08273
New Genuine Part
|
90119-08273 |
— | ||
| replacement | |||||
|
9011908273
|
9011908273
91643-80865 New Genuine Part |
91643-80865 |
US $2.51 |
||
|
9034552001
|
9034552001
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block) |
90345-52001 |
from US $4.12 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.66 |
||
