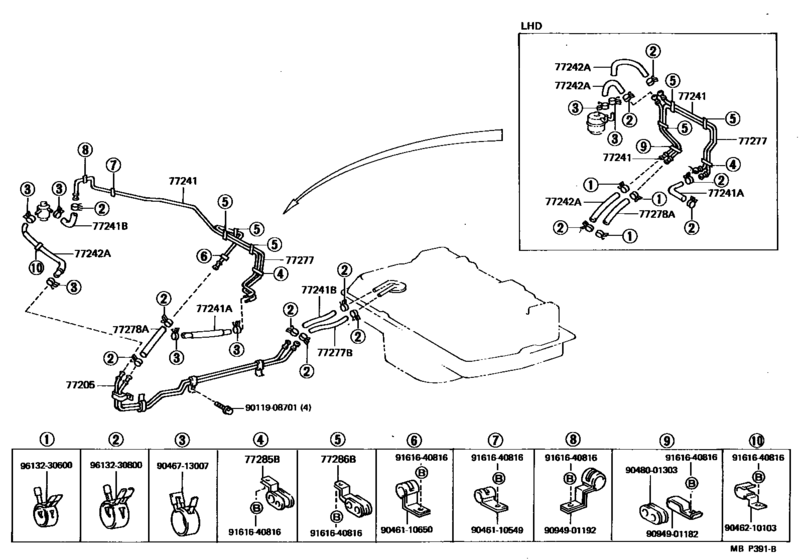

Fuel Tank & Tube ([08.1988 - ] (8808- )BJ75) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1990
- Sales region
- General
- Frame
- BJ75
- grade
- STD
- body
- HT
- ENGINE
- 3B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 11.1984
- To
- 01.1990
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77205
|
77205
77205-60340 Tube Sub-Assy, Fuel MainFUEL MAIN [08.1988 - 01.1990] BJ75 |
77205-60340 |
US $57.66 |
||
|
77205
|
77205
77205-60350 Tube Sub-Assy, Fuel MainFUEL MAIN [08.1988 - 01.1990] BJ75 SUB TANK |
77205-60350 |
US $49.65 |
||
|
77241
|
77241
77253-60050 Tube, Fuel Main, No.1[11.1984 - 08.1988] BJ70,73,75..GEN |
77253-60050 |
US $20.24 |
||
|
77241
|
77241
77253-60070 Tube, Fuel Main, No.1FUEL MAIN, NO.1 [11.1984 - 01.1990] BJ70,73,75..LHD N0.1,W/SEDIMENTER |
77253-60070 |
US $11.07 |
||
|
77241
|
77241
77253-60080 Tube, Fuel Main, No.1FUEL MAIN, NO.1 [11.1984 - 01.1990] BJ70,73,75..LHD N0.2,W/SEDIMENTER |
77253-60080 |
US $12.67 |
||
|
77241A
|
77241A
95332-08040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[11.1984 - 02.1987] BJ70,73,75 *H,L=360,ID=8 |
95332-08040 |
— | ||
| replacement | |||||
|
77241A
|
77241A
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[11.1984 - 02.1987] BJ70,73,75 *H,L=360,ID=8 |
95337-08040 |
US $9.32 |
||
|
77241A
|
77241A
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1988 - 01.1990] BJ70,73,75..LHD *H,L=300; BJ70,73,75..RHD *H,L=240 |
95333-08030 |
US $11.83 |
||
|
77241A
|
77241A
95333-08040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[02.1987 - 08.1988] BJ70,73,75 L=400 |
95333-08040 |
US $9.32 |
||
| replacement | |||||
|
77241A
|
77241A
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[02.1987 - 08.1988] BJ70,73,75 L=400 |
95337-08040 |
US $9.32 |
||
|
77241B
|
77241B
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1988 - 01.1990] BJ75 *H,L=300 |
95333-08030 |
US $11.83 |
||
|
77242A
|
77242A
90447-14030 Hose, Fuel, No.1 (For Main Tube, No.2)FUEL, NO.1 (FOR MAIN TUBE, NO.2) [11.1984 - 01.1990] BJ70,73,75..LHD L=280 |
90447-14030 |
US $14.56 |
||
|
77242A
|
77242A
90447-14031 Hose, Fuel, No.2 (For Main Tube, No.1)[11.1984 - 01.1990] BJ70,73,75..LHD L=300 |
90447-14031 |
US $18.05 |
||
|
77242A
|
77242A
95332-08020
Hose, Fuel Pipe, No.1
[11.1984 - 01.1987] LJ70 *H,L=200,ID=7.6; FJ70,73 *H,L=200,ID=7.6; BJ70,73,75..GEN *H,L=200,ID=7.6 |
95332-08020 |
— | ||
| replacement | |||||
|
77242A
|
77242A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [11.1984 - 01.1987] LJ70 *H,L=200,ID=7.6; FJ70,73 *H,L=200,ID=7.6; BJ70,73,75..GEN *H,L=200,ID=7.6 |
95337-08020 |
from US $5.56 |
||
|
77242A
|
77242A
95333-08020
Hose, Lpg Injector
[01.1987 - 01.1990] LJ70 L=200,ID=8; BJ70,73,75..GEN L=200,ID=8; FJ70,73 L=200,ID=8 |
95333-08020 |
— | ||
| replacement | |||||
|
77242A
|
77242A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [01.1987 - 01.1990] LJ70 L=200,ID=8; BJ70,73,75..GEN L=200,ID=8; FJ70,73 L=200,ID=8 |
95337-08020 |
from US $5.56 |
||
|
77277
|
77277
77257-60030 Tube, Fuel Return, No.1[08.1988 - 01.1990] BJ70,73,75 |
77257-60030 |
US $18.20 |
||
|
77277B
|
77277B
95333-06040 Hose[08.1988 - 01.1990] BJ75 *H,L=400,*H,L=360 |
95333-06040 |
from US $13.08 |
||
|
77278A
|
77278A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1988 - 01.1990] BJ70,73,75 *H,L=200 |
95333-06020 |
— | ||
| replacement | |||||
|
77278A
|
77278A
95337-06020 Hose, Differential Pressure Control[08.1988 - 01.1990] BJ70,73,75 *H,L=200 |
95337-06020 |
from US $10.21 |
||
|
77278A
|
77278A
95333-06030
Hose, Fuel
[08.1988 - 01.1990] BJ75 *H,L=300 |
95333-06030 |
— | ||
| replacement | |||||
|
77278A
|
77278A
95338-06030 HOSE, FUEL[08.1988 - 01.1990] BJ75 *H,L=300 |
95338-06030 |
from US $10.39 |
||
|
77285B
|
77285B
77273-60010
Clamp, Fuel Tube W/grommet, No.6
[08.1988 - 01.1990] BJ70,73,75 |
77273-60010 |
— | ||
|
77286B
|
77286B
77273-60020
Clamp, Fuel Tube W/grommet, No.6
[08.1988 - 01.1990] BJ70,73,75 |
77273-60020 |
— | ||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.99 |
||
|
9046110549
|
9046110549
90461-10549
New Genuine Part
|
90461-10549 |
— | ||
|
9046110650
|
9046110650
90461-10650
Clamp, Accelerator Control Cable
|
90461-10650 |
— | ||
|
9046210103
|
9046210103
90462-10103 New Genuine Part |
90462-10103 |
US $4.22 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9048001303
|
9048001303
90480-01303 Grommet, Fuel Hose |
90480-01303 |
US $1.75 |
||
|
9094901182
|
9094901182
90949-01182 Plate, Fuel Tube Grommet Support |
90949-01182 |
US $2.62 |
||
|
9094901192
|
9094901192
90949-01192
New Genuine Part
|
90949-01192 |
— | ||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
