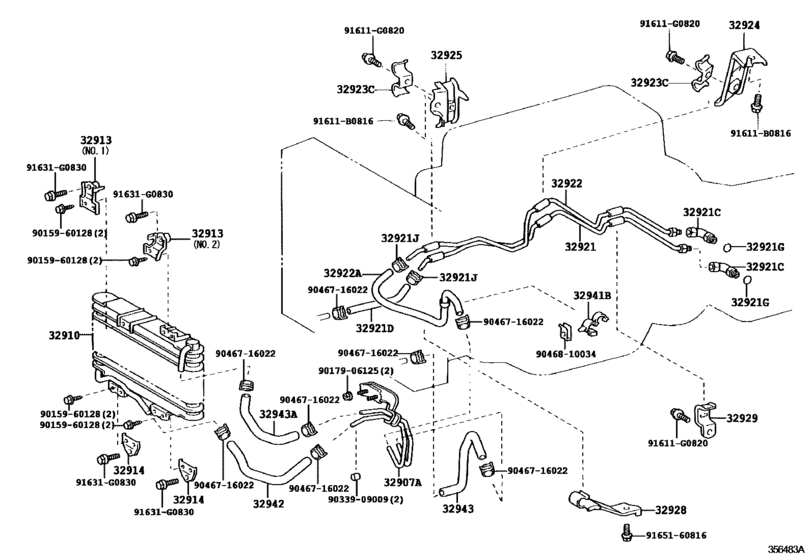

Oil Cooler & Tube (Atm) ([07.2003 - ] A750F,AIR COOLING OIL COOLER (0307- )HDJ100..5FC) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32907A
|
32907A
32907-60100
Tube, Oil Cooler
[08.2002 - 05.2005] HDJ100..ATM |
32907-60100 |
— | ||
|
32910
|
32910
32910-60140 Cooler Assy, OilOIL [08.2002 - 05.2005] HDJ100..ATM |
32910-60140 |
US $905.05 |
||
|
32913
|
32913
32913-60220 Bracket, Oil CoolerOIL COOLER [08.2002 - 05.2005] HDJ100,UZJ100..ATM NO.1 |
32913-60220 |
US $8.04 |
||
|
32913
|
32913
32913-60230 Bracket, Oil CoolerOIL COOLER [08.2002 - 05.2005] HDJ100,UZJ100..ATM NO.2 |
32913-60230 |
US $8.91 |
||
|
32914
|
32914
32914-60060 Stay, Oil CoolerOIL COOLER [08.2002 - 05.2005] HDJ100,UZJ100..ATM |
32914-60060 |
US $6.81 |
||
|
32921
|
32921
32921-60220 Tube, Oil Cooler Inlet, No.1[07.2003 - 05.2005] HDJ100..5FC |
32921-60220 |
US $26.38 |
||
|
32921C
|
32921C
90407-16009 Union(For Oil Cooler Tube)[07.2003 - 05.2005] HDJ100..5FC |
90407-16009 |
from US $6.99 |
||
|
32921D
|
32921D
90445-17096 Hose, Oil Cooler Water Outlet[08.2002 - 05.2005] HDJ100..ATM |
90445-17096 |
from US $11.80 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[07.2003 - 05.2005] HDJ100..5FC |
90301-11006 |
from US $2.50 |
||
|
32921J
|
32921J
90467-16022 Clip(For Water Inlet Hose)[08.2002 - 05.2005] HDJ100,UZJ100..ATM |
90467-16022 |
from US $2.32 |
||
|
32922
|
32922
32922-60240 Tube, Oil Cooler Outlet, No.1[07.2003 - 05.2005] HDJ100..5FC |
32922-60240 |
US $26.38 |
||
|
32922A
|
32922A
32941-60290 Hose(For Oil Cooler Inlet)[08.2002 - 05.2005] HDJ100..ATM |
32941-60290 |
from US $46.76 |
||
|
32922A
|
32922A
32942-60430
Hose(For Oil Cooler Outlet)
[08.2002 - 05.2005] HDJ100..ATM AIR COOLING OIL COOLER |
32942-60430 |
— | ||
|
32923C
|
32923C
90462-12076 Clamp, Automatic Transmission Oil Cooler Tube[07.2003 - 05.2005] HDJ100..5FC |
90462-12076 |
US $4.66 |
||
|
32924
|
32924
32924-60110
Clamp, Oil Cooler Tube, No.2
[08.2002 - 05.2005] HDJ100..ATM |
32924-60110 |
— | ||
|
32925
|
32925
32925-60130
Clamp, Oil Cooler Tube, No.3
[08.2002 - 05.2005] HDJ100..ATM |
32925-60130 |
— | ||
|
32928
|
32928
32928-60120
Clamp, Flexible Hose, No.1
[08.2002 - 05.2005] HDJ100..ATM |
32928-60120 |
— | ||
| replacement | |||||
|
32928
|
32928
32928-60160
Clamp, Flexible Hose, No.1
[08.2002 - 05.2005] HDJ100..ATM |
32928-60160 |
— | ||
|
32928
|
32928
32928-60160
Clamp, Flexible Hose, No.1
[06.2007 -] HDJ100..5FC |
32928-60160 |
— | ||
|
32929
|
32929
32929-24060 Clamp(For Oil Cooler Tube)[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
32929-24060 |
US $5.02 |
||
|
32941B
|
32941B
90464-00166 Clamp, Automatic Transmission Oil Cooler Tube, No.7[08.2002 - 05.2005] HDJ100..ATM |
90464-00166 |
US $2.87 |
||
|
32942
|
32942
90445-17103 Hose, Oil Cooler Tube(For Inlet)[08.2002 - 05.2005] HDJ100,UZJ100..ATM |
90445-17103 |
from US $9.89 |
||
|
32943
|
32943
32943-60220 Hose, Transmission Oil Cooler, No.1TRANSMISSION OIL COOLER, NO.1 [08.2002 - 05.2005] HDJ100..ATM |
32943-60220 |
US $23.76 |
||
|
32943A
|
32943A
32943-60290
Hose, Transmission Oil Cooler, No.2
[08.2002 - 05.2005] HDJ100..ATM |
32943-60290 |
— | ||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
91631G0830
|
91631G0830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $2.15 |
||
|
9017906125
|
9017906125
90179-06125 Nut (For Rear Wiper Arm Setting) |
90179-06125 |
from US $0.72 |
||
|
9033909009
|
9033909009
90339-09009 New Genuine Part |
90339-09009 |
US $2.04 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.32 |
||
|
9046810034
|
9046810034
90468-10034 CLIP |
90468-10034 |
US $2.62 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
