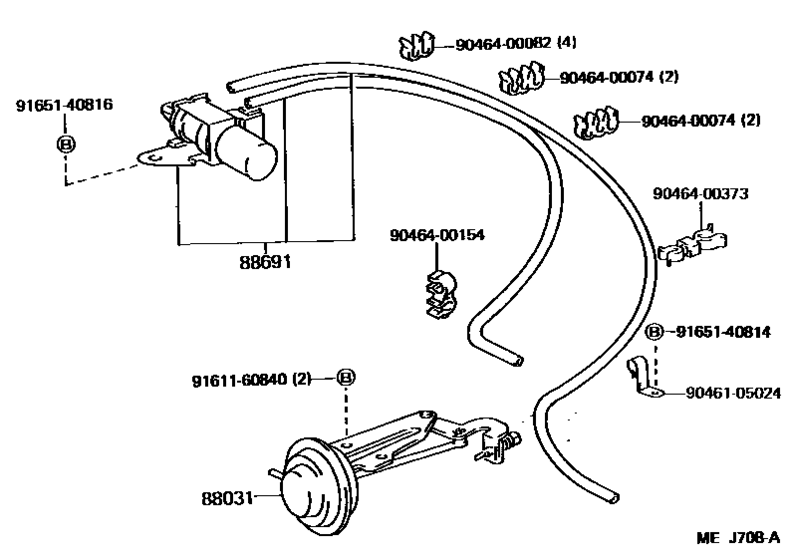

Heating & Air Conditioning - Vacuum Piping ([08.1987 - ] (8708- )LHD..MTM..LUB..GX) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Europe
- Frame
- HJ61
- grade
- GX
- Roof
- SRF
- ENGINE
- 12HT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88691
|
88691
88690-90A13
Valve, Magnet (For Idle Up Device)
[08.1987 - 01.1990] HJ61..LUB..GX |
88690-90A13 |
— | ||
|
9046105024
|
9046105024
90461-05024
New Genuine Part
|
90461-05024 |
— | ||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400154
|
9046400154
90464-00154
New Genuine Part
|
90464-00154 |
— | ||
|
9046400373
|
9046400373
90464-00373 Clamp, Fuel Tube, No.1 |
90464-00373 |
US $3.03 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
