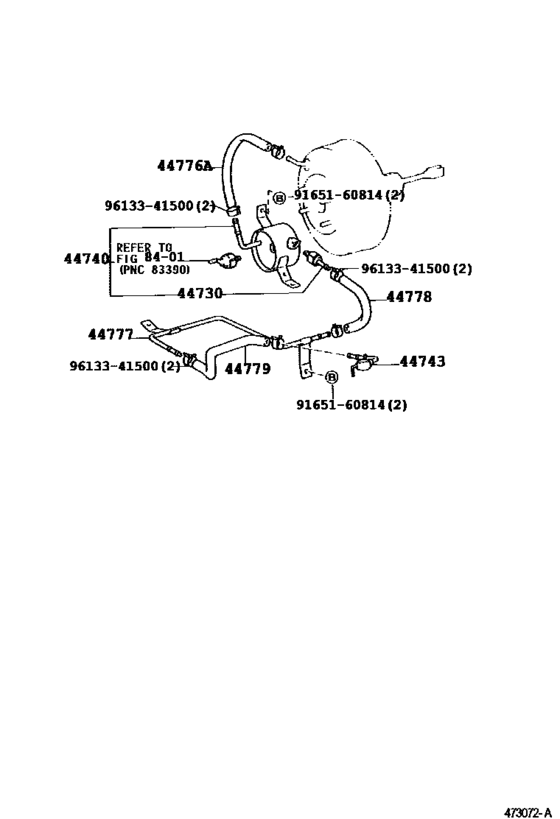

Brake Booster & Vacuum Tube ([01.1990 - 08.1991] (9001-9108)HJ75) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1991
- Sales region
- General
- Frame
- HJ75
- grade
- STD
- body
- PIC
- ENGINE
- 2H
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- LAND CRUISER 70
- From
- 01.1990
- To
- 08.1991
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44730
|
44730
44730-60040 Booster Kit, Brake[01.1990 - 05.1993] HJ75,HZJ7#,LJ7#,PZJ7# |
44730-60040 |
US $77.93 |
||
|
44740
|
44740
44740-60090
Reservoir Assy, Vacuum
[01.1990 - 05.1993] HJ75,HZJ7#,PZJ7# |
44740-60090 |
— | ||
|
44743
|
44743
90405-09064 Union, Vacuum Hose(For Vacuum Pump)[01.1990 - 08.1991] HJ75 |
90405-09064 |
US $6.99 |
||
|
44776A
|
44776A
95441-09280
Hose, Vacuum Reservoir To Brake Booster
[01.1990 - 08.1991] HJ75 |
95441-09280 |
— | ||
| replacement | |||||
|
44776A
|
44776A
95446-09300 Hose, Solenoid To Vacuum Tube[01.1990 - 08.1991] HJ75 |
95446-09300 |
US $11.65 |
||
|
44777
|
44777
44777-60030 Connector, Vacuum Hose, No.1[01.1990 - 08.1991] HJ75 |
44777-60030 |
US $17.91 |
||
|
44778
|
44778
44778-60030 Hose, Connector To Check Valve[01.1990 - 05.1993] HJ75,HZJ7#,LJ7#,PZJ7# |
44778-60030 |
US $14.15 |
||
|
44779
|
44779
95444-09280 Hose, Union To Connector TubeUNION TO CONNECTOR TUBE [01.1990 - 08.1991] HJ75 |
95444-09280 |
US $29.70 |
||
| replacement | |||||
|
44779
|
44779
95447-09300 Hose, Connector Tube To Solenoid, No.2[01.1990 - 08.1991] HJ75 |
95447-09300 |
US $6.29 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.32 |
||
