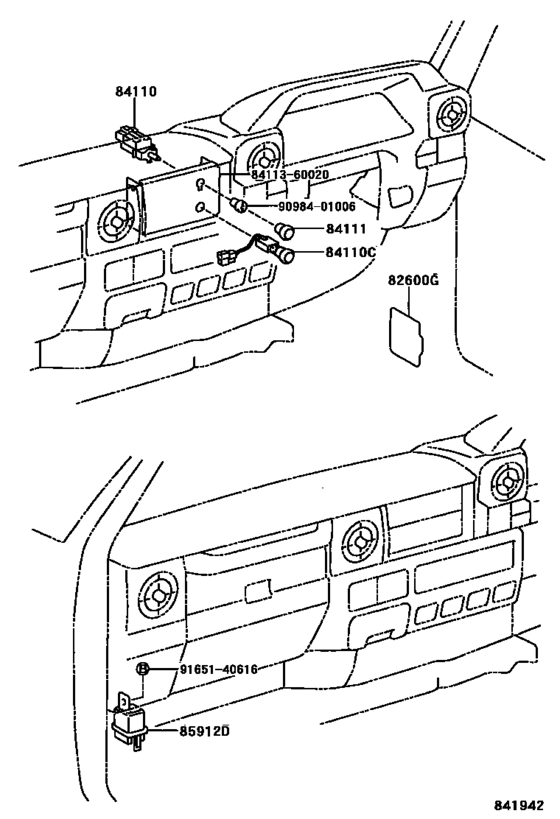

Switch & Relay & Computer ([09.2006 - 11.2006] FOR PAKISTAN GOVERNMENT (9706-9711)HZJ70..SOT ; (9809-9811)HZJ70..SOT ; (0609-0611)HZJ71..SOT) Diagram Toyota LAND CRUISER

Year
1999 - 2007
Sales region
U.S.A.
Frame
HZJ71
grade
STD
body
SOT
ENGINE
1HZ
TRANSMISSION
MTM
DESTINATION
GEN
Model
LAND CRUISER 70
From
08.1999
To
01.2007
Gear Shift Type
5F
Vehicle Model
Land Cruiser
Driver's Position
RHD
Fuel Induction
DSL
Building Condition
CBU

Difficulties in parts search?

Parts list
Switch & Relay & Computer

Difficulties in parts search?

Switch & Relay & Computer
Description OEM Part # Price
82600G
82600G
82683-60032
Plate, Caution(For Fuse)

[08.1992 - 08.2001] HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..CBU;HZJ71,78,79,LJ7#,PZJ7#

82683-60032

82600G
82600G
82683-60131
Plate, Caution(For Fuse)

[09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT

82683-60131

84110
84110

84112-60020

Switch Assy, Light Control, No.1

LIGHT CONTROL, NO.1

[09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT

84112-60020

from US $43.01

84110
84110

84112-69365

Switch Assy, Light Control, No.1

[01.1990 - 05.1993] HZJ71,PZJ70,73..SOT

84112-69365

US $58.24

84110C
84110C
84110-90K00
Switch Assy, Light Control, No.2

[09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT

84110-90K00

84111
84111

84111-60030

Knob, Light Control Switch

[09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT

84111-60030

from US $11.11

85912D
85912D

28380-20010

Relay Assy, Fuel Pump

[09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT

28380-20010

US $63.07

8411360020
8411360020

84113-60020

Bracket, Light Control Rheostat

84113-60020

US $31.01

9098401006
9098401006

90984-01006

Bolt Or Nut, Light Control Switch Set

RHEOSTAT CONTROL SET

90984-01006

US $9.32

9165140616
9165140616

91651-40616

BOLT

91651-40616

from US $0.74

replacement
9165140616
9165140616

91621-60614

Bolt(For Transaxle & Engine Setting)

91621-60614

from US $1.46
