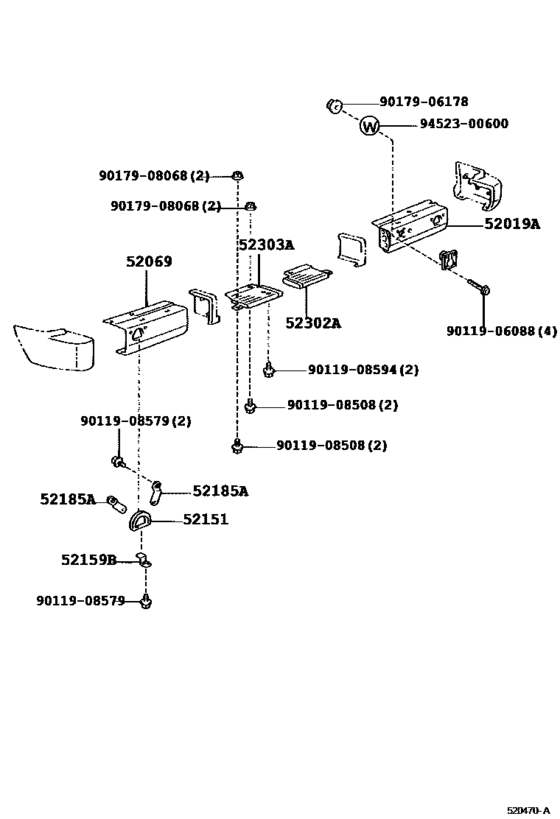

Rear Bumper & Bumper Stay ([09.2006 - 11.2006] FOR PAKISTAN GOVERNMENT (9706-9711)HZJ70..SOT ; (9809-9811)HZJ70..SOT ; (0609-0611)HZJ71..SOT) Diagram Toyota LAND CRUISER
- Year
- 1999 - 2007
- Sales region
- General
- Frame
- HZJ71
- grade
- STD
- body
- SOT
- ENGINE
- 1HZ
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 70
- From
- 08.1999
- To
- 01.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52019A
|
52019A
52019-60011 Bar Sub-Assy, Rear Bumper, RhREAR BUMPER, RH [09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT |
52019-60011 |
US $238.78 |
||
|
52019A
|
52019A
52019-60021 Bar Sub-Assy, Rear Bumper, RhREAR BUMPER, RH [08.1999 - 01.2007] FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,HZJ71,78..STD..(GCC,GEN) |
52019-60021 |
US $257.23 |
||
|
52019A
|
52019A
52019-60031 Bar Sub-Assy, Rear Bumper, Rh[08.1999 - 01.2007] FZJ74;FZJ71,78,HZJ71,78..STD..(GCC,GEN) CHROME PLATED |
52019-60031 |
US $321.36 |
||
|
52069
|
52069
52069-60011 Bar Sub-Assy, Rear Bumper, LhREAR BUMPER, LH [09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT |
52069-60011 |
US $238.78 |
||
|
52069
|
52069
52069-60021 Bar Sub-Assy, Rear Bumper, Lh[08.1999 - 01.2007] FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,HZJ71,78..STD..(GCC,GEN) |
52069-60021 |
US $257.23 |
||
|
52069
|
52069
52069-60031 Bar Sub-Assy, Rear Bumper, Lh[08.1999 - 01.2007] FZJ74;FZJ71,78,HZJ71,78..STD..(GCC,GEN) CHROME PLATED |
52069-60031 |
US $321.36 |
||
|
52151
|
52151
52151-60130
Bumper Assy, Rear
[09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT |
52151-60130 |
— | ||
|
52159B
|
52159B
52159-60060
Plate, Rear Bumper
[09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT |
52159-60060 |
— | ||
|
52185A
|
52185A
52185-60030 Bracket, Rear Bumper Side, RhREAR BUMPER SIDE, RH [09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT |
52185-60030 |
US $12.67 |
||
|
52302A
|
52302A
52302-60010 Step Sub-Assy, Rear Bumper[01.1990 - 05.1993] HZJ78..GEN;FZJ71,74,78..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,75,LJ7#,PZJ7#,RJ7#..(HT,SOT )..(GCC,GEN)..(CBR,DSL,TD) |
52302-60010 |
from US $54.43 |
||
|
52302A
|
52302A
52302-60030
Step Sub-Assy, Rear Bumper
[09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT |
52302-60030 |
— | ||
|
52303A
|
52303A
52303-60010 Step Sub-Assy, Rear Bumper, Lh[01.1990 - 05.1993] HZJ78..GEN;FZJ71,74,78..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,75,LJ7#,PZJ7#,RJ7#..(HT,SOT )..(GCC,GEN)..(CBR,DSL,TD) |
52303-60010 |
from US $54.21 |
||
|
52303A
|
52303A
52303-60030
Step Sub-Assy, Rear Bumper, Lh
[09.2006 - 11.2006] HZJ71..SOT FOR PAKISTAN GOVERNMENT |
52303-60030 |
— | ||
|
9011906088
|
9011906088
90119-06088 Bolt, W/washer (For Floor Shift) |
90119-06088 |
US $1.14 |
||
|
9011908508
|
9011908508
90119-08508 BOLT |
90119-08508 |
US $1.61 |
||
|
9011908579
|
9011908579
90119-08579 New Genuine Part |
90119-08579 |
US $2.18 |
||
|
9011908594
|
9011908594
90119-08594 BOLT |
90119-08594 |
US $1.61 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.78 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.80 |
||
|
9452300600
|
9452300600
94523-00600 New Genuine Part |
94523-00600 |
US $2.33 |
