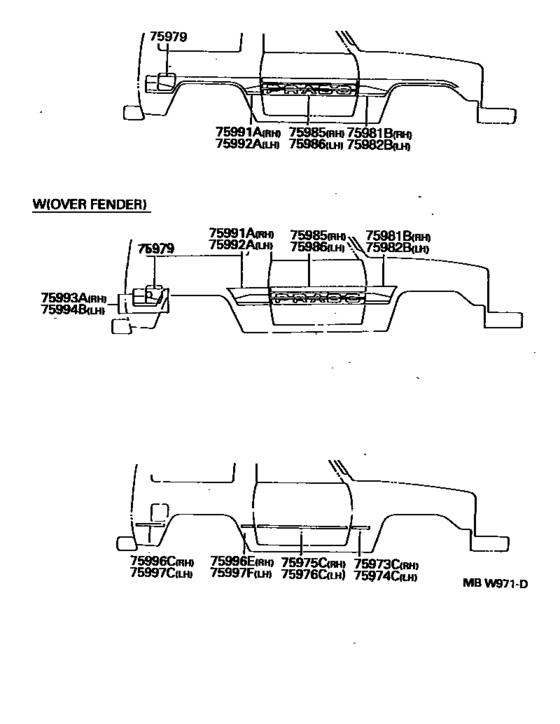

Body Stripe ([05.1993 - ] (9208-9305)LJ71 ; (9305- )KZJ71) Diagram Toyota LAND CRUISER
- Year
- 1993 - 1996
- Sales region
- Japan
- Frame
- KZJ71
- grade
- SX
- body
- WG
- ENGINE
- 1KZTE
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 05.1993
- To
- 04.1996
- Vehicle Model
- Land Cruiser S/T,H/T
- Body Shape
- 3NO
- Emission Regulation
- Y
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75973C
|
75973C
75973-60020-B0 Stripe, Side, Rh No.2 (For Lower)[05.1993 - 01.1995] KZJ7#..3NO BLUISH SILVER M.,24V |
75973-60020-B0 |
US $17.18 |
||
|
75973C
|
75973C
75973-60020-B1 Stripe, Side, Rh No.2 (For Lower)[05.1993 - 01.1995] KZJ7#..3NO DK.BLUISH SILVER M.,26W |
75973-60020-B1 |
US $17.18 |
||
|
75973C
|
75973C
75973-60020-E0 Stripe, Side, Rh No.2 (For Lower)[01.1995 - 04.1996] KZJ7#..3NO FLAXEN M M,25Z ,26Z ,27Z |
75973-60020-E0 |
US $17.18 |
||
|
75974C
|
75974C
75974-60020-B0 Stripe, Side, Lh No.2(For Lower)[05.1993 - 01.1995] KZJ7#..3NO BLUISH SILVER M.,24V |
75974-60020-B0 |
US $17.18 |
||
|
75974C
|
75974C
75974-60020-B1 Stripe, Side, Lh No.2(For Lower)[05.1993 - 01.1995] KZJ7#..3NO DK.BLUISH SILVER M.,26W |
75974-60020-B1 |
US $17.18 |
||
|
75974C
|
75974C
75974-60020-E0 Stripe, Side, Lh No.2(For Lower)[01.1995 - 04.1996] KZJ7#..3NO FLAXEN M M,25Z ,26Z ,27Z |
75974-60020-E0 |
US $17.18 |
||
|
75975C
|
75975C
75975-60040-B0 Stripe, Side, Rh No.3 (For Lower)[05.1993 - 01.1995] KZJ71..3NO BLUISH SILVER M.,24V |
75975-60040-B0 |
US $43.53 |
||
|
75975C
|
75975C
75975-60040-B1 Stripe, Side, Rh No.3 (For Lower)[05.1993 - 01.1995] KZJ71..3NO DK.BLUISH SILVER M.,26W |
75975-60040-B1 |
US $43.53 |
||
|
75975C
|
75975C
75975-60040-E0 Stripe, Side, Rh No.3 (For Lower)[01.1995 - 04.1996] KZJ71..3NO FLAXEN M M,25Z ,26Z ,27Z |
75975-60040-E0 |
US $43.53 |
||
|
75976C
|
75976C
75975-60040-B0 Stripe, Side, Rh No.3 (For Lower)[05.1993 - 01.1995] KZJ71..3NO BLUISH SILVER M.,24V |
75975-60040-B0 |
US $43.53 |
||
|
75976C
|
75976C
75975-60040-B1 Stripe, Side, Rh No.3 (For Lower)[05.1993 - 01.1995] KZJ71..3NO DK.BLUISH SILVER M.,26W |
75975-60040-B1 |
US $43.53 |
||
|
75976C
|
75976C
75975-60040-E0 Stripe, Side, Rh No.3 (For Lower)[01.1995 - 04.1996] KZJ71..3NO FLAXEN M M,25Z ,26Z ,27Z |
75975-60040-E0 |
US $43.53 |
||
|
75979
|
75979
75979-60020-04 Stripe, Fuel Filler Opening Lid[05.1993 - 01.1995] KZJ7#..SX..3NO BLUE,183 ,24V ,26W |
75979-60020-04 |
US $32.76 |
||
|
75979
|
75979
75979-60020-06
Stripe, Fuel Filler Opening Lid
[05.1993 - 01.1995] KZJ7#..5NO BROWN,045 ,181 ,3H4; KZJ78..SX..3NO BROWN,181; KZJ71..3NO BROWN,181 ,3H7 |
75979-60020-06 |
— | ||
|
75981B
|
75981B
75981-60040-04
Stripe, Fender, Rh
[05.1993 - 01.1995] KZJ7#..SX..3NO BLUE,183 ,24V ,26W |
75981-60040-04 |
— | ||
|
75981B
|
75981B
75981-60040-06
Stripe, Fender, Rh
[05.1993 - 01.1995] KZJ78..SX..3NO BROWN,181; KZJ71..3NO BROWN,181 ,3H7 |
75981-60040-06 |
— | ||
| replacement | |||||
|
75981B
|
75981B
75981-60030-06
Stripe, Fender, Rh
[05.1993 - 01.1995] KZJ78..SX..3NO BROWN,181; KZJ71..3NO BROWN,181 ,3H7 |
75981-60030-06 |
— | ||
|
75982B
|
75982B
75982-60040-04
Stripe, Fender, Lh
[05.1993 - 01.1995] KZJ78..SX..3NO BLUE,183 ,24V ,26W; KZJ71..3NO BLUE,183 ,24V ,26W ,3H7 |
75982-60040-04 |
— | ||
|
75982B
|
75982B
75982-60040-06
Stripe, Fender, Lh
[05.1993 - 01.1995] KZJ78..SX..3NO BROWN,181; KZJ71..3NO BROWN,181 ,3H7 |
75982-60040-06 |
— | ||
| replacement | |||||
|
75982B
|
75982B
75982-60030-06
Stripe, Fender, Lh
[05.1993 - 01.1995] KZJ78..SX..3NO BROWN,181; KZJ71..3NO BROWN,181 ,3H7 |
75982-60030-06 |
— | ||
|
75985
|
75985
75985-60190-E0 Stripe, Front Door, Rh[01.1995 - 04.1996] KZJ71..3NO BROWN,25Z ,26Z ,4M7; KZJ71..5NO BROWN,045 ,4M7 |
75985-60190-E0 |
US $131.04 |
||
|
75985
|
75985
75985-60190-J0 Stripe, Front Door, Rh[05.1993 - 01.1995] KZJ71..3NO BLUE,183 ,24V ,26W ,3H7 |
75985-60190-J0 |
US $128.13 |
||
|
75986
|
75986
75986-60190-E0 Stripe, Front Door, Lh[01.1995 - 04.1996] KZJ71..3NO BROWN,25Z ,26Z ,4M7; KZJ71..5NO BROWN,045 ,4M7 |
75986-60190-E0 |
US $131.04 |
||
|
75986
|
75986
75986-60190-J0 Stripe, Front Door, Lh[05.1993 - 01.1995] KZJ71..3NO BLUE,183 ,24V ,26W ,3H7 |
75986-60190-J0 |
US $131.04 |
||
|
75991A
|
75991A
75991-60100-04 Stripe, Quarter, Rh[05.1993 - 01.1995] KZJ71..3NO BLUE,183 ,24V ,26W |
75991-60100-04 |
US $29.85 |
||
|
75991A
|
75991A
75991-60100-06 Stripe, Quarter, Rh[05.1993 - 01.1995] KZJ71..3NO BROWN,181 ,3H7 |
75991-60100-06 |
US $30.72 |
||
|
75992A
|
75992A
75992-60100-04 Stripe, Quarter, Lh[05.1993 - 01.1995] KZJ71..3NO BLUE,183 ,24V ,26W |
75992-60100-04 |
US $29.85 |
||
|
75992A
|
75992A
75992-60100-06 Stripe, Quarter, Lh[05.1993 - 01.1995] KZJ71..3NO BROWN,3H7 |
75992-60100-06 |
US $29.27 |
||
|
75993A
|
75993A
75993-60030-04
Stripe, Quarter, Rear Rh
[05.1993 - 01.1995] KZJ71..3NO BLUE,183 ,24V ,26W |
75993-60030-04 |
— | ||
|
75993A
|
75993A
75993-60030-06 Stripe, Quarter, Rear Rh[05.1993 - 01.1995] KZJ71..3NO BROWN,3H7 |
75993-60030-06 |
US $34.07 |
||
|
75994B
|
75994B
75994-60030-04 Strip, Quarter, Rear Lh[05.1993 - 01.1995] KZJ71..3NO BLUE,183 ,24V ,26W |
75994-60030-04 |
US $65.67 |
||
|
75994B
|
75994B
75994-60030-06 Strip, Quarter, Rear Lh[05.1993 - 01.1995] KZJ71..3NO BROWN,3H7 |
75994-60030-06 |
US $65.81 |
||
|
75996C
|
75996C
75998-60080-B0 Stripe, Rear Body, Rh[05.1993 - 01.1995] KZJ71..3NO BLUISH SILVER M.,24V |
75998-60080-B0 |
US $19.66 |
||
|
75996C
|
75996C
75998-60080-B1 Stripe, Rear Body, Rh[05.1993 - 01.1995] KZJ71..3NO DK.BLUISH SILVER M.,26W |
75998-60080-B1 |
US $19.66 |
||
|
75996C
|
75996C
75998-60080-E0 Stripe, Rear Body, Rh[01.1995 - 04.1996] KZJ71..3NO FLAXEN M M,25Z ,26Z ,27Z |
75998-60080-E0 |
US $19.66 |
||
|
75996E
|
75996E
75996-60010-B0 Stripe, Quarter, Front Lower Rh[05.1993 - 01.1995] KZJ71..3NO BLUISH SILVER M.,24V |
75996-60010-B0 |
US $12.38 |
||
|
75996E
|
75996E
75996-60010-B1 Stripe, Quarter, Front Lower Rh[05.1993 - 01.1995] KZJ71..3NO DK.BLUISH SILVER M.,26W |
75996-60010-B1 |
US $12.38 |
||
|
75996E
|
75996E
75996-60010-E0 Stripe, Quarter, Front Lower Rh[01.1995 - 04.1996] KZJ71..3NO FLAXEN M M,25Z ,26Z ,27Z |
75996-60010-E0 |
US $12.38 |
||
|
75997C
|
75997C
75999-60050-B0 Stripe, Rear Body, Lh[05.1993 - 01.1995] KZJ71..3NO BLUISH SILVER M.,24V |
75999-60050-B0 |
US $19.66 |
||
|
75997C
|
75997C
75999-60050-B1 Stripe, Rear Body, Lh[05.1993 - 01.1995] KZJ71..3NO DK.BLUISH SILVER M.,26W |
75999-60050-B1 |
US $19.66 |
||
|
75997C
|
75997C
75999-60050-E0 Stripe, Rear Body, Lh[01.1995 - 04.1996] KZJ71..3NO FLAXEN M M,25Z ,26Z ,27Z |
75999-60050-E0 |
US $19.66 |
||
|
75997F
|
75997F
75997-60010-B0 Stripe, Quarter, Front Lower Lh[05.1993 - 01.1995] KZJ71..3NO BLUISH SILVER M.,24V |
75997-60010-B0 |
US $12.38 |
||
|
75997F
|
75997F
75997-60010-B1 Stripe, Quarter, Front Lower Lh[05.1993 - 01.1995] KZJ71..3NO DK.BLUISH SILVER M.,26W |
75997-60010-B1 |
US $12.38 |
||
|
75997F
|
75997F
75997-60010-E0 Stripe, Quarter, Front Lower Lh[01.1995 - 04.1996] KZJ71..3NO FLAXEN M M,25Z ,26Z ,27Z |
75997-60010-E0 |
US $12.38 |
||
