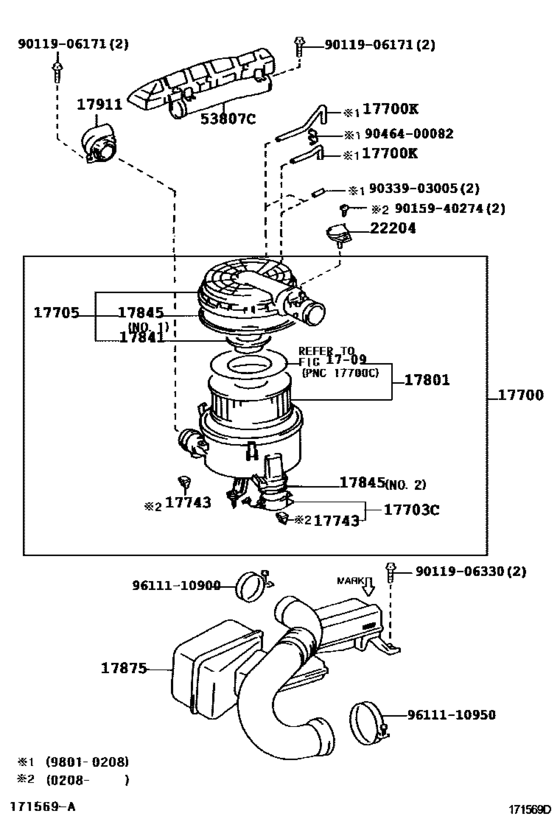

Air Cleaner ([01.1998 - ] (9801- )2UZFE) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-50182
Cleaner Assy, Air
[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
17700-50182 |
— | ||
|
17703C
|
17703C
17703-50020 Cap Sub-Assy, DustDUST [09.2003 - 06.2005] 1FZFE..FZJ100..CHI; 2UZFE..UZJ100..5FC..CHI |
17703-50020 |
US $18.17 |
||
|
17705
|
17705
17705-50091
Cap Sub-Assy, Air Cleaner
[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
17705-50091 |
— | ||
|
17743
|
17743
17743-50010
Valve, Dust Relief
[09.2003 - 06.2005] 1FZFE..FZJ100..CHI; 2UZFE..UZJ100..5FC..CHI |
17743-50010 |
— | ||
|
17801
|
17801
17801-17020 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
17801-17020 |
from US $69.15 |
||
|
17841
|
17841
17841-50010 Gasket, Filter Element[09.2003 - 06.2005] 1FZFE..FZJ100..CHI; 2UZFE..UZJ100..5FC..CHI |
17841-50010 |
US $6.63 |
||
|
17845
|
17845
17845-50010 Gasket, Air Cleaner Cap[09.2003 - 06.2005] 1FZFE..FZJ100..CHI NO.1; 2UZFE..UZJ100..5FC..CHI NO.1 |
17845-50010 |
US $12.17 |
||
|
17845
|
17845
17845-50020 Gasket, Air Cleaner CapAIR CLEANER CAP [09.2003 - 06.2005] 1FZFE..FZJ100..CHI NO.2; 2UZFE..UZJ100..5FC..CHI NO.2 |
17845-50020 |
US $1.62 |
||
|
17875
|
17875
17875-50280 Pipe, Intake Air ConnectorINTAKE AIR CONNECTOR [09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI MARK 17875-50280 |
17875-50280 |
US $314.34 |
||
|
17911
|
17911
52810-60010 Duct, Cool Air Intake, No.1[09.2003 - 06.2005] 1FZFE..FZJ100..CHI; 2UZFE..UZJ100..5FC..CHI |
52810-60010 |
from US $32.35 |
||
|
22204
|
22204
22204-75020 Meter Sub-Assy, Intake Air Flow[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
22204-75020 |
from US $128.88 |
||
|
53807C
|
53807C
53807-60050 Duct Sub-Assy, Front Fender Air, Rh[09.2003 - 06.2005] UZJ100..5FC..CHI |
53807-60050 |
US $90.85 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9011906330
|
9011906330
90119-06330 Bolt |
90119-06330 |
US $1.43 |
||
|
9015940274
|
9015940274
90159-40274
New Genuine Part
|
90159-40274 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.77 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9611110900
|
9611110900
96111-10900 Clamp, Hose |
96111-10900 |
from US $1.19 |
||
|
9611110950
|
9611110950
96111-10950 Clamp(For Air Cleaner Hose, No.1) |
96111-10950 |
from US $2.79 |
