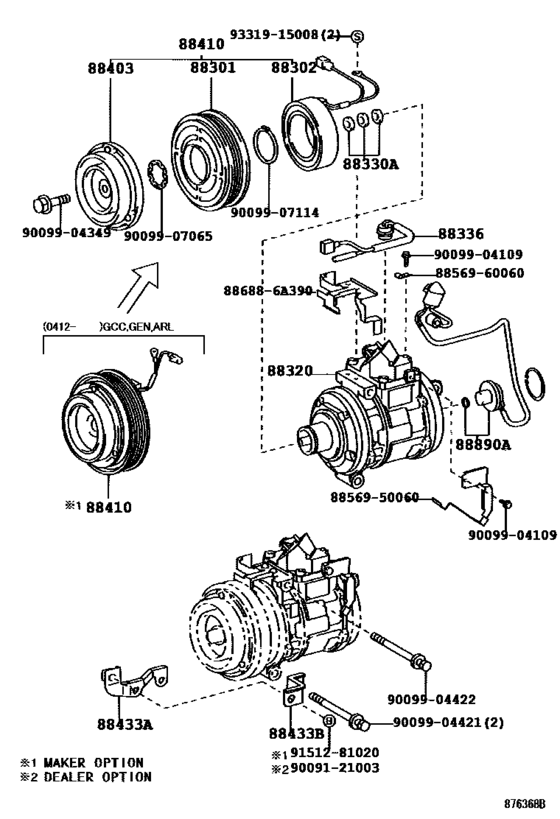

Heating & Air Conditioning - Compressor ([01.1998 - ] (9801- )UZJ100) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-60070
Rotor Sub-Assy, Magnet Clutch
[09.2003 - 06.2005] UZJ100..CHI |
88412-60070 |
— | ||
|
88302
|
88302
88411-3A030
Stator Sub-Assy, Magnet Clutch
[09.2003 - 06.2005] UZJ100..CHI |
88411-3A030 |
— | ||
|
88320
|
88320
88320-60680
Compressor Assy, Cooler
[09.2003 - 01.2005] UZJ100..CHI |
88320-60680 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-60681 Compressor Assy, Cooler[09.2003 - 01.2005] UZJ100..CHI |
88320-60681 |
US $1,167.60 |
||
|
88320
|
88320
88320-60681 Compressor Assy, Cooler[01.2005 - 06.2005] UZJ100..5FC..CHI (J) |
88320-60681 |
US $1,167.60 |
||
|
88330A
|
88330A
88335-14020 Washer[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
88335-14020 |
from US $1.24 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[09.2003 - 06.2005] FZJ100,UZJ100..CHI |
88403-30290 |
from US $86.66 |
||
|
88410
|
88410
88410-60410 Clutch Assy, Magnet[09.2003 - 06.2005] UZJ100..CHI |
88410-60410 |
US $500.68 |
||
|
88433A
|
88433A
88433-60030
Stay, Compressor
[09.2003 - 06.2005] UZJ100..5FC..CHI |
88433-60030 |
— | ||
|
88433B
|
88433B
88433-60040
Stay, Compressor
[09.2003 - 06.2005] UZJ100..5FC..CHI |
88433-60040 |
— | ||
|
88890A
|
88890A
88336-50040
Pick Up, Assy
[09.2003 - 06.2005] UZJ100..5FC..CHI |
88336-50040 |
— | ||
|
886886A390
|
886886A390
88688-6A390
Bracket, Cooler Diaphragm
|
88688-6A390 |
— | ||
|
8856950060
|
8856950060
88569-50060
Clamp (for Cooler Relay)
|
88569-50060 |
— | ||
|
8856960060
|
8856960060
88569-60060
Clamp (for Cooler Relay)
|
88569-60060 |
— | ||
|
9009121003
|
9009121003
90091-21003
New Genuine Part
|
90091-21003 |
— | ||
|
9009904109
|
9009904109
90099-04109
New Genuine Part
|
90099-04109 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904421
|
9009904421
90099-04421
BOLT WWASHER
|
90099-04421 |
— | ||
|
9009904422
|
9009904422
90099-04422
BOLT WWASHER
|
90099-04422 |
— | ||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.13 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9151281020
|
9151281020
91512-81020 BOLT FLANGE |
91512-81020 |
US $1.31 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
