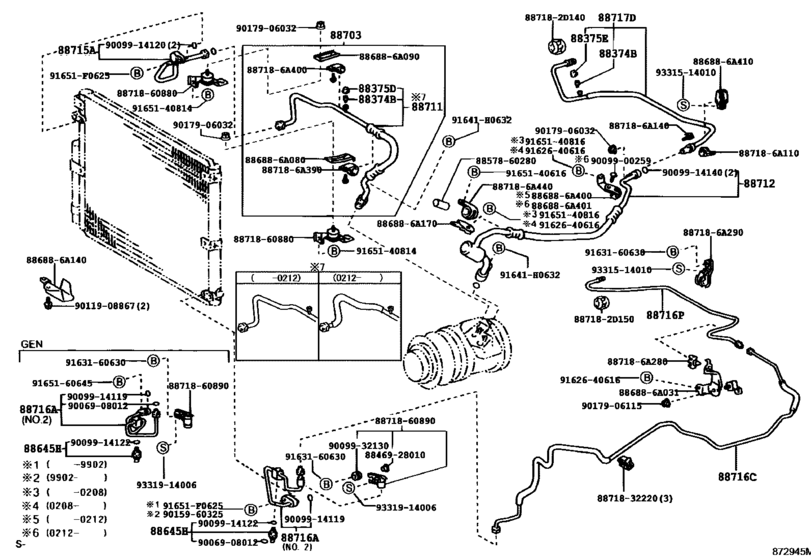

Heating & Air Conditioning - Cooler Piping ([01.1998 - ] FRONT(SINGLE AIR CONDITIONER) (9801- )UZJ100..LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[09.2003 - 06.2005] UZJ100..5FC..CHI |
88374-30010 |
from US $3.12 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[09.2003 - 06.2005] UZJ100..5FC..CHI |
88375-30280 |
from US $0.98 |
||
|
88645H
|
88645H
88645-60030 Switch, Pressure No.1[09.2003 - 06.2005] UZJ100..5FC..CHI |
88645-60030 |
from US $85.26 |
||
|
88703
|
88703
88703-60121 Hose Sub-Assy, DischargeDISCHARGE [09.2003 - 06.2005] UZJ100..5FC..CHI |
88703-60121 |
US $336.34 |
||
|
88711
|
88711
88711-60471 Hose, Cooler Refrigerant Discharge, No.1[09.2003 - 06.2005] UZJ100..5FC..CHI |
88711-60471 |
from US $217.09 |
||
|
88712
|
88712
88712-60851 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [06.2005 -] UZJ100..CHI |
88712-60851 |
US $230.05 |
||
| replacement | |||||
|
88712
|
88712
88704-60153 Hose, Cooler Refrigerant Suction, No.1SUCTION [06.2005 -] UZJ100..CHI |
88704-60153 |
US $248.98 |
||
|
88715A
|
88715A
88715-60112 Pipe, Cooler Refrigerant Discharge, A[09.2003 - 06.2005] UZJ100..5FC..CHI |
88715-60112 |
from US $63.36 |
||
|
88716A
|
88716A
88726-60701 Pipe, Cooler Refrigerant Liquid, A[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
88726-60701 |
US $163.07 |
||
|
88716C
|
88716C
88726-60521 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
88726-60521 |
US $168.90 |
||
|
88716P
|
88716P
88726-60740
Pipe, Cooler Refrigerant Liquid, P
[09.2003 - 06.2005] UZJ100..5FC..CHI |
88726-60740 |
— | ||
|
88717D
|
88717D
88717-6A140
Pipe, Cooler Refrigerant Suction, D
[06.2005 -] UZJ100..CHI |
88717-6A140 |
— | ||
|
88717D
|
88717D
88717-6A141
Pipe, Cooler Refrigerant Suction, D
[09.2003 - 06.2005] UZJ100..5FC..CHI |
88717-6A141 |
— | ||
|
91641H0632
|
91641H0632
91641-H0632 BOLT WWASHER |
91641-H0632 |
US $1.60 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
886886A031
|
886886A031
88688-6A031
Bracket, Cooler Diaphragm
|
88688-6A031 |
— | ||
|
886886A080
|
886886A080
88688-6A080
Bracket, Cooler Diaphragm
|
88688-6A080 |
— | ||
|
886886A090
|
886886A090
88688-6A090
Bracket, Cooler Diaphragm
|
88688-6A090 |
— | ||
|
886886A140
|
886886A140
88688-6A140
Bracket, Cooler Diaphragm
|
88688-6A140 |
— | ||
|
886886A170
|
886886A170
88688-6A170
Bracket, Cooler Diaphragm
|
88688-6A170 |
— | ||
|
886886A400
|
886886A400
88688-6A400
Bracket, Cooler Diaphragm
|
88688-6A400 |
— | ||
|
886886A401
|
886886A401
88688-6A401
Bracket, Cooler Diaphragm
|
88688-6A401 |
— | ||
|
886886A410
|
886886A410
88688-6A410
Bracket, Cooler Diaphragm
|
88688-6A410 |
— | ||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
887186A110
|
887186A110
88718-6A110
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A110 |
— | ||
|
887186A140
|
887186A140
88718-6A140
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A140 |
— | ||
|
887186A280
|
887186A280
88718-6A280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A280 |
— | ||
|
887186A290
|
887186A290
88718-6A290
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A290 |
— | ||
|
887186A390
|
887186A390
88718-6A390
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A390 |
— | ||
|
887186A400
|
887186A400
88718-6A400
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A400 |
— | ||
|
887186A440
|
887186A440
88718-6A440
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A440 |
— | ||
|
8846928010
|
8846928010
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
8857860280
|
8857860280
88578-60280
Paking, Cooler Air Duct
|
88578-60280 |
— | ||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.46 |
||
|
8871860880
|
8871860880
88718-60880 Clamp, Piping |
88718-60880 |
US $29.95 |
||
|
8871860890
|
8871860890
88718-60890
Pipe, Cooler Refrigerant Suction, No.2
|
88718-60890 |
— | ||
|
9006908012
|
9006908012
90069-08012 New Genuine Part |
90069-08012 |
US $4.37 |
||
|
9009900259
|
9009900259
90099-00259
New Genuine Part
|
90099-00259 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.70 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.21 |
||
|
9009914140
|
9009914140
90099-14140 ORING |
90099-14140 |
US $3.32 |
||
|
9009932130
|
9009932130
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9011908867
|
9011908867
90119-08867 BOLT WWASHER |
90119-08867 |
US $1.97 |
||
|
9015960325
|
9015960325
90159-60325 SCREW WWASHER |
90159-60325 |
US $0.96 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9163160630
|
9163160630
91631-60630 BOLT WWASHER |
91631-60630 |
US $1.75 |
||
| replacement | |||||
|
9163160630
|
9163160630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165160645
|
9165160645
91651-60645 BOLT |
91651-60645 |
US $1.79 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
