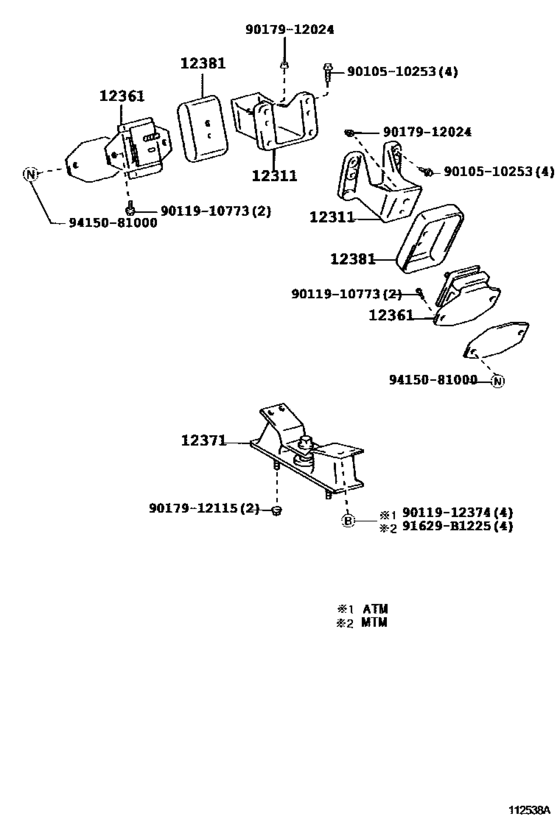

Mounting ([01.1998 - ] (9801- )2UZFE) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-50090 Bracket, Engine Mounting, Front No.1 Rh[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
12311-50090 |
US $71.34 |
||
|
12361
|
12361
12361-50121 Insulator, Engine Mounting, Front[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
12361-50121 |
from US $134.86 |
||
|
12371
|
12371
12371-50081 Insulator, Engine Mounting, Rear No.1[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
12371-50081 |
from US $85.43 |
||
|
12381
|
12381
12381-50100 Stabilizer, Engine Mounting[09.2003 - 06.2005] 2UZFE..UZJ100..5FC..CHI |
12381-50100 |
US $100.89 |
||
|
91629B1225
|
91629B1225
91629-B1225 BOLT WWASHER |
91629-B1225 |
from US $1.93 |
||
|
9010510253
|
9010510253
90105-10253 BOLT |
90105-10253 |
from US $1.35 |
||
|
9011910773
|
9011910773
90119-10773
BOLTWWASHER
|
90119-10773 |
— | ||
| replacement | |||||
|
9011910773
|
9011910773
90119-10813 BOLT W-WASHER |
90119-10813 |
US $3.05 |
||
|
9011912374
|
9011912374
90119-12374 New Genuine Part |
90119-12374 |
US $3.19 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.09 |
||
|
9017912115
|
9017912115
90179-12115 NUT |
90179-12115 |
from US $1.60 |
||
|
9415081000
|
9415081000
94150-81000 NUT FLANGE |
94150-81000 |
US $1.79 |
||
