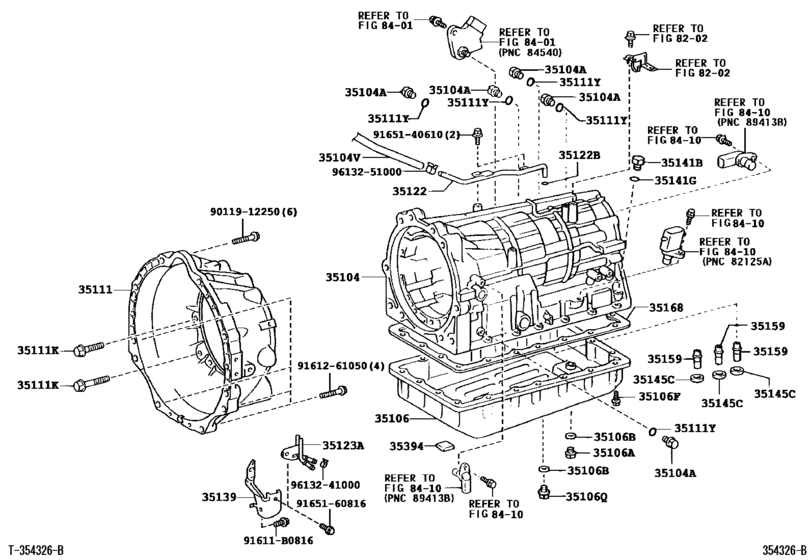

Transmission Case & Oil Pan (Atm) ([08.2003 - ] A750F (0308- )UZJ100..5FC) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35104
|
35104
35104-60220 Case Sub-Assy, Automatic Transmission[09.2003 - 06.2005] UZJ100..5FC..CHI |
35104-60220 |
US $1,391.94 |
||
| replacement | |||||
|
35104
|
35104
35104-60221 Case Sub-Assy, Automatic Transmission[09.2003 - 06.2005] UZJ100..5FC..CHI |
35104-60221 |
US $607.15 |
||
|
35104
|
35104
35104-60221 Case Sub-Assy, Automatic Transmission[06.2005 -] UZJ100..5FC..CHI |
35104-60221 |
US $607.15 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[09.2003 - 06.2005] UZJ100..5FC..CHI |
90341-08001 |
from US $1.52 |
||
|
35104V
|
35104V
90445-11156 Hose (For Breather Plug)[09.2003 - 06.2005] UZJ100..5FC..CHI |
90445-11156 |
US $8.15 |
||
|
35106
|
35106
35106-60180 Pan Sub-Assy, Automatic Transmission Oil[09.2003 - 06.2005] UZJ100..5FC..CHI |
35106-60180 |
from US $75.43 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[09.2003 - 06.2005] UZJ100..5FC..CHI |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[09.2003 - 06.2005] UZJ100..5FC..CHI |
35178-30010 |
from US $1.77 |
||
|
35106F
|
35106F
90119-06117
Bolt (For Automatic Transmission Oil Pan)
[09.2003 - 06.2005] UZJ100..5FC..CHI |
90119-06117 |
— | ||
| replacement | |||||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[09.2003 - 06.2005] UZJ100..5FC..CHI |
90119-06173 |
from US $0.76 |
||
|
35106F
|
35106F
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[10.2006 -] HDJ100,UZJ100..5FC..(ARL,GCC,GEN); UZJ100..5FC..CHI |
90119-06173 |
from US $0.76 |
||
|
35106Q
|
35106Q
90341-10021 Plug, Drain(Hv) (Check)[09.2003 - 06.2005] UZJ100..5FC..CHI |
90341-10021 |
from US $2.07 |
||
|
35111
|
35111
35111-60130 Housing, Automatic Transmission[09.2003 - 06.2005] UZJ100..5FC..CHI |
35111-60130 |
US $331.97 |
||
|
35111K
|
35111K
90119-10232 Bolt (For Transmission Housing & Case Setting)[02.2004 - 06.2005] UZJ100..5FC..CHI *10-1.5PX35-30 |
90119-10232 |
US $1.97 |
||
|
35111K
|
35111K
90119-10947 Bolt (For Transmission Housing & Case Setting)[02.2004 - 06.2005] UZJ100..5FC..CHI *10-1.50PX35-29.3 |
90119-10947 |
from US $0.96 |
||
|
35111K
|
35111K
90119-12378 Bolt (For Transmission Housing & Case Setting)[09.2003 - 06.2005] UZJ100..5FC..CHI *12-1.75PX38-30 |
90119-12378 |
from US $1.52 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[09.2003 - 06.2005] UZJ100..5FC..CHI |
90301-06196 |
from US $2.24 |
||
|
35122
|
35122
35122-60020 Tube, Breather (For Automatic Transaxle)[09.2003 - 06.2005] UZJ100..5FC..CHI |
35122-60020 |
US $27.66 |
||
|
35122B
|
35122B
90301-04014 O Ring, Transmission Breather[09.2003 - 06.2005] UZJ100..5FC..CHI |
90301-04014 |
US $1.22 |
||
|
35123A
|
35123A
35123-60040 Skirt, Transmission Breather[09.2003 - 11.2004] UZJ100..CHI |
35123-60040 |
US $7.28 |
||
| replacement | |||||
|
35123A
|
35123A
35123-60060 Skirt, Transmission Breather[09.2003 - 11.2004] UZJ100..CHI |
35123-60060 |
US $7.28 |
||
|
35123A
|
35123A
35123-60060 Skirt, Transmission Breather[11.2004 - 06.2005] UZJ100..5FC..CHI |
35123-60060 |
US $7.28 |
||
|
35123A
|
35123A
35123-60070
Skirt, Transmission Breather
[06.2005 -] UZJ100..5FC..CHI |
35123-60070 |
— | ||
|
35139
|
35139
35139-60020 Bracket, Oil Filler Tube[09.2003 - 06.2005] UZJ100..5FC..CHI |
35139-60020 |
US $9.03 |
||
|
35141B
|
35141B
90341-14011 Plug, Automatic Transmission Case[09.2003 - 06.2005] UZJ100..5FC..CHI |
90341-14011 |
from US $3.22 |
||
|
35141G
|
35141G
90301-11006 O Ring, Transaxle Case Elbow[09.2003 - 06.2005] UZJ100..5FC..CHI |
90301-11006 |
from US $2.50 |
||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[09.2003 - 06.2005] UZJ100..5FC..CHI |
35145-60020 |
from US $6.45 |
||
|
35159
|
35159
35159-60010 Gasket, Brake Drum[09.2003 - 06.2005] UZJ100..5FC..CHI |
35159-60010 |
from US $5.59 |
||
|
35168
|
35168
35168-60010 Gasket, Automatic Transmission Oil Pan[09.2003 - 06.2005] UZJ100..5FC..CHI |
35168-60010 |
from US $13.98 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[09.2003 - 06.2005] FZJ100,UZJ100..ATM..CHI |
35394-30011 |
from US $5.62 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9011912250
|
9011912250
90119-12250 Bolt(For Transaxle & Engine Setting) |
90119-12250 |
from US $1.60 |
||
|
9161261050
|
9161261050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.27 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
