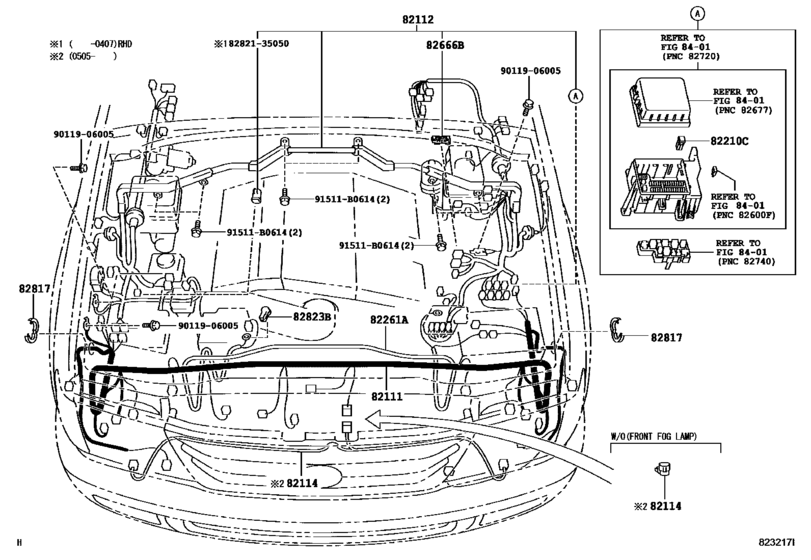

Wiring & Clamp ([08.2002 - ] ENGINE ROOM (0208- )UZJ100) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- UZJ100
- grade
- VX
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- LAND CRUISER 100
- From
- 09.2003
- To
- 09.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-0G020
Wire, Engine Room Main
[09.2003 - 06.2005] UZJ100..5FC..CHI (L) |
82111-0G020 |
— | ||
|
82111
|
82111
82111-0G022
Wire, Engine Room Main
[06.2005 -] UZJ100..CHI |
82111-0G022 |
— | ||
| replacement | |||||
|
82111
|
82111
82111-6A076
Wire, Engine Room Main
[06.2005 -] UZJ100..CHI |
82111-6A076 |
— | ||
|
82111
|
82111
82111-6A074 Wire, Engine Room Main[09.2003 - 06.2005] UZJ100..5FC..CHI (J) |
82111-6A074 |
US $500.86 |
||
|
82112
|
82112
82112-0G010
Wire, Engine Room, No.2
[09.2003 - 01.2005] UZJ100..CHI (L) |
82112-0G010 |
— | ||
|
82112
|
82112
82112-0G011
Wire, Engine Room, No.2
[01.2005 - 06.2005] UZJ100..VX..CHI |
82112-0G011 |
— | ||
| replacement | |||||
|
82112
|
82112
82112-0G012
Wire, Engine Room, No.2
[01.2005 - 06.2005] UZJ100..VX..CHI |
82112-0G012 |
— | ||
|
82112
|
82112
82112-0G012
Wire, Engine Room, No.2
[02.2007 -] UZJ100..VX..CHI |
82112-0G012 |
— | ||
|
82112
|
82112
82112-60444 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [09.2003 - 01.2005] UZJ100..CHI (J) |
82112-60444 |
US $2,256.80 |
||
|
82114
|
82114
82114-0G010
Wire, Engine Room, No.4
[06.2005 -] FZJ100,UZJ100..CHI |
82114-0G010 |
— | ||
| replacement | |||||
|
82114
|
82114
82114-60060 Wire, Engine Room, No.4[06.2005 -] FZJ100,UZJ100..CHI |
82114-60060 |
US $55.91 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.38 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[01.1998 -] FZJ100..CHI;UZJ100..VX..CHI 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08291 Fusible Link[04.2000 -] FZJ100..CHI;UZJ100..VX..CHI 80A |
90982-08291 |
US $7.88 |
||
|
82261A
|
82261A
82261-0G010
Wire, Alternator
[09.2003 - 01.2005] UZJ100..CHI (L) |
82261-0G010 |
— | ||
|
82261A
|
82261A
82261-0G020
Wire, Alternator
[01.2005 - 06.2005] UZJ100..5FC..CHI (L) |
82261-0G020 |
— | ||
|
82261A
|
82261A
82261-0G021
Wire, Alternator
[06.2005 -] UZJ100..CHI |
82261-0G021 |
— | ||
| replacement | |||||
|
82261A
|
82261A
82261-60142 Wire, Alternator[06.2005 -] UZJ100..CHI |
82261-60142 |
US $218.40 |
||
|
82261A
|
82261A
82261-60061 Wire, AlternatorALTERNATOR [09.2003 - 01.2005] UZJ100..CHI (J) |
82261-60061 |
US $218.40 |
||
|
82261A
|
82261A
82261-60141 Wire, Alternator[01.2005 - 06.2005] UZJ100..5FC..CHI (J) |
82261-60141 |
US $218.40 |
||
|
82666B
|
82666B
82666-60060 Holder, Connector No.2[09.2003 - 06.2005] FZJ100,UZJ100..CHI |
82666-60060 |
US $3.67 |
||
|
82817
|
82817
82817-24110 Protector, Wiring Harness, No.1[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
82817-24110 |
US $5.42 |
||
|
82823B
|
82823B
82823-22050 Cap, Terminal, No.1[09.2003 - 06.2005] FZJ100..CHI;UZJ100..5FC..CHI |
82823-22050 |
US $6.99 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
8282135050
|
8282135050
82821-35050 Cover, Connector |
82821-35050 |
US $2.04 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
