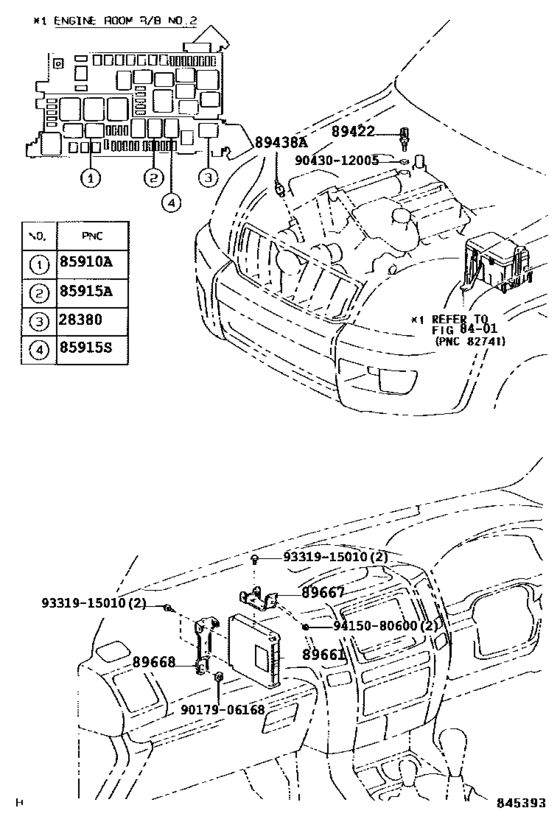

Electronic Fuel Injection System ([01.2003 - ] (0301- )GRJ120..ARL) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- General
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
90987-04004 Relay, Starter Cut[01.2003 -] 1GRFE..GRJ12#..ARL,GCC,GEN |
90987-04004 |
from US $47.21 |
||
|
85910A
|
85910A
90987-02022 Relay, Starter Cut[09.2002 - 08.2004] GRJ12#,RZJ12#..ARL,GCC,GEN |
90987-02022 |
from US $51.50 |
||
|
85915A
|
85915A
90987-02022 Relay, Starter Cut[09.2002 - 08.2004] GRJ12#,RZJ12#..ARL,GCC,GEN |
90987-02022 |
from US $51.50 |
||
|
85915S
|
85915S
90987-02022 Relay, Starter Cut[01.2003 - 08.2004] GRJ12#..ARL,GCC,GEN |
90987-02022 |
from US $51.50 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[01.2003 - 08.2009] GRJ12#,TRJ12#..ARL,GCC,GEN |
89422-33030 |
from US $40.49 |
||
|
89438A
|
89438A
89438-33010 Switch, Power Steering Oil Pressure[09.2002 - 08.2009] GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
89438-33010 |
from US $29.78 |
||
|
89661
|
89661
89661-6A320
Computer, Engine Control
[01.2003 - 08.2004] GRJ12#..4FC..(ARL,GCC,GEN) |
89661-6A320 |
— | ||
|
89667
|
89667
89667-60240 Bracket, Engine Control Computer[09.2002 - 08.2009] GRJ12#,RZJ12#,TRJ12#..ARL,GCC,GEN |
89667-60240 |
US $9.61 |
||
|
89668
|
89668
89668-60240 Bracket, Engine Control Computer, No.2[09.2002 - 08.2009] GRJ12#,RZJ12#..ARL,GCC,GEN |
89668-60240 |
US $15.72 |
||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
from US $0.99 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
