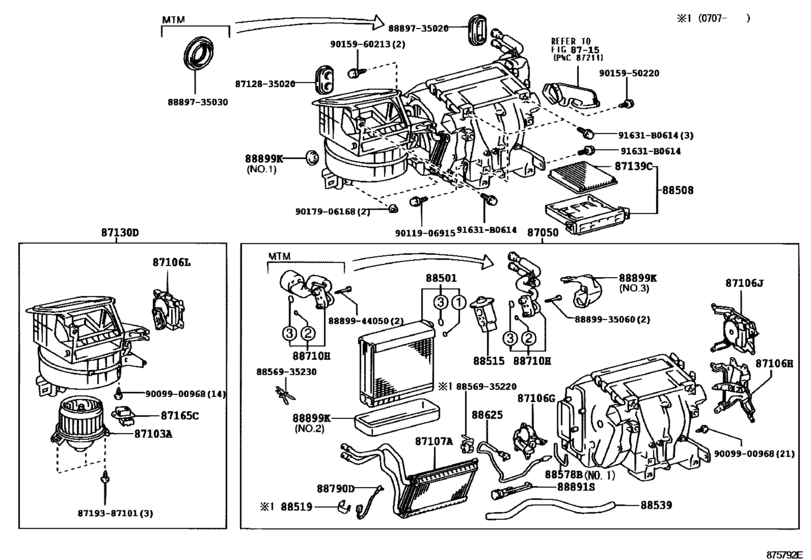

Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W(AUTO AIR CONDITIONER) (0209- )RHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-60070 Radiator Assy, Air Conditioner[09.2002 - 02.2004] GRJ120,KDJ120..RHD..4FC AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD..4FC AIR CONDITIONER-SINGLE AUTO |
87050-60070 |
US $2,082.08 |
||
| replacement | |||||
|
87050
|
87050
87050-60071 Radiator Assy, Air Conditioner[09.2002 - 02.2004] GRJ120,KDJ120..RHD..4FC AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD..4FC AIR CONDITIONER-SINGLE AUTO |
87050-60071 |
US $2,082.08 |
||
|
87050
|
87050
87050-60071 Radiator Assy, Air Conditioner[02.2004 - 08.2005] GRJ120,KDJ120..RHD..ATM AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD..ATM AIR CONDITIONER-SINGLE AUTO |
87050-60071 |
US $2,082.08 |
||
|
87050
|
87050
87050-60110 Radiator Assy, Air ConditionerAIR CONDITIONER [09.2002 - 02.2004] GRJ120,KDJ12#..RHD..4FC AIR CONDITIONER-SINGLE MANUAL |
87050-60110 |
US $1,834.56 |
||
| replacement | |||||
|
87050
|
87050
87050-60111 Radiator Assy, Air ConditionerAIR CONDITIONER [09.2002 - 02.2004] GRJ120,KDJ12#..RHD..4FC AIR CONDITIONER-SINGLE MANUAL |
87050-60111 |
US $1,834.56 |
||
|
87050
|
87050
87050-60111 Radiator Assy, Air ConditionerAIR CONDITIONER [02.2004 - 08.2005] GRJ120,KDJ12#..RHD..ATM AIR CONDITIONER-SINGLE MANUAL |
87050-60111 |
US $1,834.56 |
||
|
87050
|
87050
87050-60140 Radiator Assy, Air ConditionerAIR CONDITIONER [09.2002 - 08.2005] GRJ120,KDJ12#..RHD |
87050-60140 |
US $1,035.22 |
||
|
87103A
|
87103A
87103-35050
Motor Sub-Assy, Cooling Unit, W/fan
[09.2002 - 08.2003] GRJ120,KDJ12#..RHD |
87103-35050 |
— | ||
| replacement | |||||
|
87103A
|
87103A
87103-35080 Motor Sub-Assy, Cooling Unit, W/fan[09.2002 - 08.2003] GRJ120,KDJ12#..RHD |
87103-35080 |
US $326.73 |
||
|
87103A
|
87103A
87103-35080 Motor Sub-Assy, Cooling Unit, W/fan[08.2003 - 07.2007] GRJ120,KDJ12#..RHD |
87103-35080 |
US $326.73 |
||
|
87106G
|
87106G
87106-35130
Servo Sub-Assy, Damper(For Blower)
[09.2002 - 02.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; KDJ12#..5F COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..5F COLD SPEC&AIR CONDITIONER-DUAL AUTO |
87106-35130 |
— | ||
| replacement | |||||
|
87106G
|
87106G
87106-35170 Servo Sub-Assy, Damper(For Blower)[09.2002 - 02.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; KDJ12#..5F COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..5F COLD SPEC&AIR CONDITIONER-DUAL AUTO |
87106-35170 |
from US $130.61 |
||
|
87106G
|
87106G
87106-35170 Servo Sub-Assy, Damper(For Blower)[02.2004 - 08.2009] GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE AUTO; KDJ12#..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..MTM COLD SPEC&AIR CONDITIONER-DUAL AUTO |
87106-35170 |
from US $130.61 |
||
|
87106H
|
87106H
87106-35140
Servo Sub-Assy, Damper(For Airmix)
[09.2002 - 02.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; KDJ12#..5F COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..5F COLD SPEC&AIR CONDITIONER-DUAL AUTO |
87106-35140 |
— | ||
| replacement | |||||
|
87106H
|
87106H
87106-35180 Servo Sub-Assy, Damper(For Airmix)[09.2002 - 02.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; KDJ12#..5F COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..5F COLD SPEC&AIR CONDITIONER-DUAL AUTO |
87106-35180 |
from US $144.36 |
||
|
87106H
|
87106H
87106-35180 Servo Sub-Assy, Damper(For Airmix)[02.2004 - 08.2009] GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE AUTO; KDJ12#..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..MTM COLD SPEC&AIR CONDITIONER-DUAL AUTO |
87106-35180 |
from US $144.36 |
||
|
87106J
|
87106J
87106-35120 Servo Sub-Assy, Damper(For Mode)[09.2002 - 08.2009] GRJ120,KDJ120..RHD;GRJ120,KDJ120..LHD..(5FC,6F) AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(5FC,6F) AIR CONDITIONER-SINGLE AUTO; KDJ12#..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..MTM COLD SPEC&AIR CONDIT |
87106-35120 |
from US $119.65 |
||
|
87106L
|
87106L
87106-35150 Servo Sub-Assy, Damper(For Blower)[09.2002 - 08.2009] GRJ120,KDJ120..RHD;GRJ120,KDJ120..LHD..(5FC,6F) AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(5FC,6F) AIR CONDITIONER-SINGLE AUTO; KDJ12#..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..MTM COLD SPEC&AIR CONDIT |
87106-35150 |
from US $130.44 |
||
|
87106L
|
87106L
87106-60170 Servo Sub-Assy, DamperDAMPER [09.2002 - 08.2009] GRJ12#,KDJ12# |
87106-60170 |
US $110.86 |
||
|
87107A
|
87107A
87107-35110
Unit Sub-Assy, Heater Radiator
[09.2002 - 08.2009] GRJ120,KDJ12#..RHD |
87107-35110 |
— | ||
|
87130D
|
87130D
87130-35160
Blower Assy
[09.2002 - 04.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO |
87130-35160 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-35161 Blower Assy[09.2002 - 04.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO |
87130-35161 |
US $513.68 |
||
|
87130D
|
87130D
87130-60500
Blower Assy
[09.2002 - 07.2007] GRJ120,KDJ12#..RHD |
87130-60500 |
— | ||
|
87139C
|
87139C
87139-47010 Filter, Clean Air[09.2002 - 12.2007] GRJ12#,KDJ12# |
87139-47010 |
from US $22.71 |
||
| replacement | |||||
|
87139C
|
87139C
87139-28010 Filter, Clean Air[09.2002 - 12.2007] GRJ12#,KDJ12# |
87139-28010 |
from US $26.79 |
||
|
87165C
|
87165C
87165-13010 Control, Blower Motor[09.2002 - 08.2009] GRJ120,KDJ120..RHD;GRJ120,KDJ120..LHD..(5FC,6F) AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(5FC,6F) AIR CONDITIONER-SINGLE AUTO; KDJ12#..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..MTM COLD SPEC&AIR CONDIT |
87165-13010 |
from US $130.24 |
||
|
88501
|
88501
88501-35100
Evaporator Sub-Assy, Cooler, No.1
[09.2002 - 02.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL; KDJ12#..5F COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..5F COLD SPEC&AIR CONDITIONER-DUAL AUTO |
88501-35100 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-35160 Evaporator Sub-Assy, Cooler, No.1[09.2002 - 02.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL; KDJ12#..5F COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..5F COLD SPEC&AIR CONDITIONER-DUAL AUTO |
88501-35160 |
from US $365.46 |
||
|
88501
|
88501
88501-35130
Evaporator Sub-Assy, Cooler, No.1
[02.2004 - 08.2005] GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE AUTO; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL; KDJ12#..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..MTM COLD SPEC&AIR CONDITIONER-DUAL AUTO; KDJ12# |
88501-35130 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-35160 Evaporator Sub-Assy, Cooler, No.1[02.2004 - 08.2005] GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE AUTO; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL; KDJ12#..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..MTM COLD SPEC&AIR CONDITIONER-DUAL AUTO; KDJ12# |
88501-35160 |
from US $365.46 |
||
|
88508
|
88508
88508-20120 Filter Sub-Assy, Clean Air[09.2002 - 12.2007] GRJ12#,KDJ12# |
88508-20120 |
from US $26.21 |
||
|
88515
|
88515
88515-60150 Valve, Cooler Expansion[09.2002 - 08.2009] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; GRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(4FC,5F) AIR CONDITIONER-SINGLE MANUAL; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET; KDJ12#. |
88515-60150 |
from US $99.24 |
||
|
88539
|
88539
88539-35040
Hose, Cooler Unit Drain, No.1
[09.2002 - 08.2005] GRJ120,KDJ12#..RHD FRONT |
88539-35040 |
— | ||
|
88539
|
88539
88539-60220
Hose, Cooler Unit Drain, No.1
[09.2002 - 08.2009] GRJ120,KDJ120 AIR CONDITIONER-DUAL AUTO,REAR |
88539-60220 |
— | ||
|
88578B
|
88578B
88578-35170
Packing, Cooling Unit, No.1
[09.2002 - 08.2009] GRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(5FC,6F) AIR CONDITIONER-SINGLE AUTO; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL AFTER SET; KDJ12#..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120. |
88578-35170 |
— | ||
|
88625
|
88625
88625-35060
Thermistor, Cooler, No.1
[09.2002 - 02.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE MANUAL; KDJ12#..RHD..5F COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..RHD..5F COLD SPEC&AIR CONDIT |
88625-35060 |
— | ||
|
88625
|
88625
88625-35080
Thermistor, Cooler, No.1
[02.2004 - 08.2005] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE MANUAL; KDJ12#..RHD..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..RHD..MTM COLD SPEC&AIR COND |
88625-35080 |
— | ||
|
88710H
|
88710H
88710-6A620
Tube & Accessory Assy, Air Conditioner
[09.2002 - 10.2004] GRJ120,KDJ120..RHD..ATM AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD..ATM AIR CONDITIONER-SINGLE AUTO |
88710-6A620 |
— | ||
| replacement | |||||
|
88710H
|
88710H
88710-6B390 Tube Assy, Air Conditioner[09.2002 - 10.2004] GRJ120,KDJ120..RHD..ATM AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD..ATM AIR CONDITIONER-SINGLE AUTO |
88710-6B390 |
US $127.55 |
||
|
88710H
|
88710H
88710-6B140 Tube Assy, Air ConditionerAIRCONDITIONER [09.2002 - 11.2004] GRJ120,KDJ12#..RHD..ATM AIR CONDITIONER-SINGLE MANUAL |
88710-6B140 |
US $160.16 |
||
| replacement | |||||
|
88710H
|
88710H
88710-6B390 Tube Assy, Air Conditioner[09.2002 - 11.2004] GRJ120,KDJ12#..RHD..ATM AIR CONDITIONER-SINGLE MANUAL |
88710-6B390 |
US $127.55 |
||
|
88891S
|
88891S
88891-35030
Cover, Cooler, No.1
[09.2002 - 02.2004] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE MANUAL; KDJ12#..RHD..5F COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..RHD..5F COLD SPEC&AIR CONDIT |
88891-35030 |
— | ||
|
88891S
|
88891S
88891-35040
Cover, Cooler, No.1
[02.2004 - 08.2005] GRJ120,KDJ120..RHD AIR CONDITIONER-DUAL AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE AUTO; GRJ120,KDJ12#..RHD AIR CONDITIONER-SINGLE MANUAL; KDJ12#..RHD..MTM COLD SPEC&AIR CONDITIONER-SINGLE AUTO; KDJ120..RHD..MTM COLD SPEC&AIR COND |
88891-35040 |
— | ||
|
88899K
|
88899K
88899-3A010
Grommet (For Drain Hose)
[09.2002 - 08.2009] GRJ12#,KDJ12# NO.1 |
88899-3A010 |
— | ||
|
88899K
|
88899K
88899-60250
Plate, Cover
[09.2002 - 08.2005] GRJ120,KDJ120..RHD;GRJ120,KDJ120..LHD..(5FC,6F) AIR CONDITIONER-DUAL AUTO,NO.2; GRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(5FC,6F) AIR CONDITIONER-SINGLE AUTO,NO.2; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL,NO.2; KDJ12#..MTM COLD SPEC&A |
88899-60250 |
— | ||
|
88899K
|
88899K
88899-60260
Plate, Cover
[09.2002 - 08.2005] GRJ120,KDJ120..RHD;GRJ120,KDJ120..LHD..(5FC,6F) AIR CONDITIONER-DUAL AUTO,NO.3; GRJ120,KDJ12#..RHD;GRJ12#,KDJ12#..LHD..(5FC,6F) AIR CONDITIONER-SINGLE AUTO,NO.3; GRJ12#,KDJ12# AIR CONDITIONER-SINGLE MANUAL,NO.3; KDJ12#..MTM COLD SPEC&A |
88899-60260 |
— | ||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.86 |
||
|
8712835020
|
8712835020
87128-35020
Grommet, Heater
|
87128-35020 |
— | ||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
8856935220
|
8856935220
88569-35220
Clamp (for Cooler Relay)
|
88569-35220 |
— | ||
|
8856935230
|
8856935230
88569-35230
Clamp (for Cooler Relay)
|
88569-35230 |
— | ||
|
8889735020
|
8889735020
88897-35020
Grommet, (For Cooler Pipe)
|
88897-35020 |
— | ||
|
8889735030
|
8889735030
88897-35030
Grommet, (For Cooler Pipe)
|
88897-35030 |
— | ||
|
8889935060
|
8889935060
88899-35060
Cover, Evaporator
|
88899-35060 |
— | ||
|
8889944050
|
8889944050
88899-44050 Bolt, W/Washer |
88899-44050 |
from US $0.84 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9015950220
|
9015950220
90159-50220 New Genuine Part |
90159-50220 |
US $1.51 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
from US $0.99 |
||
