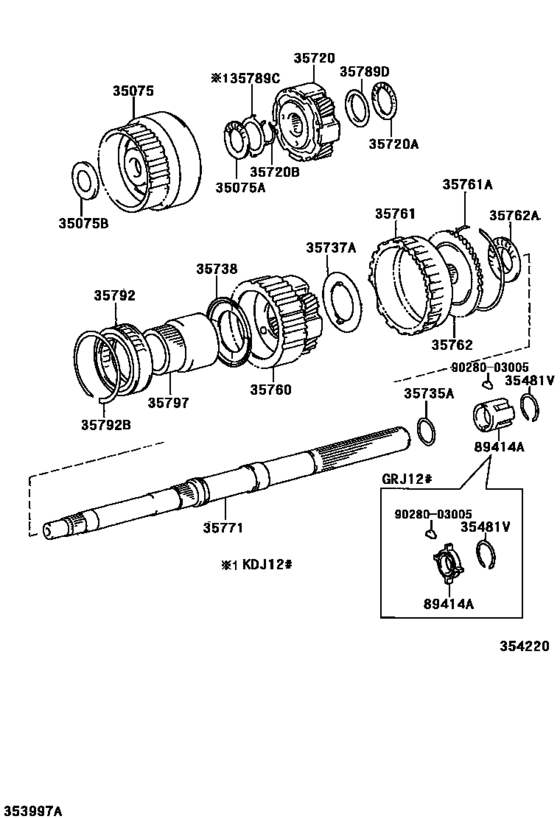

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([09.2002 - ] A340F,A343F (0209- )4FC) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35075
|
35075
35075-60010 Gear Sub-Assy, Front Planetary RingFRONT PLANETARY RING [01.2003 - 08.2004] GRJ12# |
35075-60010 |
from US $370.75 |
||
|
35075A
|
35075A
90374-49004 Bearing, Thrust Needle Roller (For Front Planetary Ring)[01.2003 - 08.2004] GRJ12# |
90374-49004 |
US $16.89 |
||
|
35075B
|
35075B
35789-30210 Race, Thrust Bearing (For Front Planetary Ring Gear Front)[01.2003 - 08.2004] GRJ12# |
35789-30210 |
US $8.44 |
||
|
35481V
|
35481V
90520-29004 Ring, Shaft Snap (For Atm Speedmeter Drive Gear)[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC T=1.50,OD=34.8 |
90520-29004 |
US $0.70 |
||
|
35720
|
35720
35720-30100 Gear Assy, Front Planetary[01.2003 - 08.2004] GRJ12# |
35720-30100 |
from US $372.74 |
||
|
35720A
|
35720A
90374-35005 Bearing, Thrust Needle Roller (For Front Planetary Gear)[01.2003 - 08.2004] GRJ12# |
90374-35005 |
US $10.63 |
||
|
35720B
|
35720B
90520-24026 Ring, Shaft Snap (For Front Planetary Gear)[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
90520-24026 |
US $1.05 |
||
|
35735A
|
35735A
35735-30020 Ring, Planetary Output Shaft Oil Seal[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
35735-30020 |
US $10.83 |
||
|
35737A
|
35737A
35737-30030 Washer, Planetary Carrier Thrust, No.1[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
35737-30030 |
US $3.06 |
||
|
35738
|
35738
35739-30030 Washer, Planetary Carrier Thrust, No.2[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
35739-30030 |
US $4.37 |
||
|
35760
|
35760
35705-14010 Gear Assy, Rear Planetary[01.2003 - 08.2004] GRJ12# |
35705-14010 |
US $364 |
||
|
35761
|
35761
35761-30020 Gear, Rear Planetary Ring[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
35761-30020 |
US $101.92 |
||
|
35761A
|
35761A
90521-99024 Ring, Hole Snap (For Overdrive Planetary Ring Gear)[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
90521-99024 |
US $2.62 |
||
|
35762
|
35762
35762-30040 Flange, Rear Planetary Ring Gear[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
35762-30040 |
US $71.20 |
||
|
35762A
|
35762A
90374-38003 Bearing, Thrust Needle Roller (For Rear Planetary Flange)[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
90374-38003 |
US $9.32 |
||
|
35771
|
35771
35073-34010
Shaft, Output
[01.2003 - 08.2004] GRJ12# |
35073-34010 |
— | ||
|
35789D
|
35789D
35789-30200 Race, Thrust Bearing (For Front Planetary Gear Rear)[01.2003 - 08.2004] GRJ12# |
35789-30200 |
US $8.44 |
||
|
35792
|
35792
35792-14020 Clutch, 1 Way, No.2[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
35792-14020 |
US $122.30 |
||
|
35792B
|
35792B
90521-87001 Ring, Hole Snap (For Rear Planetary Ring Gear)[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
90521-87001 |
US $2.62 |
||
|
35797
|
35797
35797-50010 Race, 1 Way Clutch Inner[09.2002 - 08.2004] GRJ12#,KDJ12#..4FC |
35797-50010 |
US $91.73 |
||
|
89414A
|
89414A
35736-34010
Rotor, Sensor
[01.2003 - 08.2004] GRJ12# |
35736-34010 |
— | ||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
