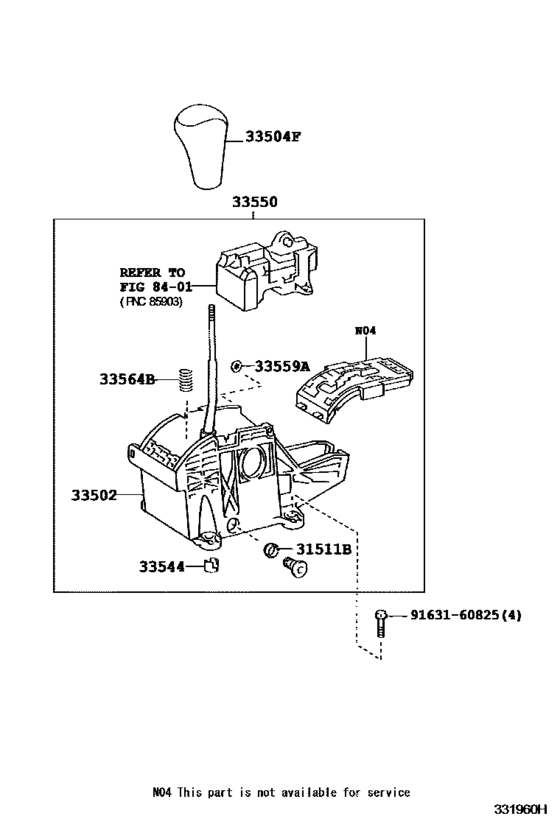

Shift Lever & Retainer ([09.2002 - ] (0209- )RHD..ATM) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31511B
|
31511B
90385-13010 Bush(For Control Shaft)[09.2002 -] GRJ12#,KDJ12#..ATM |
90385-13010 |
US $2.34 |
||
|
33502
|
33502
33502-60350 Plate Sub-Assy, Shift Lever[09.2002 -] GRJ120,KDJ12#..RHD..ATM |
33502-60350 |
US $152.01 |
||
|
33504F
|
33504F
33504-60140-C0 Knob Sub-Assy, Shift Lever[09.2002 - 08.2009] GRJ12#,KDJ12#..ATM BLACK,TRIM0#,1# |
33504-60140-C0 |
from US $51.02 |
||
|
33504F
|
33504F
33504-60150-C0 Knob Sub-Assy, Shift Lever[09.2002 - 08.2009] GRJ12#,KDJ12#..ATM W(*LEP1) & LEATHER SEAT PACKAGE,BLACK,TRIM0#,1#; GRJ12#,KDJ12#..ATM W(*LEP1),BLACK,TRIM0#,1# |
33504-60150-C0 |
from US $109.71 |
||
|
33544
|
33544
33544-33010 Collar (For Floor Shift Setting)[09.2002 -] GRJ12#,KDJ12#..ATM |
33544-33010 |
US $1.60 |
||
|
33550
|
33550
33550-60640 Floor Shift Assy, Transmission[09.2002 - 08.2004] GRJ120,KDJ12#..RHD..4FC |
33550-60640 |
from US $454.97 |
||
|
33559A
|
33559A
33559-50010 Nut, Shift Lever, No.1[09.2002 -] GRJ12#,KDJ12#..ATM |
33559-50010 |
US $1.28 |
||
|
33564B
|
33564B
90501-06080 Spring, Compression (For Shift Lock Release Link)[09.2002 -] GRJ120,KDJ12#..RHD..ATM; GRJ12#,KDJ12#..LHD..ATM |
90501-06080 |
US $1.05 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.80 |
