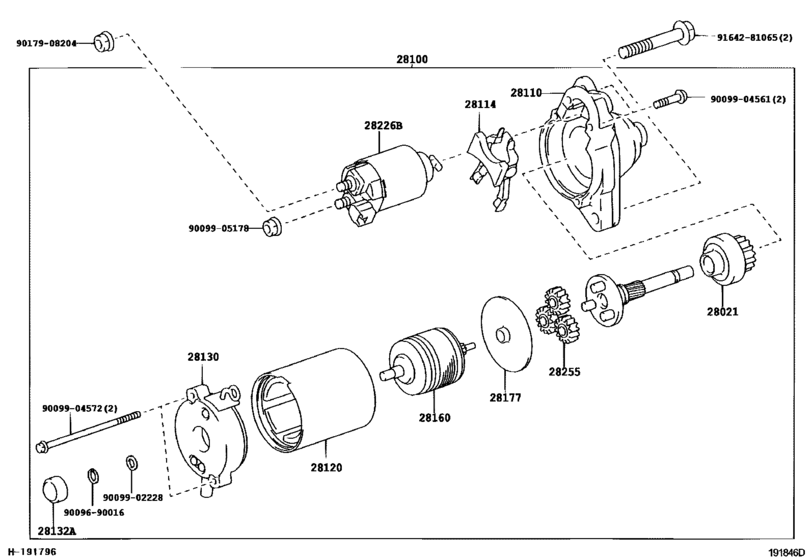

Starter ([01.2003 - ] 12V 1.6KW (0301- )1GRFE) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-21060 Clutch Sub-Assy, Starter Center Bearing[01.2003 -] 1GRFE..GRJ12# |
28021-21060 |
from US $61.87 |
||
|
28100
|
28100
28100-31040 Starter Assy[01.2003 - 09.2009] 1GRFE..GRJ12# 12V 1.6KW |
28100-31040 |
US $1,170.62 |
||
|
28100
|
28100
28100-31050 Starter Assy[01.2003 -] 1GRFE..GRJ12# 12V 2.0KW,COLD SPEC |
28100-31050 |
from US $766.90 |
||
|
28110
|
28110
28110-31040 Housing Assy, Starter Drive[01.2003 -] 1GRFE..GRJ12# |
28110-31040 |
US $36.25 |
||
|
28114
|
28114
28114-21060 Pin, Starter Drive Lever Set[01.2003 -] 1GRFE..GRJ12# |
28114-21060 |
from US $0.92 |
||
|
28120
|
28120
28120-28040
Yoke Assy, Starter
[01.2003 - 08.2008] 1GRFE..GRJ12# |
28120-28040 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[01.2003 - 08.2008] 1GRFE..GRJ12# |
28120-28060 |
— | ||
|
28120
|
28120
28120-54380 Yoke Assy, Starter[01.2003 -] 1GRFE..GRJ12# COLD SPEC |
28120-54380 |
US $182.40 |
||
|
28130
|
28130
28130-31040 Frame Assy, Starter Commutator End[01.2003 -] 1GRFE..GRJ12# |
28130-31040 |
from US $13.38 |
||
|
28132A
|
28132A
28132-28040 Cover, Starter Bearing(For Drive Housing)[01.2003 -] 1GRFE..GRJ12# |
28132-28040 |
from US $1.75 |
||
|
28160
|
28160
28160-21060 Armature Assy, Starter[01.2003 -] 1GRFE..GRJ12# |
28160-21060 |
from US $97.60 |
||
|
28160
|
28160
28160-75120 Armature Assy, Starter[01.2003 -] 1GRFE..GRJ12# COLD SPEC |
28160-75120 |
US $248.98 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[01.2003 -] 1GRFE..GRJ12# |
28177-28040 |
US $4.19 |
||
|
28226B
|
28226B
28226-22061 Starter Kit, Battery Terminal[01.2003 - 08.2009] 1GRFE..GRJ12# |
28226-22061 |
from US $67.90 |
||
|
28255
|
28255
28255-28040 Gear, Planet[01.2003 -] 1GRFE..GRJ12# |
28255-28040 |
from US $3.32 |
||
|
9009690016
|
9009690016
90096-90016
Ring, Snap(For Venturi Throttle Valve Shaft)
|
90096-90016 |
— | ||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904561
|
9009904561
90099-04561
BOLT
|
90099-04561 |
— | ||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9164281065
|
9164281065
91642-81065 Bolt(For Alternator) |
91642-81065 |
from US $1.29 |
||
