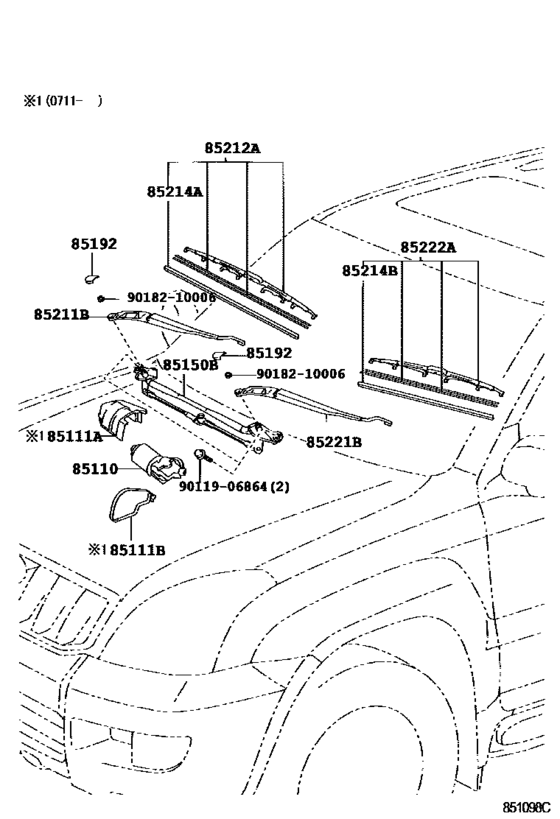

Windshield Wiper ([09.2002 - ] (0209- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- GRJ120
- grade
- GX
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER PRADO 120
- From
- 01.2003
- To
- 08.2004
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-60330 Motor Assy, Windshield Wiper[09.2002 -] GRJ120,KDJ12#..RHD |
85110-60330 |
US $386.13 |
||
|
85150B
|
85150B
85150-60250 Link Assy, Wiper[09.2002 - 07.2007] GRJ120,KDJ12#..RHD |
85150-60250 |
from US $137.36 |
||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[09.2002 -] GRJ12#,KDJ12# |
85292-13010 |
US $4.48 |
||
|
85211B
|
85211B
85211-60220 Arm, Front Wiper, RhFR WIPER, RH [09.2002 -] GRJ120,KDJ12#..RHD |
85211-60220 |
US $52.75 |
||
|
85212A
|
85212A
85212-60180
Blade, Fr Wiper, Rh
[09.2002 -] GRJ120,KDJ12#..RHD |
85212-60180 |
— | ||
|
85214A
|
85214A
85214-48010 Rubber, Wiper, Rh[09.2002 -] GRJ120,KDJ12#..RHD |
85214-48010 |
from US $11.80 |
||
|
85214B
|
85214B
85214-48030
Rubber, Wiper, Rh
[09.2002 - 10.2006] GRJ120,KDJ12#..RHD |
85214-48030 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-48031 Rubber, Wiper, Rh[09.2002 - 10.2006] GRJ120,KDJ12#..RHD |
85214-48031 |
from US $11.23 |
||
|
85221B
|
85221B
85221-60230 Arm, Front Wiper, Lh[09.2002 -] GRJ120,KDJ12#..RHD |
85221-60230 |
US $70.73 |
||
|
85222A
|
85222A
85222-60240
Blade, Fr Wiper, Lh
[09.2002 - 11.2006] GRJ120,KDJ12#..RHD |
85222-60240 |
— | ||
| replacement | |||||
|
85222A
|
85222A
85222-60241 Blade, Fr Wiper, Lh[09.2002 - 11.2006] GRJ120,KDJ12#..RHD |
85222-60241 |
from US $29 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.43 |
||
|
9018210006
|
9018210006
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
US $1.43 |
||
