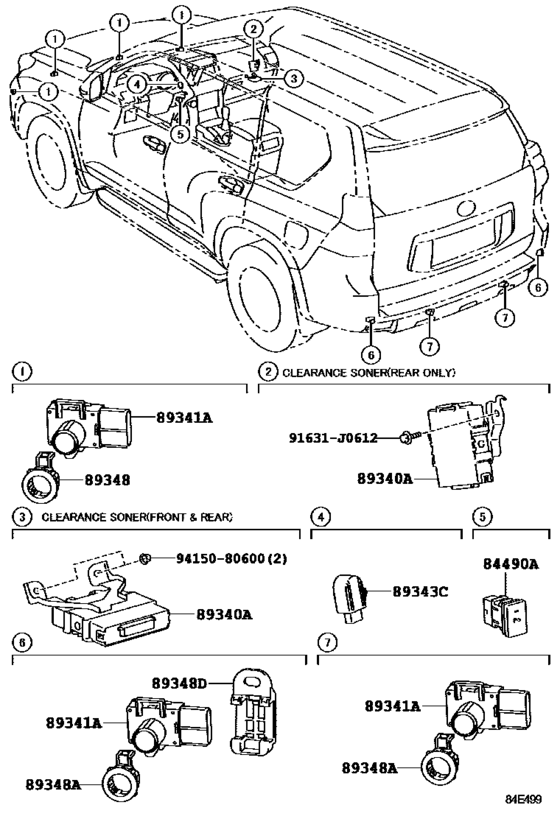

Clearance & Back Sonar ([08.2013 - ] (1308- )LHD) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 06.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84490A
|
84490A
84490-33021 Switch Assy, Back Sonar Or Clearance Sonar[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
84490-33021 |
US $35.96 |
||
|
89340A
|
89340A
89340-60100 Computer Assy, Clearance Warning[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ); GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ); GRJ150,KDJ150..R |
89340-60100 |
US $421.08 |
||
|
89340A
|
89340A
89340-60110
Computer Assy, Clearance Warning
[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY); TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY); GDJ150,GRJ150..ARL AU |
89340-60110 |
— | ||
|
89340A
|
89340A
89340-60120
Computer Assy, Clearance Warning
[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
89340-60120 |
— | ||
|
89341A
|
89341A
89341-33210-A0 Sensor, Ultrasonic, No.1[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),S UPER WHITE 2,040; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),S U |
89341-33210-A0 |
from US $122.30 |
||
|
89341A
|
89341A
89341-33210-A1 Sensor, Ultrasonic, No.1[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),W HITE PEARL CS.,070; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),W |
89341-33210-A1 |
from US $122.52 |
||
|
89341A
|
89341A
89341-33210-B0 Sensor, Ultrasonic, No.1[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),S ILVER ME.,1F7; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),S ILVE |
89341-33210-B0 |
from US $123.42 |
||
|
89341A
|
89341A
89341-33210-B1 Sensor, Ultrasonic, No.1[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),G RAY ME.,1G3; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),G RAY ME |
89341-33210-B1 |
from US $123.18 |
||
|
89341A
|
89341A
89341-33210-B2 Sensor, Ultrasonic, No.1[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),D K. STEEL MC.,1H2; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),D K |
89341-33210-B2 |
US $122.30 |
||
|
89341A
|
89341A
89341-33210-C0 Sensor, Ultrasonic, No.1[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),A TTITUDE BLACK MC.,218; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY |
89341-33210-C0 |
from US $118.97 |
||
|
89341A
|
89341A
89341-33210-C1 Sensor, Ultrasonic, No.1[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),B LACK,202; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),B LACK,202; |
89341-33210-C1 |
from US $129.93 |
||
|
89341A
|
89341A
89341-33210-D0 Sensor, Ultrasonic, No.1[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),R ED M.M.,3R3; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),R ED M.M |
89341-33210-D0 |
US $148.51 |
||
|
89341A
|
89341A
89341-33210-E3 Sensor, Ultrasonic, No.1[06.2015 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),B RONZE M.M.,4T3; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),B RON |
89341-33210-E3 |
US $148.51 |
||
|
89341A
|
89341A
89341-33210-E8 Sensor, Ultrasonic, No.1[08.2016 -] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),V INTAGE BROWN PEARL CS.,4X4; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR |
89341-33210-E8 |
US $148.51 |
||
|
89341A
|
89341A
89341-33210-G1 Sensor, Ultrasonic, No.1[06.2015 - 08.2016] GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),D K.GREEN MC.,6V4; TRJ15#;GRJ150,KDJ150..ARL,GEN AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ON |
89341-33210-G1 |
US $148.51 |
||
|
89343C
|
89343C
89343-72010 Buzzer, Clearance Warning, No.1[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ); GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY); GDJ150,GRJ150,KDJ150..R |
89343-72010 |
US $23.28 |
||
|
89348
|
89348
89348-33100-A0 Retainer, Ultrasonic Sensor, No.1[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),SUPER WHITE 2,040; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ) |
89348-33100-A0 |
from US $5.95 |
||
|
89348
|
89348
89348-33100-A1 Retainer, Ultrasonic Sensor, Front Corner[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),WHITE PEARL CS.,070; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR |
89348-33100-A1 |
US $6.22 |
||
|
89348
|
89348
89348-33100-B0 Retainer, Ultrasonic Sensor, Front Corner[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),SILVER ME.,1F7; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),SI |
89348-33100-B0 |
from US $6.57 |
||
|
89348
|
89348
89348-33100-B1 Retainer, Ultrasonic Sensor, No.1[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),GRAY ME.,1G3; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),GRAY |
89348-33100-B1 |
US $6.88 |
||
|
89348
|
89348
89348-33100-B2 Retainer, Ultrasonic Sensor, No.1[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),DK. STEEL MC.,1H2; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ) |
89348-33100-B2 |
from US $6.86 |
||
|
89348
|
89348
89348-33100-C0 Retainer, Ultrasonic Sensor, No.1[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),ATTITUDE BLACK MC.,218; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & R |
89348-33100-C0 |
from US $5.83 |
||
|
89348
|
89348
89348-33100-C4
Retainer, Ultrasonic Sensor, Front Corner
[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),BLACK,202; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),BLACK,2 |
89348-33100-C4 |
— | ||
|
89348
|
89348
89348-33100-D0
Retainer, Ultrasonic Sensor, No.1
[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),RED M.M.,3R3; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),RED |
89348-33100-D0 |
— | ||
|
89348
|
89348
89348-33100-E8
Retainer, Ultrasonic Sensor, No.1
[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),BRONZE M.M.,4T3; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),B |
89348-33100-E8 |
— | ||
|
89348
|
89348
89348-33100-G1
Retainer, Ultrasonic Sensor, No.1
[06.2015 - 08.2016] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),DK.GREEN MC.,6V4; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & |
89348-33100-G1 |
— | ||
|
89348
|
89348
89348-33100-L0
Retainer, Ultrasonic Sensor, No.1
[08.2016 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),VINTAGE BROWN PEARL CS.,4X4; GDJ150,GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER&CLEARANCE & BACK SONAR-WITH(FRON |
89348-33100-L0 |
— | ||
|
89348A
|
89348A
89348-33100-A0 Retainer, Ultrasonic Sensor, No.1[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),SUPER WHITE 2,040; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),S UPER |
89348-33100-A0 |
from US $5.95 |
||
|
89348A
|
89348A
89348-33100-A1 Retainer, Ultrasonic Sensor, Front Corner[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),WHITE PEARL CS.,070; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),W HI |
89348-33100-A1 |
US $6.22 |
||
|
89348A
|
89348A
89348-33100-B0 Retainer, Ultrasonic Sensor, Front Corner[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),SILVER ME.,1F7; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),S ILVER M |
89348-33100-B0 |
from US $6.57 |
||
|
89348A
|
89348A
89348-33100-B1 Retainer, Ultrasonic Sensor, No.1[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),GRAY ME.,1G3; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),G RAY ME.,1 |
89348-33100-B1 |
US $6.88 |
||
|
89348A
|
89348A
89348-33100-B2 Retainer, Ultrasonic Sensor, No.1[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),DK. STEEL MC.,1H2; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),D K. S |
89348-33100-B2 |
from US $6.86 |
||
|
89348A
|
89348A
89348-33100-C0 Retainer, Ultrasonic Sensor, No.1[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),ATTITUDE BLACK MC.,218; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),A |
89348-33100-C0 |
from US $5.83 |
||
|
89348A
|
89348A
89348-33100-C4
Retainer, Ultrasonic Sensor, Front Corner
[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),BLACK,202; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),B LACK,202; GD |
89348-33100-C4 |
— | ||
|
89348A
|
89348A
89348-33100-D0
Retainer, Ultrasonic Sensor, No.1
[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),RED M.M.,3R3; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),R ED M.M.,3 |
89348-33100-D0 |
— | ||
|
89348A
|
89348A
89348-33100-E8
Retainer, Ultrasonic Sensor, No.1
[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),BRONZE M.M.,4T3; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY),B RONZE |
89348-33100-E8 |
— | ||
|
89348A
|
89348A
89348-33100-G1
Retainer, Ultrasonic Sensor, No.1
[06.2015 - 08.2016] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),DK.GREEN MC.,6V4; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
89348-33100-G1 |
— | ||
|
89348A
|
89348A
89348-33100-L0
Retainer, Ultrasonic Sensor, No.1
[08.2016 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ),VINTAGE BROWN PEARL CS.,4X4; GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ON |
89348-33100-L0 |
— | ||
|
89348D
|
89348D
89348-33090 Clip, Ultrasonic Sensor[06.2015 -] GRJ150,KDJ150..RHD..ATM AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR ); GDJ150,GRJ150,KDJ150,TRJ150 AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER&CLEARANCE & BACK SONAR-WITH(REAR ONLY); GDJ150,GRJ150,KDJ150..R |
89348-33090 |
from US $4.54 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
