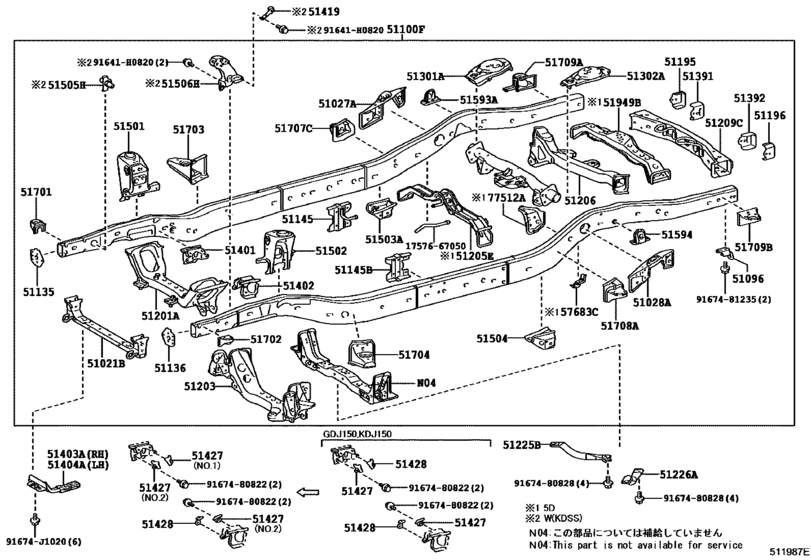

Frame ([08.2009 - ] (0908- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 06.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51021B
|
51021B
51021-60041 Crossmember Sub-Assy, Frame AuxiliaryFRAME AUXILIARY [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51021-60041 |
from US $202.68 |
||
|
51027A
|
51027A
51027-60010 Bracket Sub-Assy, Frame No.4 Crossmember, RhFRAME NO.4 CROSSMEMBER, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51027-60010 |
US $47.90 |
||
|
51027A
|
51027A
51027-60030 Bracket Sub-Assy, Frame No.4 Crossmember, RhFRAME NO.4 CROSSMEMBER, RH [06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GDJ150..6FC VX-L PACKAGE; GDJ150..6FC VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS); GRJ150,KDJ150..ARL,GEN STAB |
51027-60030 |
US $44.90 |
||
|
51028A
|
51028A
51028-60020 Bracket Sub-Assy, Frame No.4 Crossmember, LhFRAME NO.4 CROSSMEMBER, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51028-60020 |
US $47.90 |
||
|
51028A
|
51028A
51028-60040 Bracket Sub-Assy, Frame No.4 Crossmember, LhFRAME NO.4 CROSSMEMBER, LH [06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GDJ150..6FC VX-L PACKAGE; GDJ150..6FC VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS); GRJ150,KDJ150..ARL,GEN STAB |
51028-60040 |
US $46.16 |
||
|
51096
|
51096
51095-60030 Hook Sub-Assy, Transport, Rear LhTRANSPORT, REAR LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51095-60030 |
from US $68.54 |
||
|
51100F
|
51100F
51001-60L50 Frame Sub-Assy[06.2015 -] GRJ150..ARL,GEN; GRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
51001-60L50 |
US $4,853.71 |
||
|
51100F
|
51100F
51001-60L60 Frame Sub-Assy[06.2015 -] GRJ150..GCC; GRJ150..ARL,GEN SPARE TIRE-WITH(UNDER FRAME) |
51001-60L60 |
US $2,955.68 |
||
|
51100F
|
51100F
51001-60L71
Frame Sub-Assy
[06.2015 -] GRJ150..ARL,GEN STABILIZER-WITH(KDSS); GRJ150..6FC..GCC STABILIZER-WITH(KDSS)&SPARE TIRE-WITH(BACK DOOR) |
51001-60L71 |
— | ||
|
51100F
|
51100F
51001-60L81 Frame Sub-Assy[06.2015 -] GRJ150..6FC..GCC STABILIZER-WITH(KDSS); GRJ150..ARL,GEN STABILIZER-WITH(KDSS)&SPARE TIRE-WITH(UNDER FRAME) |
51001-60L81 |
US $2,955.68 |
||
|
51135
|
51135
51135-60040 Plate, Frame Side Rail, RhFRAME SIDE RAIL, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51135-60040 |
US $19.32 |
||
|
51136
|
51136
51136-60060 Plate, Frame Side Rail, LhFRAME SIDE RAIL, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51136-60060 |
US $13.98 |
||
|
51145
|
51145
510C1-60010 Stiffener, Frame Side RailFRAME SIDE RAIL [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
510C1-60010 |
US $43.83 |
||
|
51145B
|
51145B
51146-60140 Stiffener, Frame Side RailFRAME SIDE RAIL [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51146-60140 |
US $33.49 |
||
|
51195
|
51195
51191-60010 Patch, Rear Frame Rail, RhREAR FRAME RAIL, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51191-60010 |
US $16.07 |
||
|
51196
|
51196
51192-60010 Patch, Rear Frame Rail, LhREAR FRAME RAIL, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51192-60010 |
US $16.07 |
||
|
51201A
|
51201A
51201-60190 Crossmember Sub-Assy, Frame, FrontFRAME, FRONT [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51201-60190 |
US $370.41 |
||
|
51203
|
51203
51202-60300 Crossmember Sub-Assy, Frame, No.2FRAME, NO.2 [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51202-60300 |
US $403.60 |
||
|
51205E
|
51205E
51204-60210 Crossmember Sub-Assy, Frame, No.4FRAME, NO.4 [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
51204-60210 |
US $117.94 |
||
|
51206
|
51206
51206-60070 Crossmember Sub-Assy, Frame, No.5FRAME, NO.5 [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
51206-60070 |
US $297.02 |
||
|
51206
|
51206
51206-60081 Crossmember Sub-Assy, Frame, No.5[06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GDJ150..6FC VX-L PACKAGE; GDJ150..6FC VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS); GRJ150,KDJ150..ARL,GEN STAB |
51206-60081 |
US $343.62 |
||
|
51209C
|
51209C
51209-60220 Crossmember Sub-Assy, Frame, RearFRAME, REAR [06.2015 -] GRJ150,KDJ150,TRJ150..GCC; GDJ150..6FC VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GDJ150..6FC VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GDJ150..6FC TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GRJ150,KDJ150..ARL,GEN STABILIZER-WITH(KDSS)&SPARE TI |
51209-60220 |
US $371.37 |
||
|
51209C
|
51209C
51209-60230 Crossmember Sub-Assy, Frame, RearFRAME, REAR [06.2015 -] TRJ155;GDJ150,GRJ150,KDJ150,LJ150,TRJ150..ARL,GEN; GRJ150,KDJ150..ATM..GCC STABILIZER-WITH(KDSS)&SPARE TIRE-WITH(BACK DOOR); GRJ150,KDJ150,TRJ150..GCC SPARE TIRE-WITH(BACK DOOR) |
51209-60230 |
US $284.90 |
||
|
51225B
|
51225B
51225-35040 Bracket, Front Suspension Member, Rh[06.2015 -] TRJ150..5F;GRJ150,LJ150 |
51225-35040 |
US $77.95 |
||
|
51226A
|
51226A
51226-35060 Bracket, Front Suspension Member, Lh[06.2015 -] TRJ150..5F;GRJ150,LJ150 |
51226-35060 |
US $77.95 |
||
|
51301A
|
51301A
51301-60050 Bracket Sub-Assy, Rear Spring, Rear RhREAR SPRING, REAR RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51301-60050 |
US $80.08 |
||
|
51302A
|
51302A
51302-60060 Bracket Sub-Assy, Rear Spring, Rear LhREAR SPRING, REAR LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51302-60060 |
US $70.91 |
||
|
51391
|
51391
51391-60050 Gusset, Frame Rear Crossmember, RhFRAME REAR CROSSMEMBER, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51391-60050 |
US $16.59 |
||
|
51392
|
51392
51392-60030 Gusset, Frame Rear Crossmember, LhFRAME REAR CROSSMEMBER, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51392-60030 |
US $19.74 |
||
|
51401
|
51401
51401-60110 Bracket Sub-Assy, Engine Front Mounting, RhENGINE FRONT MOUNTING, RH [06.2015 -] GRJ150 |
51401-60110 |
US $38.15 |
||
|
51402
|
51402
51402-60110 Bracket Sub-Assy, Engine Front Mounting, LhENGINE FRONT MOUNTING, LH [06.2015 -] GRJ150 |
51402-60110 |
US $44.70 |
||
|
51403A
|
51403A
51403-60020 Brace Sub-Assy, Front Suspention Member, RhFRONT SUSPENTION MEMBER, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51403-60020 |
from US $67.12 |
||
|
51403A
|
51403A
51403-60030 Brace Sub-Assy, Front Suspention Member, RhFRONT SUSPENTION MEMBER, RH [06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX-L PACKAGE; KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
51403-60030 |
US $70.75 |
||
|
51404A
|
51404A
51403-60020 Brace Sub-Assy, Front Suspention Member, RhFRONT SUSPENTION MEMBER, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51403-60020 |
from US $67.12 |
||
|
51404A
|
51404A
51403-60030 Brace Sub-Assy, Front Suspention Member, RhFRONT SUSPENTION MEMBER, RH [06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX-L PACKAGE; KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
51403-60030 |
US $70.75 |
||
|
51419
|
51419
51419-60010 Bracket, Frame Apron SealFRAME APRON SEAL [06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX-L PACKAGE; KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
51419-60010 |
US $5.10 |
||
|
51427
|
51427
12311-31220 Reinforcement, Engine Front Mounting, Rh[10.2015 -] GRJ150,TRJ15# NO.2:REFER ILLUST. |
12311-31220 |
US $6.55 |
||
|
51427
|
51427
12312-31010 Reinforcement, Engine Front Mounting, Rh[10.2015 -] GRJ150,TRJ15# NO.1:REFER ILLUST. |
12312-31010 |
US $6.55 |
||
|
51427
|
51427
51427-35120 Reinforcement, Engine Front Mounting, Rh[06.2015 - 09.2015] GRJ150,TRJ15# NO.1:REFER ILLUST. |
51427-35120 |
US $7.43 |
||
|
51427
|
51427
51427-35140 Reinforcement, Engine Front Mounting, Rh[06.2015 - 09.2015] GRJ150,TRJ15# NO.2:REFER ILLUST. |
51427-35140 |
US $8.01 |
||
| replacement | |||||
|
51427
|
51427
12311-31220 Reinforcement, Engine Front Mounting, Rh[06.2015 - 09.2015] GRJ150,TRJ15# NO.2:REFER ILLUST. |
12311-31220 |
US $6.55 |
||
|
51428
|
51428
12315-31200 Reinforce, Engine Mounting, Rear[10.2015 -] GRJ150,TRJ15# |
12315-31200 |
US $6.55 |
||
|
51428
|
51428
51428-35090 Reinforce, Engine Mounting, Rear[06.2015 - 09.2015] GRJ150,TRJ15# |
51428-35090 |
US $8.44 |
||
| replacement | |||||
|
51428
|
51428
12315-31200 Reinforce, Engine Mounting, Rear[06.2015 - 09.2015] GRJ150,TRJ15# |
12315-31200 |
US $6.55 |
||
|
51501
|
51501
51501-60050 Support Sub-Assy, Suspension Arm, RhSUSPENSION ARM, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51501-60050 |
US $337.21 |
||
|
51502
|
51502
51502-60050 Support Sub-Assy, Suspension Arm, LhSUSPENSION ARM, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51502-60050 |
US $302.32 |
||
|
51503A
|
51503A
5150C-60030 Bracket Sub-Assy, Lower Control Link Support, RhLOWER CONTROL LINK SUPPORT, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
5150C-60030 |
US $34.73 |
||
|
51504
|
51504
5150D-60020 Bracket Sub-Assy, Lower Control Link Support, LhLOWER CONTROL LINK SUPPORT, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
5150D-60020 |
US $37.91 |
||
|
51505H
|
51505H
51505-60050 Bracket Sub-Assy, Front Stabilizer, RhFRONT STABILIZER, RH [06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GDJ150..6FC VX-L PACKAGE; GDJ150..6FC VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS); GRJ150,KDJ150..ARL,GEN STAB |
51505-60050 |
US $46.16 |
||
|
51506H
|
51506H
51506-60090 Bracket Sub-Assy, Front Stabilizer, Lh[06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GDJ150..6FC VX-L PACKAGE; GDJ150..6FC VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS); GRJ150,KDJ150..ARL,GEN STAB |
51506-60090 |
US $96.10 |
||
|
51593A
|
51593A
51593-35030 Bracket, Rear Spring Bumper, Rh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51593-35030 |
US $17.64 |
||
|
51594
|
51594
51594-35030 Bracket, Rear Spring Bumper, Lh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51594-35030 |
US $17.64 |
||
|
51701
|
51701
51701-60130 Bracket Sub-Assy, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51701-60130 |
from US $24.02 |
||
|
51702
|
51702
51701-60130 Bracket Sub-Assy, Cab Mounting, No.1 RhCAB MOUNTING, NO.1 RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51701-60130 |
from US $24.02 |
||
|
51703
|
51703
51703-60110 Bracket Sub-Assy, Cab Mounting, No.2, Rh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51703-60110 |
from US $62.03 |
||
|
51704
|
51704
51704-60100 Bracket Sub-Assy, Cab Mounting, No.2 LhCAB MOUNTING, NO.2 LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51704-60100 |
US $66.92 |
||
|
51707C
|
51707C
51707-60110 Bracket Sub-Assy, Cab Mounting, No.4 RhCAB MOUNTING, NO.4 RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51707-60110 |
US $37.13 |
||
|
51708A
|
51708A
51708-60090 Bracket Sub-Assy, Cab Mounting, No.4 LhCAB MOUNTING, NO.4 LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51708-60090 |
US $37.13 |
||
|
51709A
|
51709A
51709-35040 Bracket Sub-Assy, Body Rear End Mounting[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51709-35040 |
from US $72.74 |
||
|
51709B
|
51709B
51706-35060 Bracket Sub-Assy, Cab Mounting, No.3[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
51706-35060 |
from US $59.07 |
||
|
51949B
|
51949B
51099-60040 Crossmember, Spare Wheel CarrierSPARE WHEEL CARRIER [06.2015 -] GRJ150,KDJ150,TRJ150..GCC; GDJ150..6FC VX PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GDJ150..6FC VX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GDJ150..6FC TX-L PACKAGE&SPARE TIRE-WITH(UNDER FRAME); GRJ150,KDJ150..ARL,GEN STABILIZER-WITH(KDSS)&SPARE TI |
51099-60040 |
from US $133.95 |
||
|
57683C
|
57683C
57683-35031 Bracket, Fuel Tank Mounting[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
57683-35031 |
US $16.13 |
||
|
77512A
|
77512A
77512-35121 Bracket, Fuel Tank, Rear[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ150 |
77512-35121 |
US $21.84 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
91674J1020
|
91674J1020
91674-J1020 BOLT FLANGE |
91674-J1020 |
from US $0.90 |
||
|
1757667050
|
1757667050
17576-67050
Bracket, Muffler Clamp
|
17576-67050 |
— | ||
|
9167480822
|
9167480822
91674-80822 BOLT FLANGE |
91674-80822 |
from US $0.80 |
||
|
9167480828
|
9167480828
91674-80828 BOLT, FLANGE |
91674-80828 |
US $1.97 |
||
|
9167481235
|
9167481235
91674-81235 BOLT FLANGE |
91674-81235 |
from US $1.54 |
||
