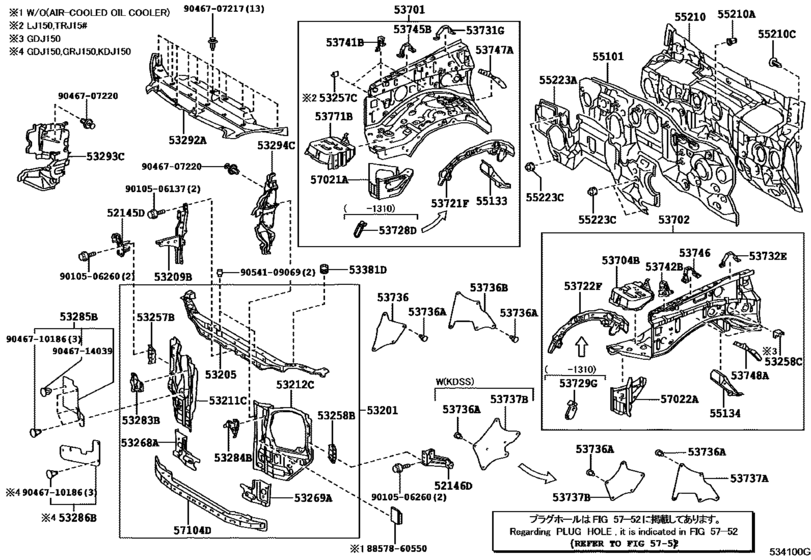

Front Fender Apron & Dash Panel ([08.2013 - ] (1308- )) Diagram Toyota LAND CRUISER PRADO
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- GRJ150
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- LAND CRUISER PRADO 150
- From
- 06.2015
- Gear Shift Type
- 6FC
- No.of Doors
- 5D
- Vehicle Model
- Land Cruiser Prado
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52145D
|
52145D
53803-60080 Bracket, Front Bumper Side Mounting, RhFRONT BUMPER SIDE MOUNTING, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53803-60080 |
US $38.30 |
||
|
52146D
|
52146D
53804-60060 Bracket, Front Bumper Side Mounting, LhFRONT BUMPER SIDE MOUNTING, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53804-60060 |
from US $26.62 |
||
|
53201
|
53201
53201-60171 Support Sub-Assy, Radiator[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53201-60171 |
from US $326.63 |
||
|
53205
|
53205
53205-60070 Support Sub-Assy, Radiator, UpperRADIATOR, UPPER [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53205-60070 |
from US $78.62 |
||
|
53209B
|
53209B
53209-60150 Brace Sub-Assy, Hood Lock Support[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53209-60150 |
US $29.38 |
||
|
53211C
|
53211C
53211-60242 Support, Radiator, Rh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53211-60242 |
from US $60.52 |
||
|
53212C
|
53212C
53212-60202 Support, Radiator, Lh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53212-60202 |
from US $73.85 |
||
|
53257B
|
53257B
53257-60070 Bracket, Radiator Support To Front FenderRADIATOR SUPPORT TO FRONT FENDER [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53257-60070 |
from US $12.66 |
||
|
53258B
|
53258B
53257-60070 Bracket, Radiator Support To Front FenderRADIATOR SUPPORT TO FRONT FENDER [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53257-60070 |
from US $12.66 |
||
|
53268A
|
53268A
53268-35040 Reinforcement, Radiator Mounting, Rh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53268-35040 |
US $23 |
||
|
53269A
|
53269A
53269-35040 Reinforcement, Radiator Mounting, Lh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53269-35040 |
US $23 |
||
|
53283B
|
53283B
53283-60050 Reinforcement, Front Body Mounting, No.2 RhFRONT BODY MOUNTING, NO.2 RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53283-60050 |
from US $6.84 |
||
|
53284B
|
53284B
53284-60010 Reinforcement, Front Body Mounting, No.2 LhFRONT BODY MOUNTING, NO.2 LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53284-60010 |
US $6.84 |
||
|
53285B
|
53285B
53285-60140 Seal, Radiator Side Air, No.1RADIATOR SIDE AIR, NO.1 [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53285-60140 |
from US $24.92 |
||
|
53286B
|
53286B
53286-60110 Seal, Radiator Side Air, No.2RADIATOR SIDE AIR, NO.2 [06.2015 -] GDJ150,GRJ150,KDJ150 |
53286-60110 |
US $17.81 |
||
|
53292A
|
53292A
53292-60110 Seal, Radiator Support, Upper[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53292-60110 |
from US $65.56 |
||
|
53293C
|
53293C
53293-60160 Deflector, Radiator Side, Rh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53293-60160 |
from US $51.75 |
||
|
53294C
|
53294C
53294-60160 Deflector, Radiator Side, Lh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53294-60160 |
from US $53.66 |
||
|
53381D
|
53381D
90541-15004 Cushion, Hood Bumper[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
90541-15004 |
from US $2.76 |
||
|
53701
|
53701
53701-60F41 Apron Sub-Assy, Front Fender, Rh[06.2015 -] GRJ150,KDJ150 |
53701-60F41 |
US $330.51 |
||
|
53702
|
53702
53702-60B50 Apron Sub-Assy, Front Fender, Lh[06.2015 -] GRJ150,KDJ150,LJ150,TRJ15# |
53702-60B50 |
US $330.51 |
||
|
53704B
|
53704B
53704-60050 Support Sub-Assy, Battery, Lh[06.2015 - 05.2017] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53704-60050 |
US $36.84 |
||
|
53721F
|
53721F
53721-60030 Apron, Front Fender, No.1 Rh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53721-60030 |
US $33.49 |
||
|
53722F
|
53722F
53722-60020 Apron, Front Fender, No.1 Lh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53722-60020 |
US $33.49 |
||
|
53731G
|
53731G
53731-60080 Reinforcement, Front Fender Apron, RhFRONT FENDER APRON, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53731-60080 |
US $5.36 |
||
|
53732E
|
53732E
53732-60070 Reinforcement, Front Fender Apron, LhFRONT FENDER APRON, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53732-60070 |
US $5.37 |
||
|
53736
|
53736
53735-35150
Seal, Front Fender Apron, Upper
[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53735-35150 |
— | ||
| replacement | |||||
|
53736
|
53736
53735-35151 Seal, Front Fender Apron, Upper[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53735-35151 |
from US $14.43 |
||
|
53736A
|
53736A
90467-10186 Clip(For Front Fender Apron Seal)[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
90467-10186 |
from US $1.33 |
||
|
53736B
|
53736B
53885-60030 Seal, Front Fender Apron To Frame, No.1 RhFRONT FENDER APRON TO FRAME, NO.1 RH [06.2015 -] GRJ150,TRJ15# |
53885-60030 |
from US $16.50 |
||
|
53737A
|
53737A
53885-60030 Seal, Front Fender Apron To Frame, No.1 RhFRONT FENDER APRON TO FRAME, NO.1 RH [06.2015 -] GRJ150 |
53885-60030 |
from US $16.50 |
||
|
53737B
|
53737B
53736-35150
Seal, Fender Apron
[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53736-35150 |
— | ||
| replacement | |||||
|
53737B
|
53737B
53736-35151 Seal, Fender Apron[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53736-35151 |
from US $17.75 |
||
|
53737B
|
53737B
53736-60130 Seal, Front Fender Apron, LhFRONT FENDER APRON, LH [06.2015 -] GDJ150..6FC VX PACKAGE; GDJ150..6FC VX-L PACKAGE; KDJ150;GRJ150..6FC;GRJ150..6F..GEN STABILIZER-WITH(KDSS) |
53736-60130 |
US $15.03 |
||
|
53741B
|
53741B
53741-60010 Plate, Fender Apron Reinforce, RhFENDER APRON REINFORCE, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53741-60010 |
US $7.03 |
||
|
53742B
|
53742B
53742-60010 Plate, Fender Apron Reinforce, LhFENDER APRON REINFORCE, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53742-60010 |
US $6.84 |
||
|
53745B
|
53745B
53745-60050 Reinforcement, Front Fender Apron, Rear RhFRONT FENDER APRON, REAR RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53745-60050 |
US $6.29 |
||
|
53746
|
53746
53746-60060 Reinforcement, Front Fender Apron, Rear LhFRONT FENDER APRON, REAR LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53746-60060 |
US $6.19 |
||
|
53747A
|
53747A
53747-60020 Extension, Apron Fender Side, RhAPRON FENDER SIDE, RH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53747-60020 |
from US $6.70 |
||
|
53748A
|
53748A
53748-60010 Extension, Apron Fender Side, LhAPRON FENDER SIDE, LH [06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
53748-60010 |
US $6.70 |
||
|
53771B
|
53771B
53703-60061
Support, Battery Carrier, Rh
[06.2015 - 05.2017] GRJ150,KDJ150,LJ150,TRJ15# |
53703-60061 |
— | ||
|
55101
|
55101
55101-60G90
Panel Sub-Assy, Dash
[06.2015 -] GRJ150,KDJ150,TRJ15#..LHD..ATM |
55101-60G90 |
— | ||
|
55133
|
55133
55133-60060 Plate, Front Fender Apron Set, Lower Rh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
55133-60060 |
US $10.32 |
||
|
55134
|
55134
55134-60070 Plate, Front Fender Apron Set, Lower Lh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
55134-60070 |
US $15.77 |
||
|
55210
|
55210
55210-60300
Insulator Assy, Dash Panel
[06.2015 -] GRJ150,LJ150,TRJ15#..LHD |
55210-60300 |
— | ||
|
55210A
|
55210A
90467-06155 Clip[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
90467-06155 |
from US $0.74 |
||
|
55210C
|
55210C
90467-08186-C0 Clip(For Front Bumper), No.1[06.2015 - 10.2016] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# BLACK |
90467-08186-C0 |
from US $0.90 |
||
|
55210C
|
55210C
90467-08186-C3 Clip(For Front Bumper), No.1[10.2016 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# BLACK |
90467-08186-C3 |
from US $0.78 |
||
|
55223A
|
55223A
55223-60440
Insulator, Dash Panel, Outer
[06.2015 - 12.2015] GRJ150,LJ150,TRJ15#..LHD |
55223-60440 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-60441 Insulator, Dash Panel, Outer[06.2015 - 12.2015] GRJ150,LJ150,TRJ15#..LHD |
55223-60441 |
US $135.45 |
||
|
55223A
|
55223A
55223-60441 Insulator, Dash Panel, Outer[01.2016 -] GRJ150,LJ150,TRJ15#..LHD |
55223-60441 |
US $135.45 |
||
|
55223C
|
55223C
90467-06206-C0 Clip, Rear Bumper Side[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# BLACK |
90467-06206-C0 |
from US $0.82 |
||
|
57021A
|
57021A
57021-35060 Bracket Sub-Assy, Body Mounting, No.1 Rh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
57021-35060 |
US $49.38 |
||
|
57022A
|
57022A
57022-35050 Bracket Sub-Assy, Body Mounting, No.1 Lh[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
57022-35050 |
from US $70.26 |
||
|
57104D
|
57104D
57104-35061 Member Sub-Assy, Front Cross[06.2015 -] GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
57104-35061 |
from US $89.97 |
||
|
8857860550
|
8857860550
88578-60550
Packing, Cooler Pipe, No.1
|
88578-60550 |
— | ||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.84 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.66 |
||
|
9046707217
|
9046707217
90467-07217 Clip, Radiator Support To Frame Seal |
90467-07217 |
from US $0.80 |
||
|
9046707220
|
9046707220
90467-07220 Clip |
90467-07220 |
from US $0.80 |
||
|
9046710186
|
9046710186
90467-10186 Clip(For Front Fender Apron Seal) |
90467-10186 |
from US $1.33 |
||
|
9046714039
|
9046714039
90467-14039 New Genuine Part |
90467-14039 |
US $1.51 |
||
|
9054109069
|
9054109069
90541-09069 Cushion, Hood Bumper |
90541-09069 |
from US $2.22 |
||
